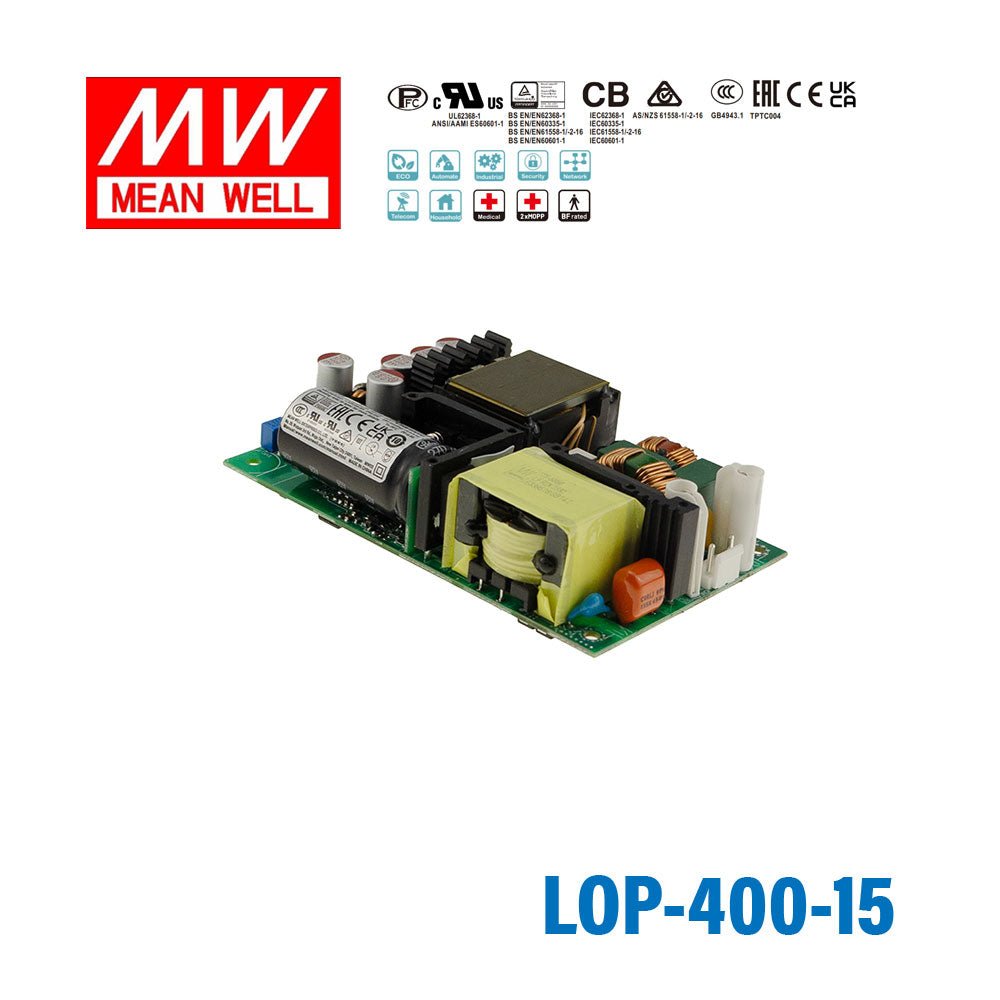

Mean Well LOP-400-15 400W 5"×3" Low Profile Open Frame Power Supply 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-400-15 400W 5"×3" Low Profile Open Frame Po...
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile (27.5mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓250W convection, 400W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating400 Watt
-
Output Voltage15 Volt
-
Rated Current16.7 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.08 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well LOP-400-15 provide?
The LOP-400-15 is a 400W open frame AC-DC power supply with a 15V DC output. It is rated for up to 16.7A output current. This makes it suitable for applications that need a higher-current 15V supply in a compact form factor.
How compact is the LOP-400-15 for space-constrained equipment?
This model uses a 5 x 3 inch footprint and has a low profile height of 27.5mm. The listed dimensions are 127 x 76.2 x 27.5mm. Its compact size is a key advantage for OEM equipment and other designs where internal space is limited.
What kinds of applications is the LOP-400-15 designed for?
The LOP-400-15 is designed for use across multiple fields, including ITE, medical, household, and industrial applications. Its certifications include IEC/EN/UL 62368-1, IEC60601-1, IEC60335-1, and IEC61558-1/-2-16. That broad certification profile makes it a strong fit for B2B product development across several regulated equipment categories.
Can the Mean Well LOP-400-15 operate in demanding temperature conditions?
Yes. This power supply is specified for operation from -40C to +80C, with derating referenced by the manufacturer. It is intended for wide-range operating environments where standard indoor-only temperature ranges may not be sufficient.
Does the LOP-400-15 support convection and forced-air cooling use cases?
Yes. Mean Well rates this series at 250W under convection cooling and up to 400W with 23CFM forced-air cooling. It also includes a built-in 12V/0.5A output for an external fan, which supports designs that require higher output power with active cooling.
What protection and safety features are included in the LOP-400-15?
The LOP-400-15 includes short circuit, overload, over voltage, and over temperature protection. It also features low leakage current, 2 x MOPP, and suitability for BF medical applications. These characteristics make it useful for equipment designers who need a compact supply with a strong safety profile.
Other LOP-400 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-400-54 400W 5"×3" Low Profile Open Frame Power Supply 54V | 400W | 54V | 4.75A | Indoor | $109.17 | View |
| Mean Well LOP-400-48 400W 5"×3" Low Profile Open Frame Power Supply 48V | 400W | 48V | 5.3A | Indoor | $109.17 | View |
| Mean Well LOP-400-36 400W 5"×3" Low Profile Open Frame Power Supply 36V | 400W | 36V | 7.1A | Indoor | $109.17 | View |
| Mean Well LOP-400-27 400W 5"×3" Low Profile Open Frame Power Supply 27V | 400W | 27V | 9.3A | Indoor | $109.17 | View |
| Mean Well LOP-400-24 400W 5"×3" Low Profile Open Frame Power Supply 24V | 400W | 24V | 10.5A | Indoor | $109.17 | View |
| Mean Well LOP-400-18 400W 5"×3" Low Profile Open Frame Power Supply 18V | 400W | 18V | 13.9A | Indoor | $109.17 | View |
| Mean Well LOP-400-12 400W 5"×3" Low Profile Open Frame Power Supply 12V | 400W | 12V | 20.8A | Indoor | $109.17 | View |
