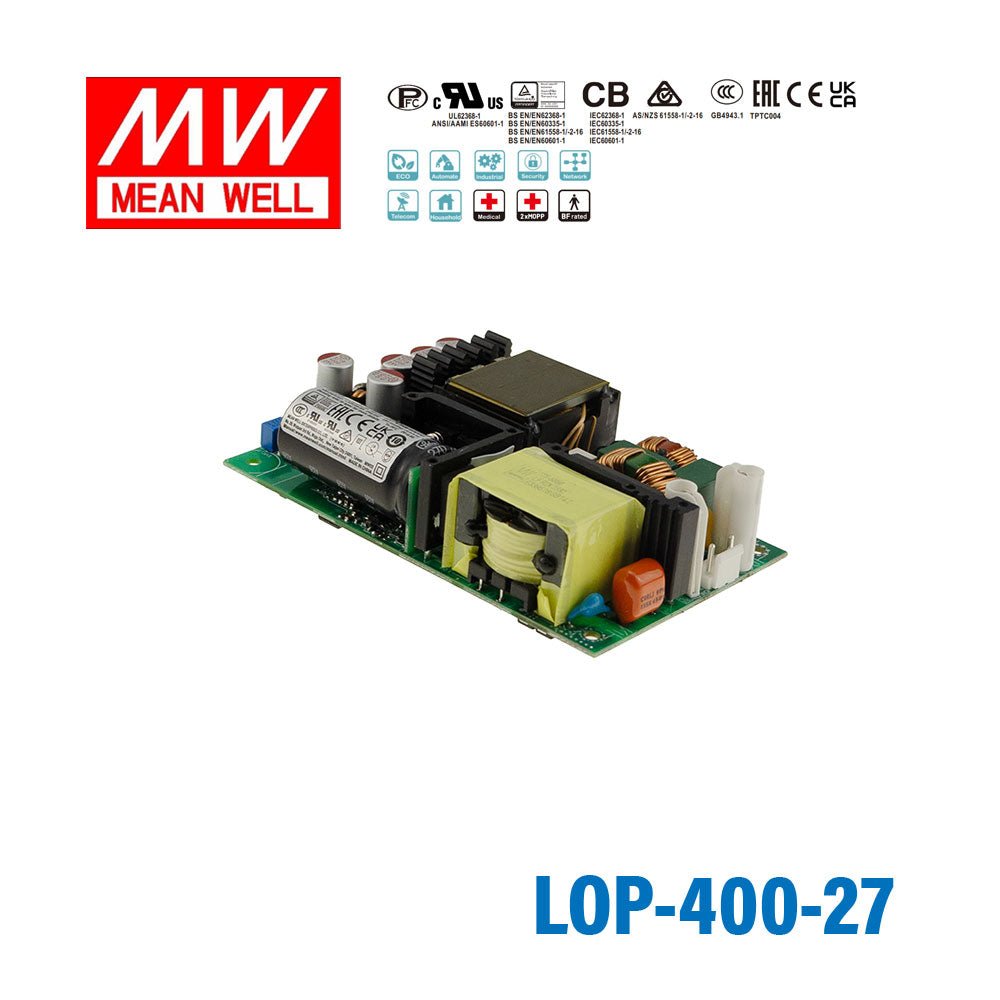

Mean Well LOP-400-27 400W 5"×3" Low Profile Open Frame Power Supply 27V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-400-27 400W 5"×3" Low Profile Open Frame Po...
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓5"x3" compact size with low profile (27.5mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields
- ✓150% peak load @ 3s
- ✓250W convection, 400W with FAN 23CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 95%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating400 Watt
-
Output Voltage27 Volt
-
Rated Current9.3 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.08 in
-
Weight0.86 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of power supply is the Mean Well LOP-400-27?
The Mean Well LOP-400-27 is a 400W low profile open frame AC/DC power supply. It provides a 27V DC output and is built in a compact 5 x 3 inch form factor with a 27.5mm height. This model is intended for embedded OEM and industrial-style equipment where space is limited.
What input range does the LOP-400-27 support?
This model accepts a wide 80 to 264VAC input range and also supports 113 to 370VDC input. It includes active power factor correction, with power factor listed above 0.95 at 230VAC and above 0.98 at 115VAC at full load. That broad input range makes it suitable for equipment intended for global markets.
How much power can the LOP-400-27 deliver under different cooling conditions?
The LOP-400-27 is rated for up to 400W when used with 23CFM forced-air cooling. Under convection cooling, the product description lists 250W output. It also supports 150% peak load for up to 3 seconds, which can help with short-duration load surges.
Is the LOP-400-27 suitable for medical or safety-critical equipment designs?
This model includes IEC60601-1 and ANSI/AAMI ES60601-1 approvals and is described as having 2 x MOPP with extremely low leakage current. The product description also states it is suitable for BF medical applications. Buyers should still confirm the full end-equipment compliance requirements for their specific device.
What protections are included in the Mean Well LOP-400-27?
The LOP-400-27 includes short circuit, overload, over voltage, and over temperature protection. Overload protection is specified at 105 to 150% of rated output power with hiccup behavior after 3 seconds and automatic recovery after the fault is removed. Over-voltage and over-temperature protection use shutdown behavior, with recovery depending on conditions described in the specification.
Can the LOP-400-27 operate in harsh temperature or high-altitude environments?
This power supply is rated for operation from -40C to +80C, with derating referenced in the product data. The description also lists operating altitude up to 5000 meters. Those ratings make it a strong candidate for demanding industrial and enclosed equipment environments, subject to overall system thermal design.
What certifications and standards does the LOP-400-27 support?
The listed safety standards include IEC62368-1, IEC60335-1, IEC61558-1/-2-16, and IEC60601-1, along with approvals from TUV, UL, CCC, RCM, and EAC. The product description highlights use across ITE, medical, household, and industrial categories. This broad certification profile can simplify sourcing for manufacturers serving multiple regulated markets.
Other LOP-400 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-400-54 400W 5"×3" Low Profile Open Frame Power Supply 54V | 400W | 54V | 4.75A | Indoor | $109.17 | View |
| Mean Well LOP-400-48 400W 5"×3" Low Profile Open Frame Power Supply 48V | 400W | 48V | 5.3A | Indoor | $109.17 | View |
| Mean Well LOP-400-36 400W 5"×3" Low Profile Open Frame Power Supply 36V | 400W | 36V | 7.1A | Indoor | $109.17 | View |
| Mean Well LOP-400-24 400W 5"×3" Low Profile Open Frame Power Supply 24V | 400W | 24V | 10.5A | Indoor | $109.17 | View |
| Mean Well LOP-400-18 400W 5"×3" Low Profile Open Frame Power Supply 18V | 400W | 18V | 13.9A | Indoor | $109.17 | View |
| Mean Well LOP-400-15 400W 5"×3" Low Profile Open Frame Power Supply 15V | 400W | 15V | 16.7A | Indoor | $109.17 | View |
| Mean Well LOP-400-12 400W 5"×3" Low Profile Open Frame Power Supply 12V | 400W | 12V | 20.8A | Indoor | $109.17 | View |
