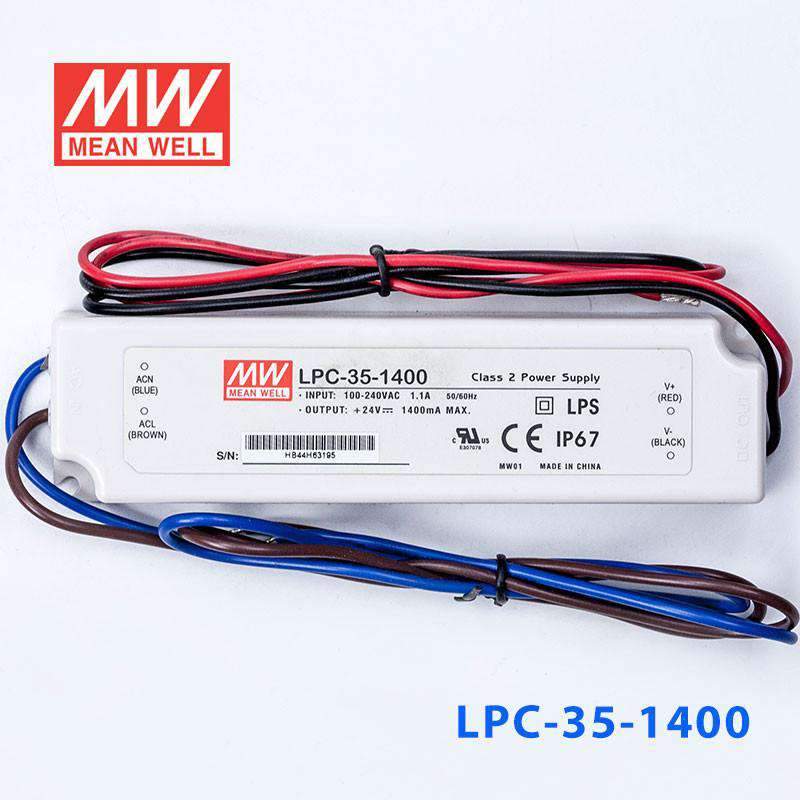

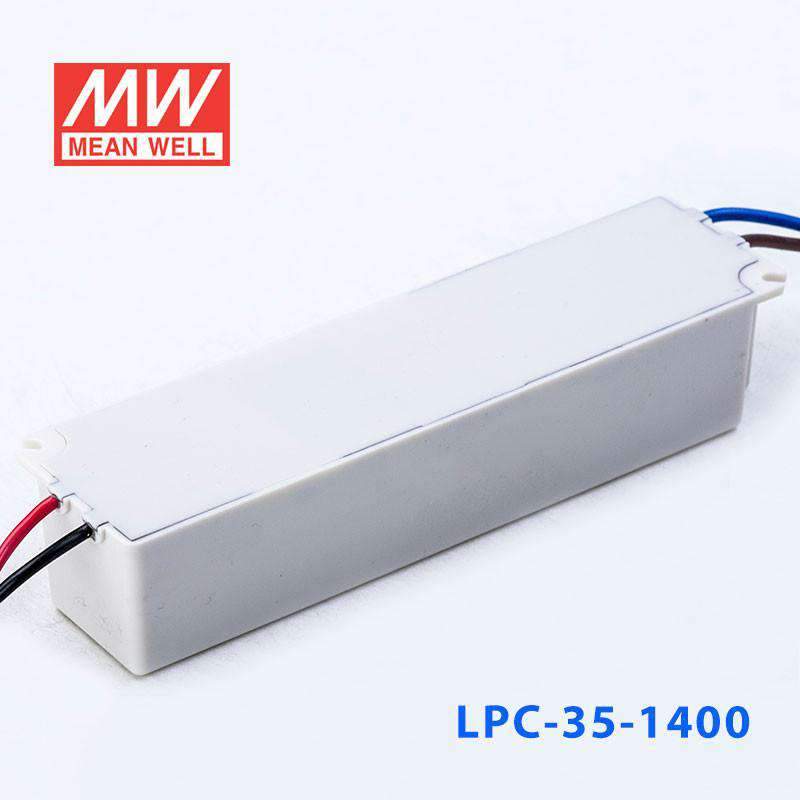

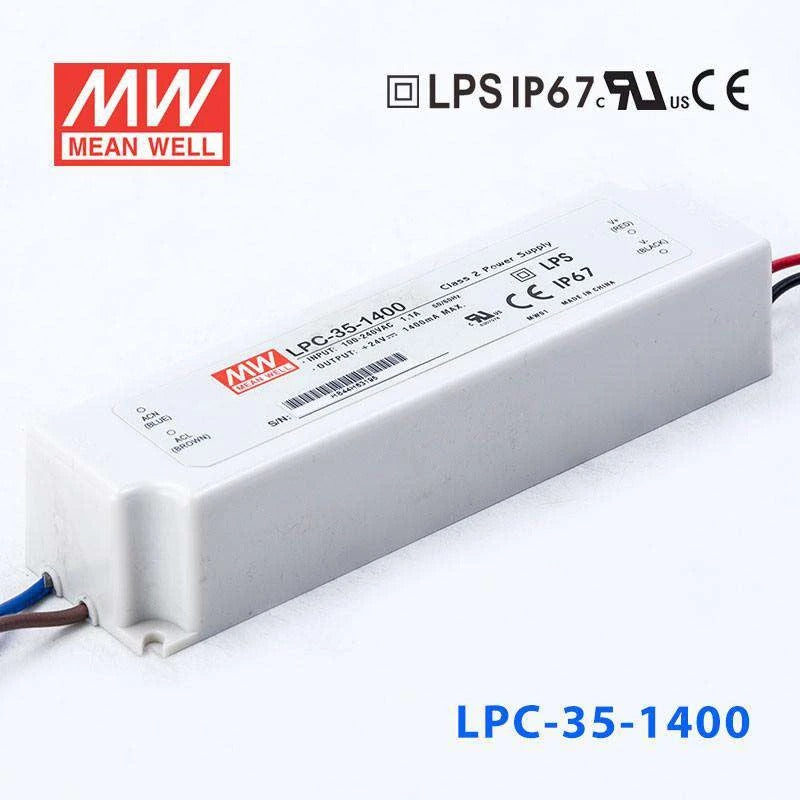

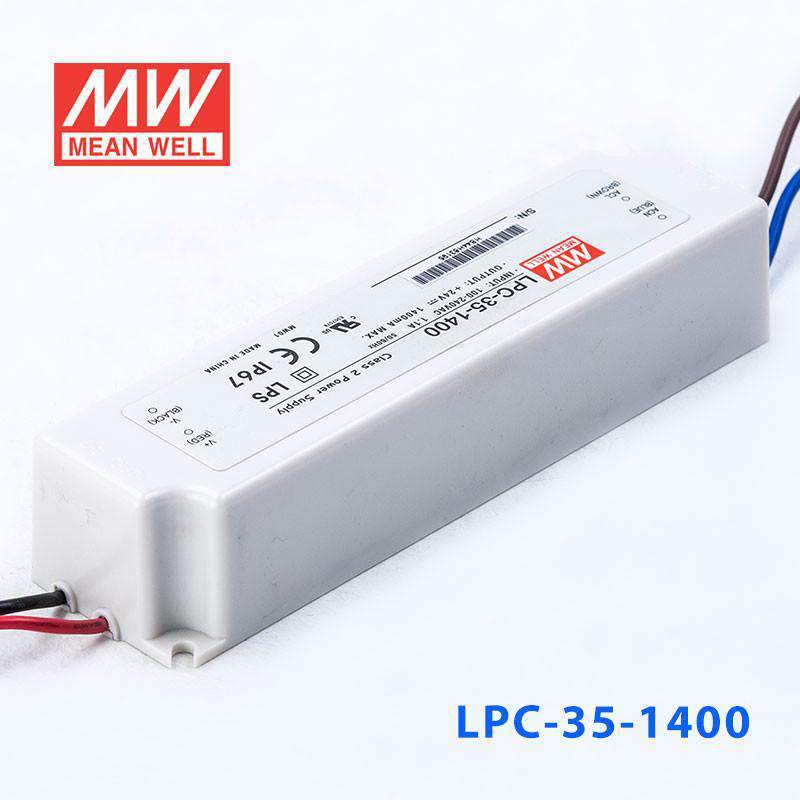

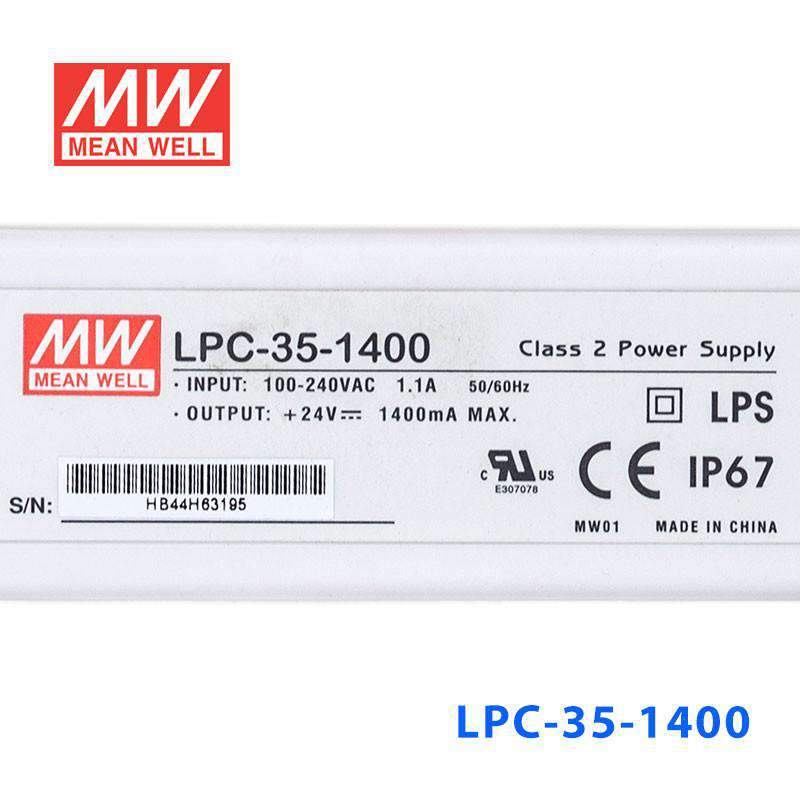

Mean Well LPC-35-1400 Power Supply 35W 1400mA

slim plastic case, economical, IP67

SKU:

LPC-35-1400

Model

35W 1400MA

$16.06 USD

SKU: LPC-35-1400

60W 1400MA

$16.22 USD

SKU: LPC-60-1400

Product variants

$16.06 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

90~264VAC input

Fully encapsulated with IP67 level

Protections: Short circuit / Over voltage

Constant current design (C.C. mode)

Withstand 300VAC surge input for 5 seconds

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays

2 years warranty

General Specification¬†

AC input voltage range	90~264VAC
AC inrush current	Cold start, 55A at 230VAC
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input	UL rated, 18AWGx2C (60cm)
Connection Output	UL rated, 16AWGx2C (60cm)
Dimension (LxWxH)(mm)	148x 40x 30

Specifications

Brand

Mean Well
Series

LPC Series
Power Rating

33.6 Watt
Output Voltage

24 Volt
Rated Current

1.4 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

5.83 in
Width

1.57 in
Height

1.18 in
Weight

0.75 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPC-35-1400 for a high-current LED downlight?

This driver can fit a LED downlight when the LED engine is specified for 1400mA constant current and the total forward voltage remains within 9-24V. Its 33.6W output suits compact but higher-current downlight assemblies. Because it is a constant current model, it should not be substituted for a constant voltage supply.

Is the LPC-35-1400 suitable for small high-output signage modules?

It can be suitable for small high-output signage modules if the LED load requires 1400mA constant current and falls in the 9-24V CC range. The lower maximum voltage means it is intended for lower-voltage assemblies than some other siblings. It should only be used with constant current LED modules.

Can this driver power a compact LED array that needs more drive current?

Yes, if the compact LED array is designed for 1400mA constant current and its total forward voltage is between 9V and 24V. The 33.6W rating makes it appropriate for higher-current small arrays that stay within that narrower voltage window. Loads designed for constant voltage input are not a match.

How do I know whether my LEDs will work with the LPC-35-1400?

The LED load must require 1400mA constant current, and its combined forward voltage must fit inside the 9-24V constant current range. The number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count that applies to every build. Selection should be based on the total load voltage and current requirement together.

How does the LPC-35-1400 compare with the other LPC-35 current options?

The LPC-35-700 is 700mA with a 9-48V CC range and 33.6W, the LPC-35-1050 is 1050mA with a 9-30V range and 31.5W, and the LPC-35-1400 is 1400mA with a 9-24V range and 33.6W. The family differences are mainly output current and how much constant current voltage range is available. Higher current versions in this group operate over lower voltage ranges.

Is the LPC-35-1400 appropriate for outdoor or damp conditions?

It is rated IP67 waterproof, which supports use where water and dust resistance are required. The specified operating temperature range is -30°C to +70°C, so it is built for a broad range of environmental conditions. That makes it suitable for tougher indoor or outdoor service environments within those ratings.
