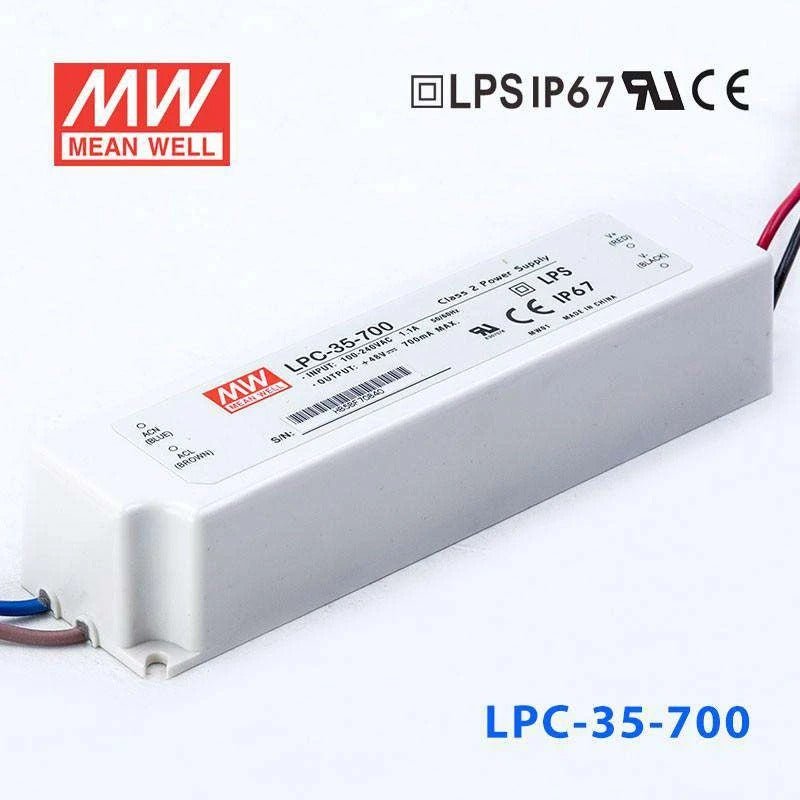

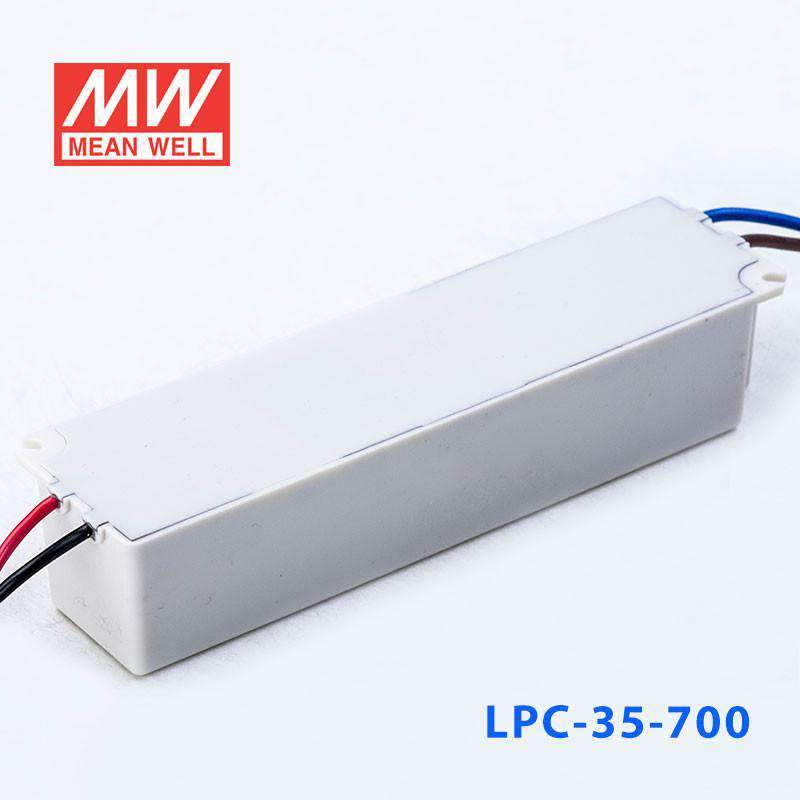

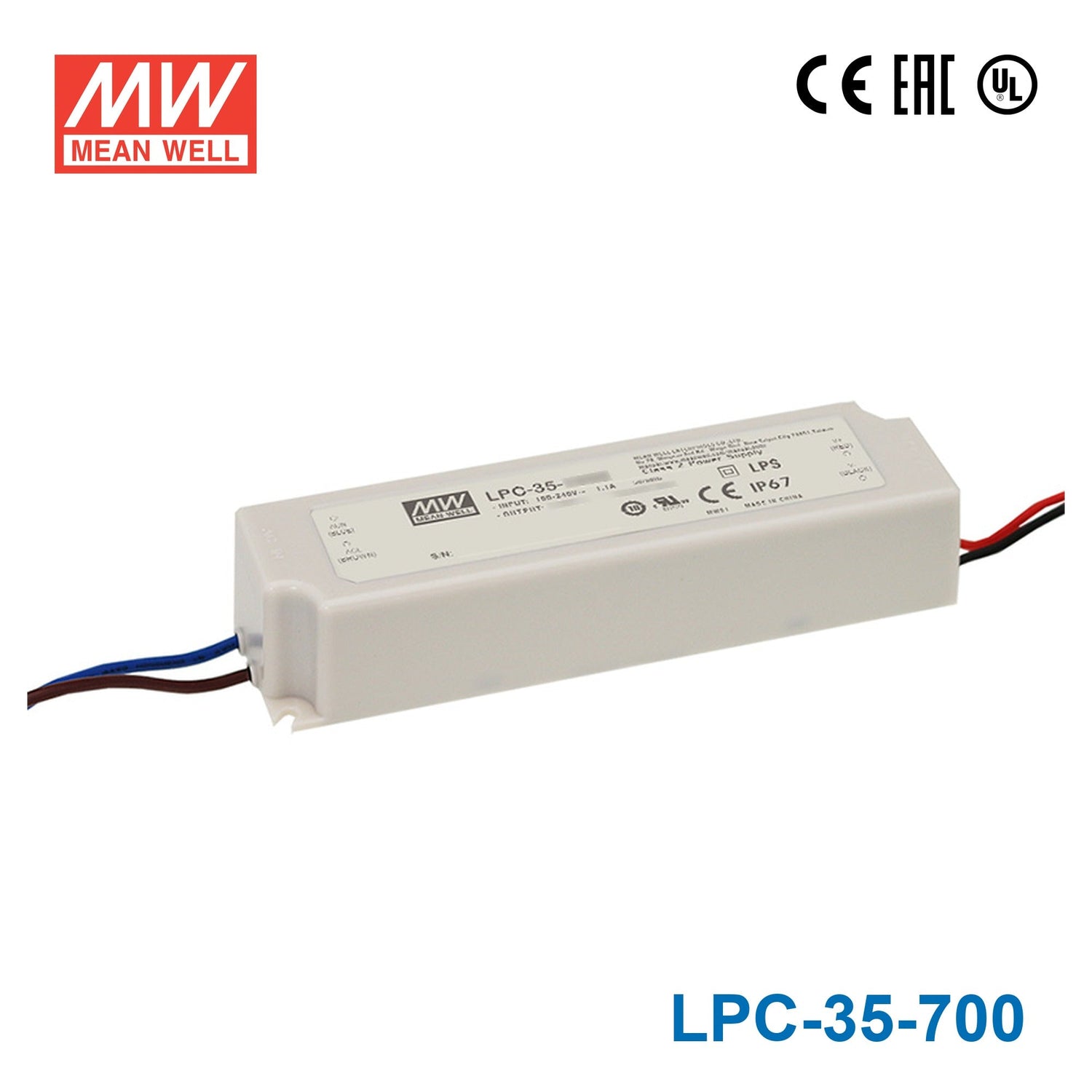

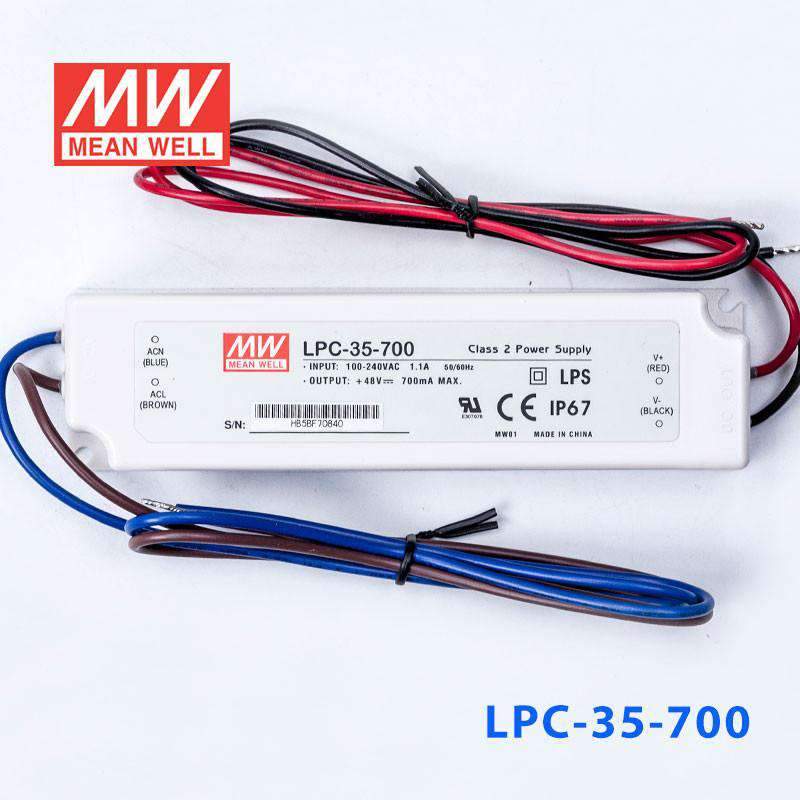

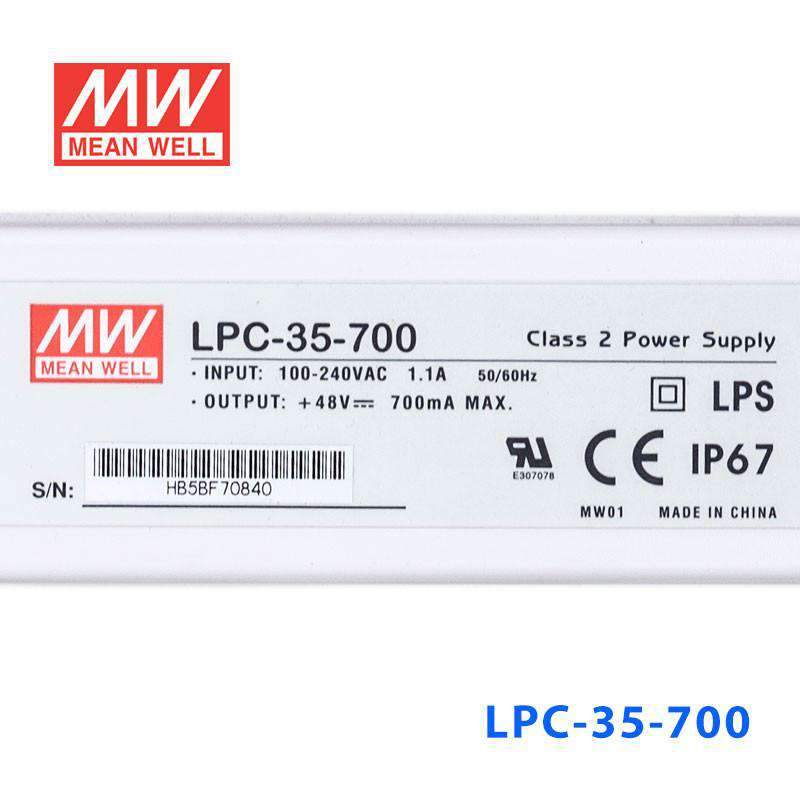

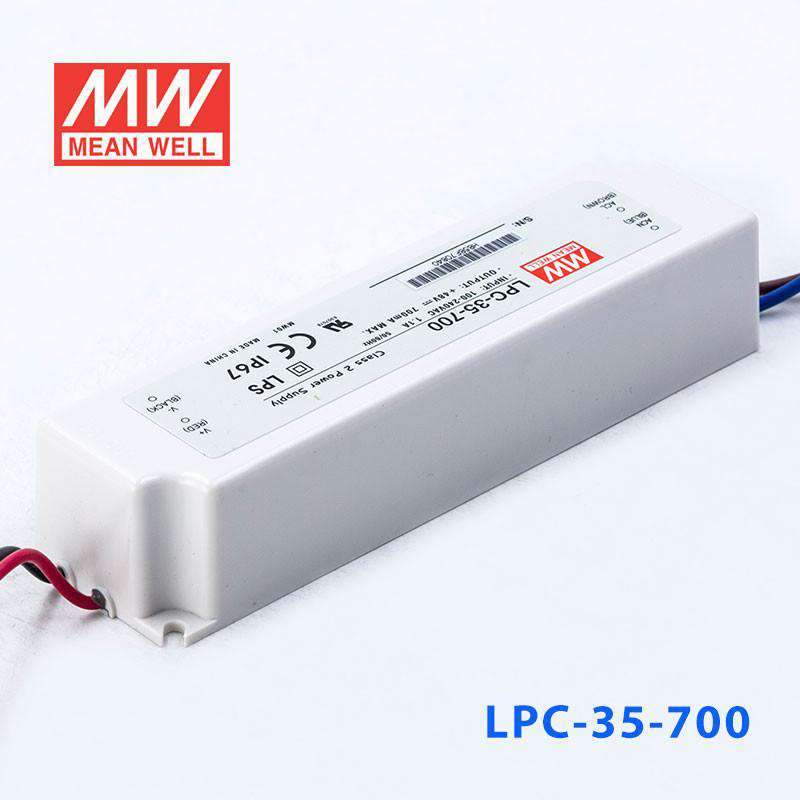

Mean Well LPC-35-700 Power Supply 35W 700mA
Description
Description
Features
| 90~264VAC input |
| Fully encapsulated with IP67 level |
| Protections: Short circuit / Over voltage |
| Constant current design (C.C. mode) |
| Withstand 300VAC surge input for 5 seconds |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC |
| AC inrush current | Cold start, 55A at 230VAC |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | LPC-20: UL1310, UL879, TUV EN60950-1 approved, LPC-35/60: UL1310 approved, LPC-150: Design refer to IEC60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, 18AWGx2C (60cm) |
| Connection Output | UL rated, 16AWGx2C (60cm) |
| Dimension (LxWxH)(mm) | 148x 40x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating33.6 Watt
-
Output Voltage48 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.18 in
-
Weight0.75 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-35-700 for a 700mA LED downlight?
Yes, this driver is designed for constant current LED loads at 700mA. It is a fit for LED downlights that need 700mA and operate within the 9-48V constant current range, with total load power up to 33.6W.
Is the LPC-35-700 suitable for LED signage modules?
It can be suitable for signage modules if the module string is a constant current 700mA load and falls within the 9-48V CC output range. With an IP67 enclosure and 33.6W output, it is better suited to sealed or exposed signage environments than a non-waterproof indoor-only driver.
Can the LPC-35-700 run a small LED array?
Yes, if the LED array is designed for constant current operation at 700mA. The array's total forward voltage must stay within 9-48V and the total power must remain within 33.6W.
Will the LPC-35-700 work with my LEDs if I do not know the LED count yet?
This depends on the LED string's total forward voltage, not a fixed LED count. The driver supplies 700mA constant current across 9-48V, so the number of LEDs will vary based on each LED's forward voltage; it is not intended for constant voltage LED loads.
Is the LPC-35-700 okay for outdoor or harsh environments?
It is rated IP67 and has an operating temperature range of -30°C to +70°C, so it is suitable for wet or dusty environments when the rest of the fixture is rated appropriately. Those specs make it more appropriate for exposed conditions than an indoor-only driver.
