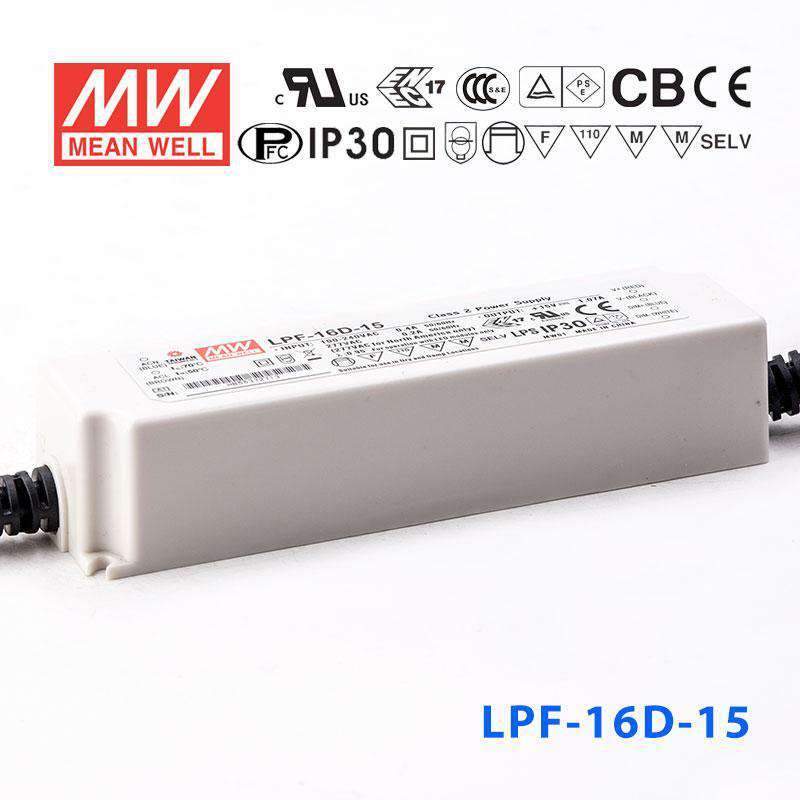

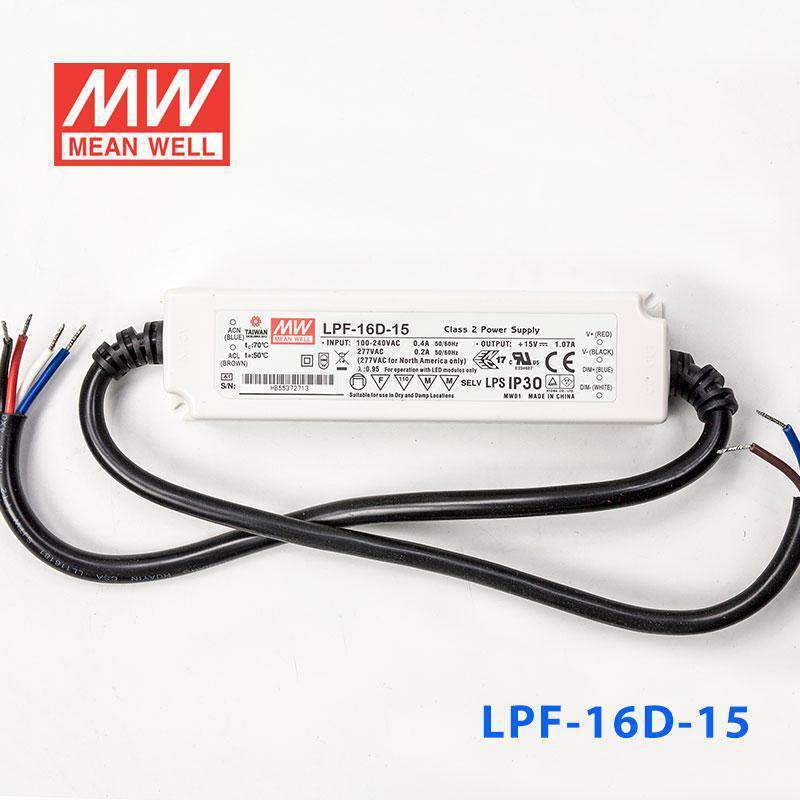

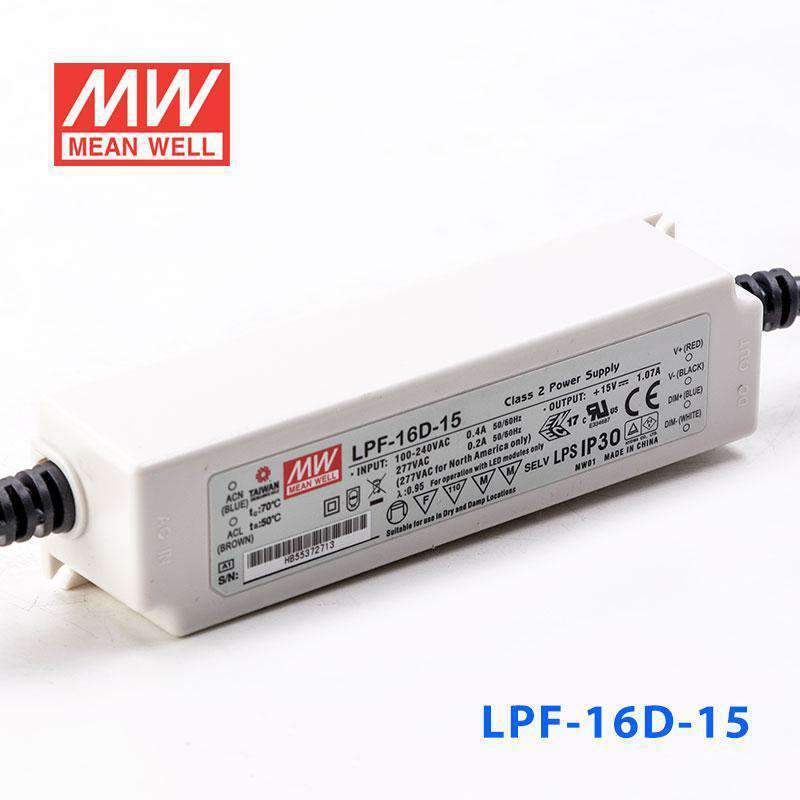

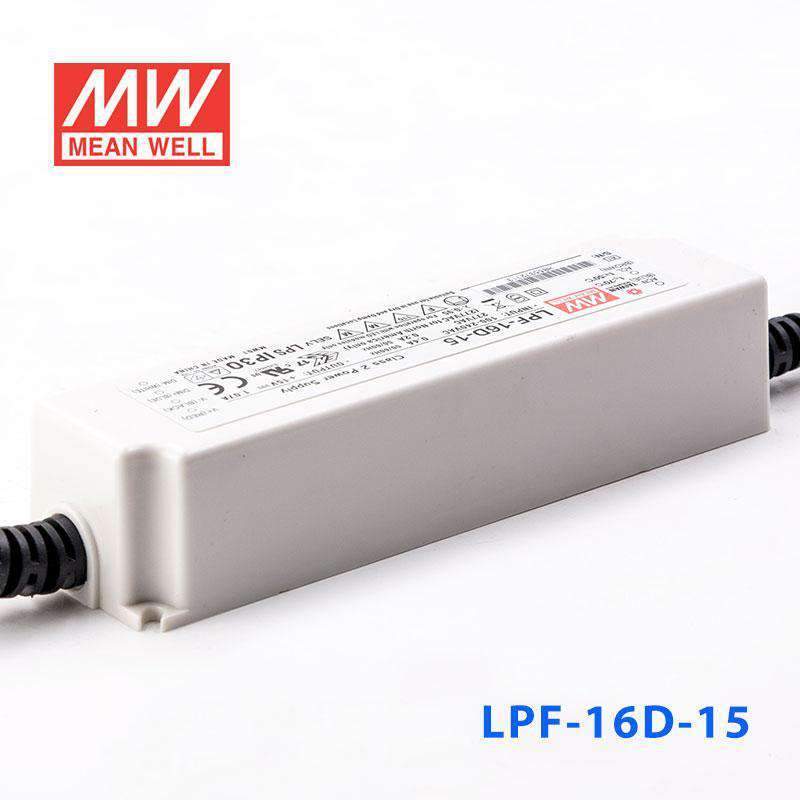

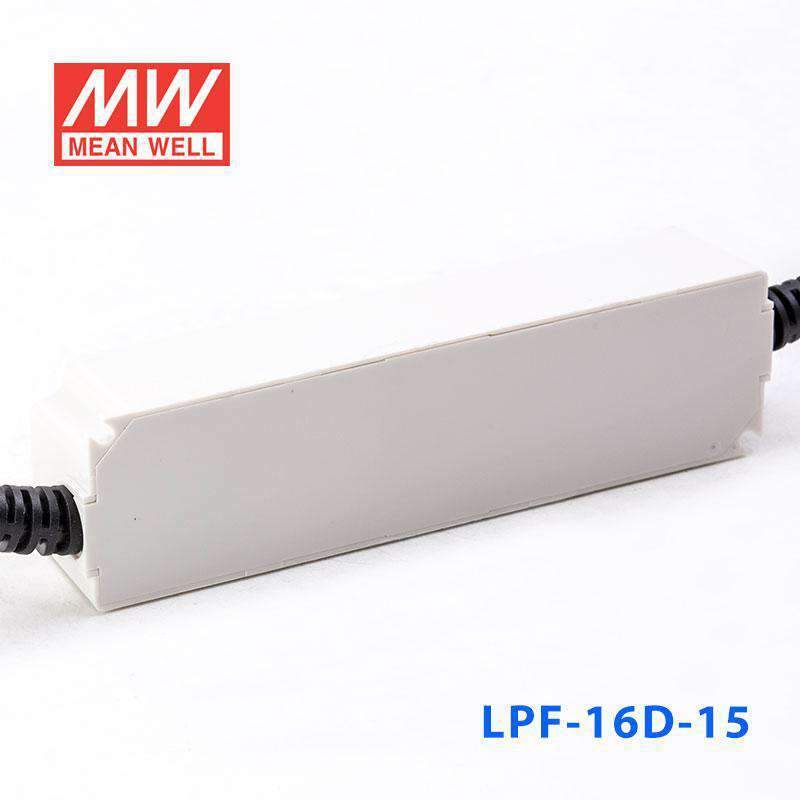

Mean Well LPF-16D-15 Power Supply 16W 15V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-16D-15 Power Supply 16W 15V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| IP30 |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 45A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -35~+70ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 18AWGx4C (30cm) |
| Dimension (LxWxH)(mm) | 148x 40x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.05 Watt
-
Output Voltage15 Volt
-
Rated Current1.07 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-16D-15 for dimmable 15V LED strip lighting?
Yes, if the LED strip or light engine is designed for constant-current operation at 1.07A and stays within the 8-15V range. The driver provides up to 16.05W and includes built-in 3 in 1 dimming for smaller dimmable 15V loads.
Is this driver suitable for dimmable shelf, display, or cabinet lighting?
It can be, as long as the LED load requires 1.07A constant current and its forward voltage is between 8V and 15V. With a 16.05W output, it fits compact dimmable display and cabinet lighting assemblies.
Can the LPF-16D-15 be used for small dimmable signage lighting?
Yes, for small signage lighting that uses a 15V constant-current LED load at 1.07A. The total load must remain within 16.05W and the 8-15V constant-current range.
Would this work for outdoor dimmable accent lighting at 15V?
Yes, the driver has an IP67 waterproof rating and an operating temperature range of -35°C to +70°C, so the enclosure is intended for outdoor and wet conditions. The LED load must still match the 1.07A constant-current output and 8-15V range.
How much 15V LED strip can the LPF-16D-15 support?
Estimate the length with: maximum strip length = 16.05W divided by your strip's rated watts per meter. Since this is a constant-current driver at 1.07A with an 8-15V range, check your strip rated power per meter and confirm it is designed for this constant-current output.
Is the LPF-16D-15 okay for wet locations or exposed installations?
The housing is IP67 waterproof, so it is intended for wet and outdoor environments. It is also rated for operation from -35°C to +70°C.
Other LPF-16D Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-16D-24 Power Supply 16W 24V - Dimmable | 16.08W | 24V | 0.67A | IP67 | $26.83 | View |
