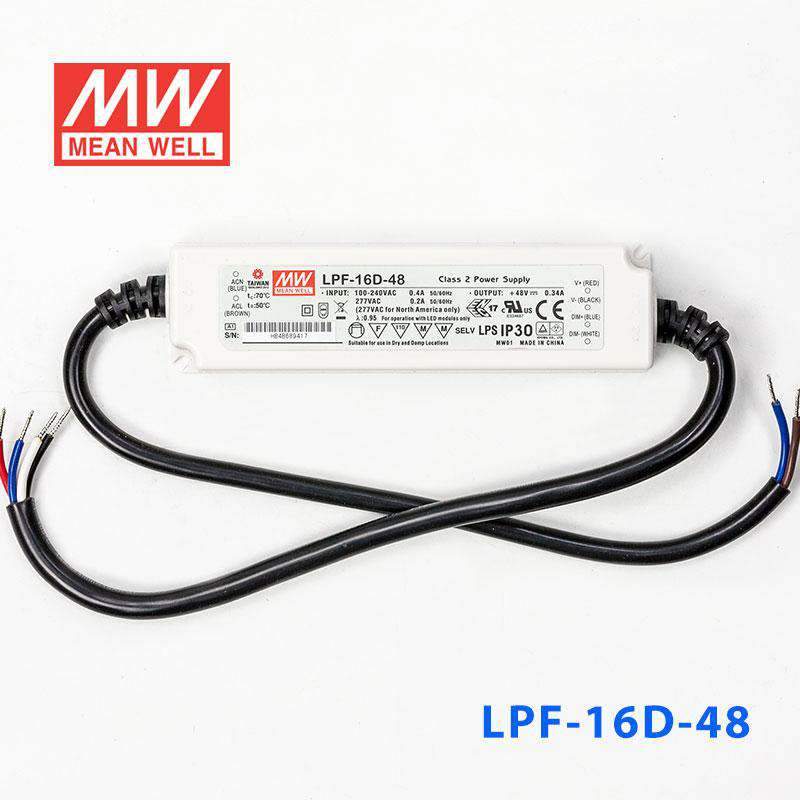

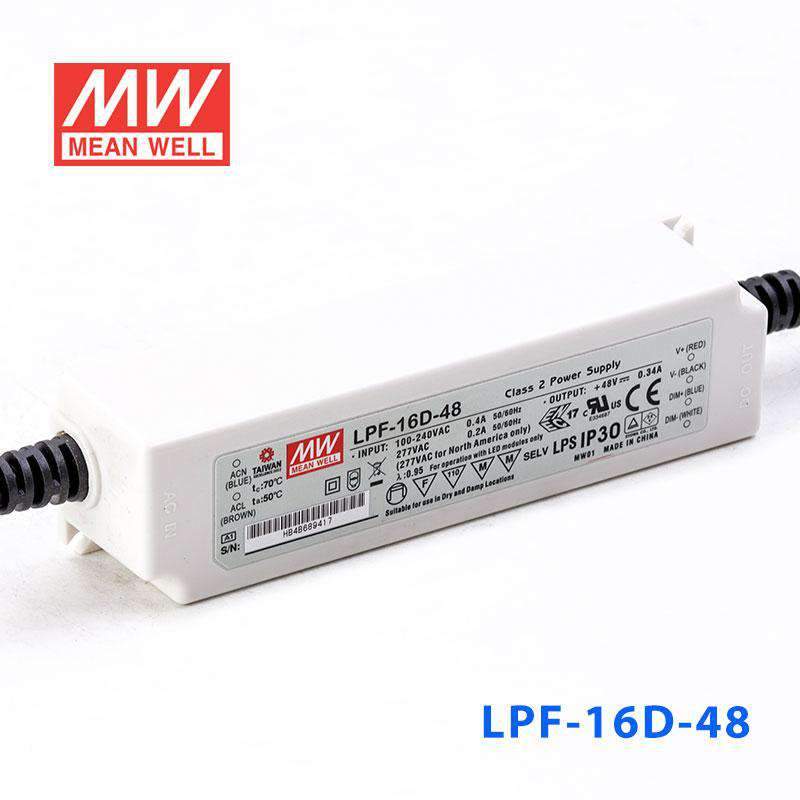

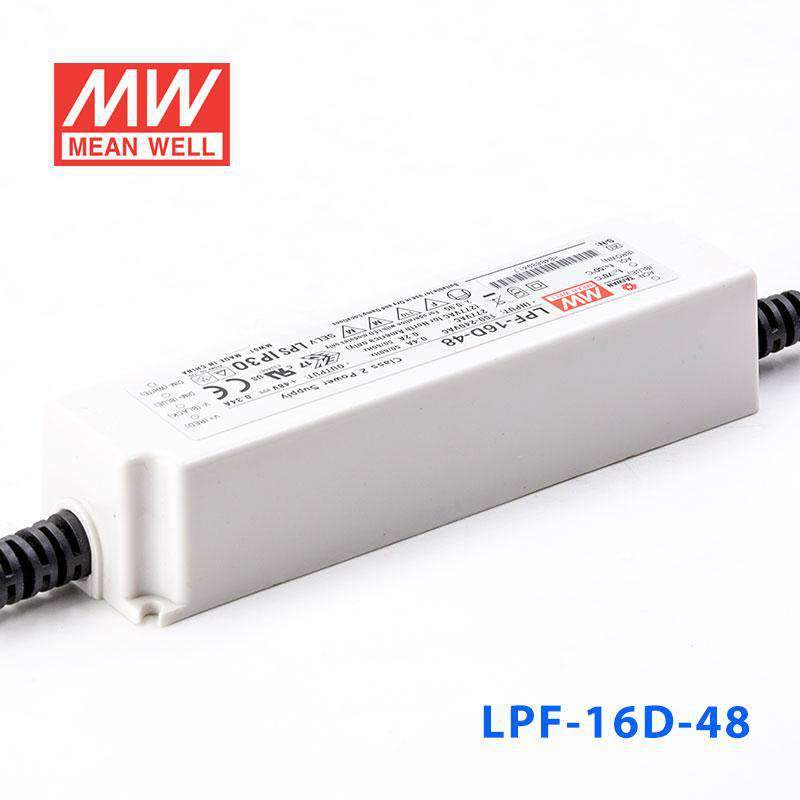

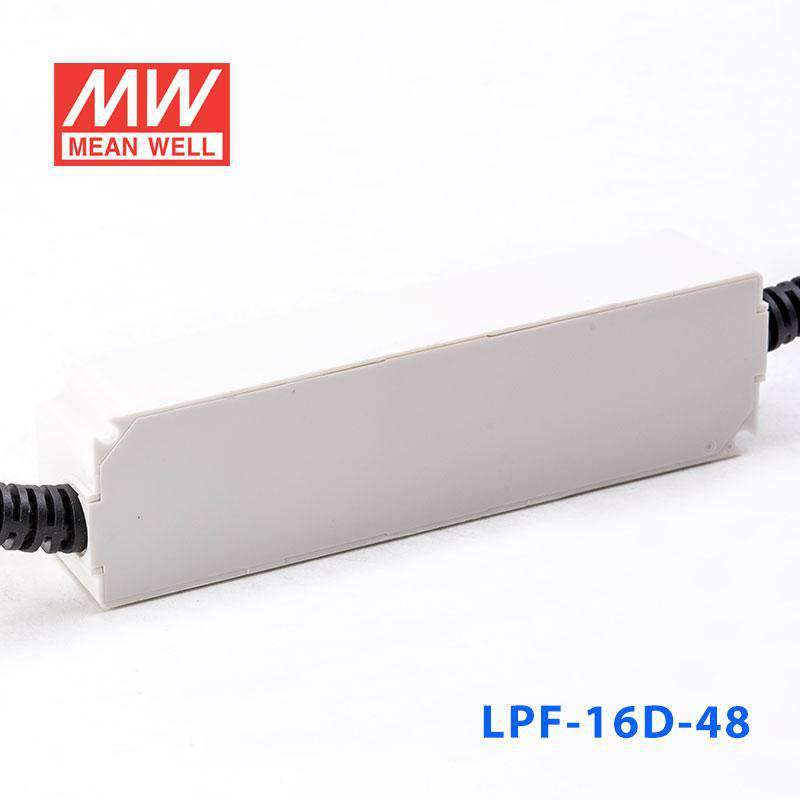

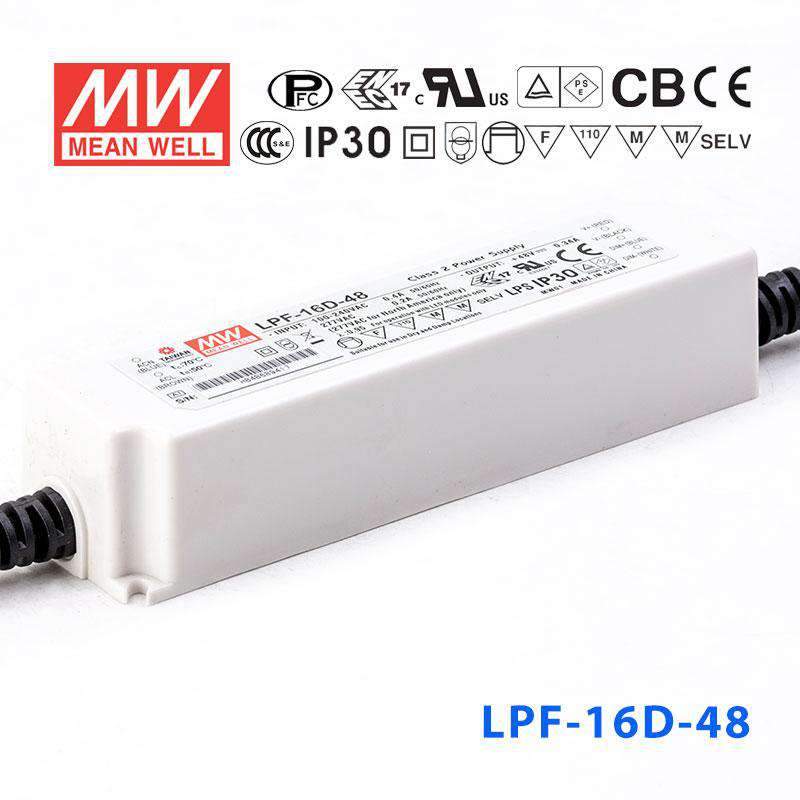

Mean Well LPF-16D-48 Power Supply 16W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-16D-48 Power Supply 16W 48V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| IP30 |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 45A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -35~+70ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 18AWGx4C (30cm) |
| Dimension (LxWxH)(mm) | 148x 40x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.32 Watt
-
Output Voltage48 Volt
-
Rated Current0.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-16D-48 for a short 48V LED strip run in a sign or display?
Yes, if the lighting product is designed for 48V operation and its load stays within the driver’s 16.32W maximum. This model provides 48V output at 0.34A and is suited to small 48V signage or display lighting loads. Because it is a constant current driver, check that the strip or fixture is specifically compatible before choosing it.
Is the LPF-16D-48 suitable for 48V architectural accent lighting?
It can be a fit for compact 48V accent lighting where the fixture falls inside the 26-48V constant current range and does not exceed 16.32W. The IP67 housing also helps when the lighting location is exposed to dust or water. Confirm the fixture’s electrical requirements match 48V and 0.34A.
Can this driver power a small 48V linear lighting section?
Yes, for a short 48V linear lighting section that needs no more than 16.32W total. The driver outputs 48V at 0.34A, so it is intended for lower-power runs rather than longer or higher-load sections. Check the light’s rated voltage and current requirements before using it.
Can I use the LPF-16D-48 in a damp or outdoor lighting location?
Yes, this model has an IP67 waterproof rating, so it is built for wet and dusty environments. Its operating temperature range is -35°C to +70°C, which supports outdoor or unconditioned locations within that range. Final suitability still depends on the rest of the lighting system being rated for the same environment.
How much 48V LED strip can the LPF-16D-48 support?
Use the power limit for the estimate: 16.32W maximum total load. Strip length estimate = 16.32W divided by your strip’s rated watts per meter, so a 4.08W/m strip would be about 4 meters. Check your strip rated power per meter and confirm it is a 48V-compatible lighting product before sizing.
How does the LPF-16D-48 compare with the other 16W dimmable LPF models?
In the LPF-16D group, the options are 12V 16.08W 1.34A, 15V 16.05W 1.07A, 20V 16W 0.8A, 24V 16.08W 0.67A, 30V 16.2W 0.54A, 36V 16.2W 0.45A, 42V 16.38W 0.39A, 48V 16.32W 0.34A, and 54V 16.2W 0.3A. The LPF-16D-48 sits near the high-voltage end of that range and keeps the same built-in 3 in 1 dimming format as the other D versions.
