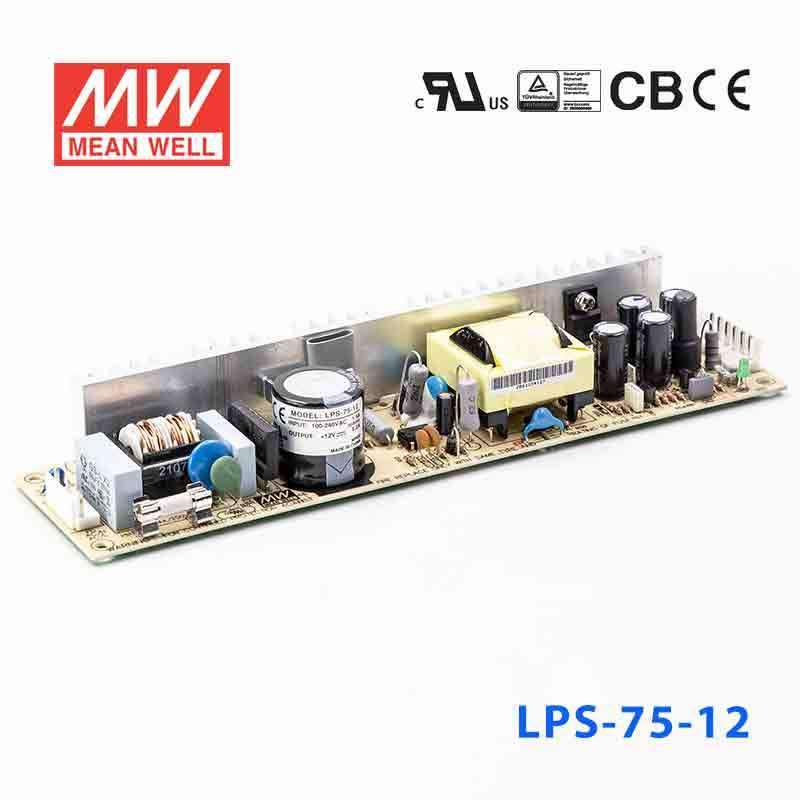

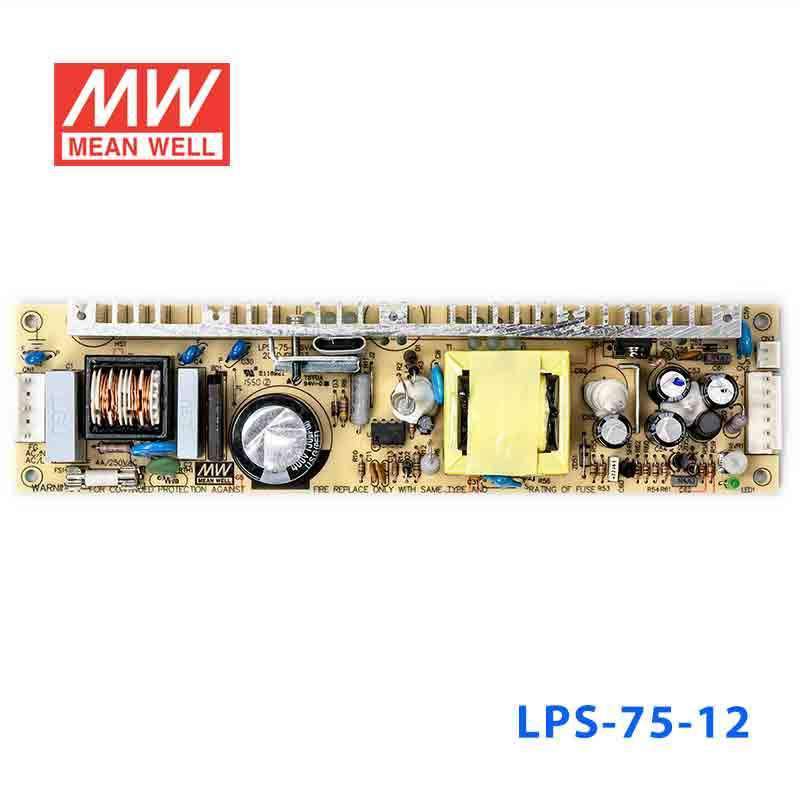

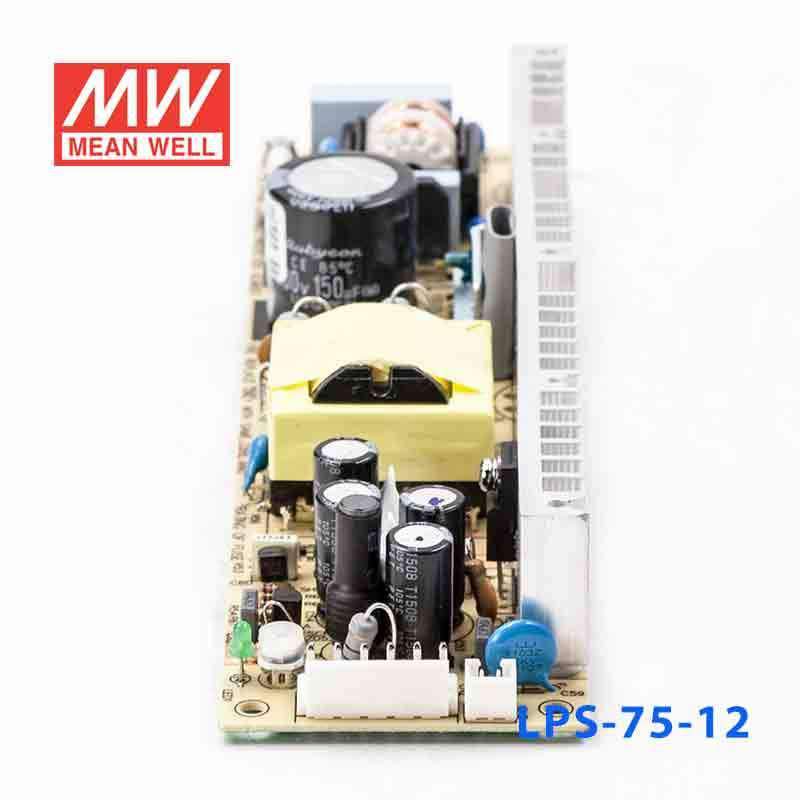

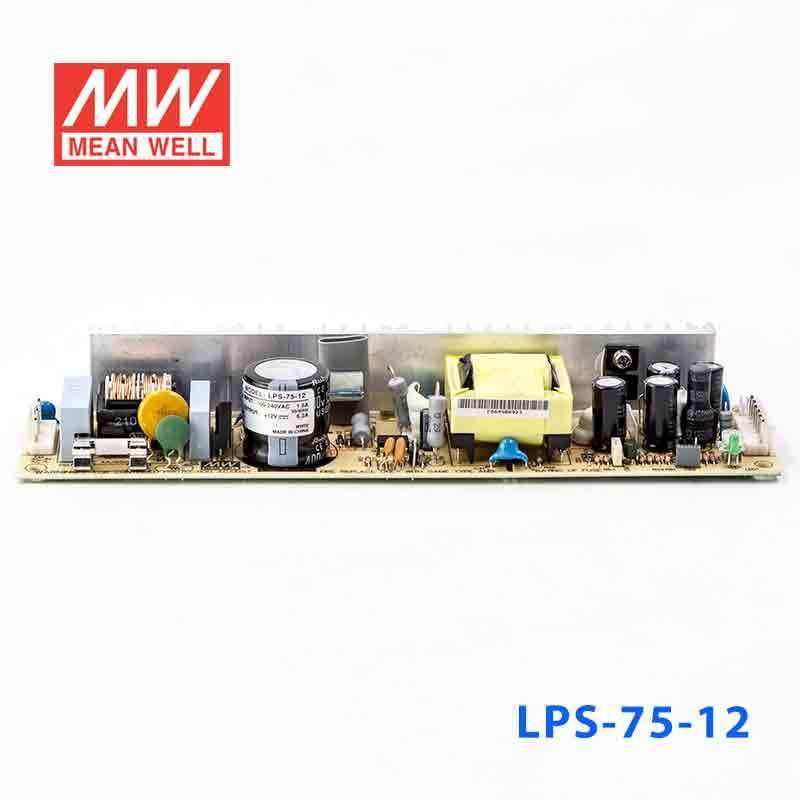

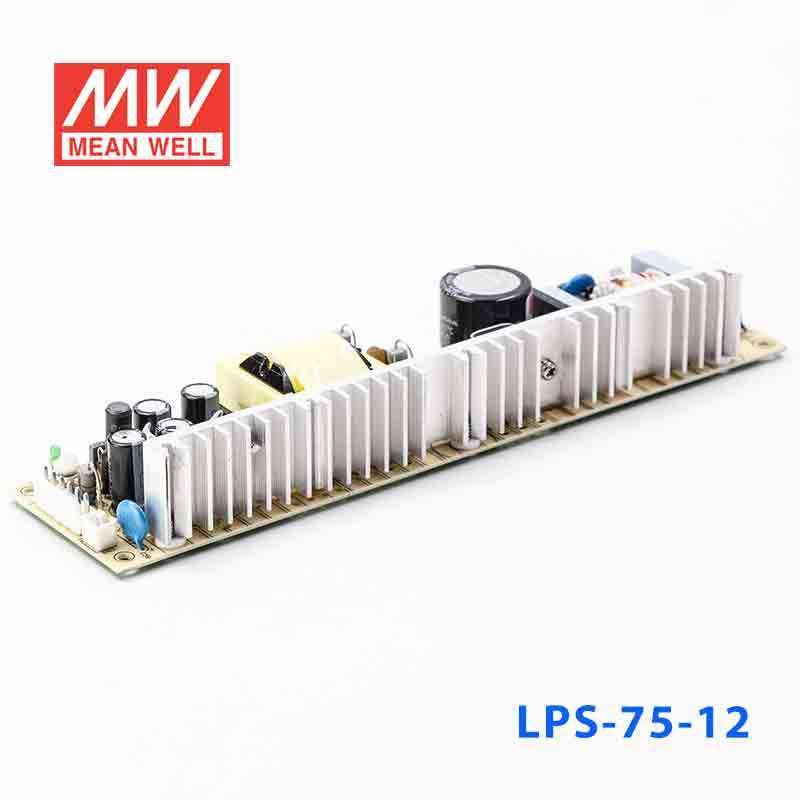

Mean Well LPS-75-12 Power Supply 74W 12V

small and compact, low profile, 23mm thickness, built-in remote ON-OFF control

SKU:

LPS-75-12

$20.75 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	36A
DC adjustment range	±10% rated output voltage
Overload protection Range	115%~150%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B6P-VH
Dimension (LxWxH)	222x55x30
Packing	48pcs / 15.6kg

Specifications

Brand

Mean Well
Series

LPS Series
Power Rating

74.4 Watt
Output Voltage

12 Volt
Rated Current

6.2 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

2 Year
Length

8.74 in
Width

2.17 in
Height

1.18 in
Weight

0.66 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPS-75-12 for 12V PLC accessories, relays, or industrial control devices?

Yes, if the system needs constant voltage 12V DC and the total load stays within 74.4W and 6.2A. It is suited to medium-power 12V control applications rather than very low-current 12V electronics.

Is the LPS-75-12 a good fit for 12V CCTV, access control, or security hardware?

It can support 12V security and control equipment that operates from a constant voltage source and remains within 6.2A total output current. The 74.4W rating gives more headroom than a 50.4W 12V model.

Can this 12V power supply run embedded systems, HMIs, or small automation panels?

It can be used for 12V embedded or automation equipment where the combined draw does not exceed 74.4W. The input range of 90-264VAC also supports use across common AC supply ranges.

Is the LPS-75-12 suitable where enclosure space is limited but more 12V current is needed?

This version measures 222.0 x 55.0 x 30.0 mm and weighs 0.3 kg. It is still compact, but it is larger than the 195.0 x 55.0 x 23.0 mm LPS-50 models.

Can the LPS-75-12 be used in outdoor or unsealed environments?

The specs list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. That means temperature capability is stated, while outdoor ingress protection is not specified in the provided data.

How does the LPS-75-12 compare with the other 12V models in the series?

The listed 12V models are LPS-50-12 at 50.4W and 4.2A, LPS-75-12 at 74.4W and 6.2A, and LPS-100-12 at 100.8W and 8.4A. The main distinction is how much output power and current each 12V version can provide.
