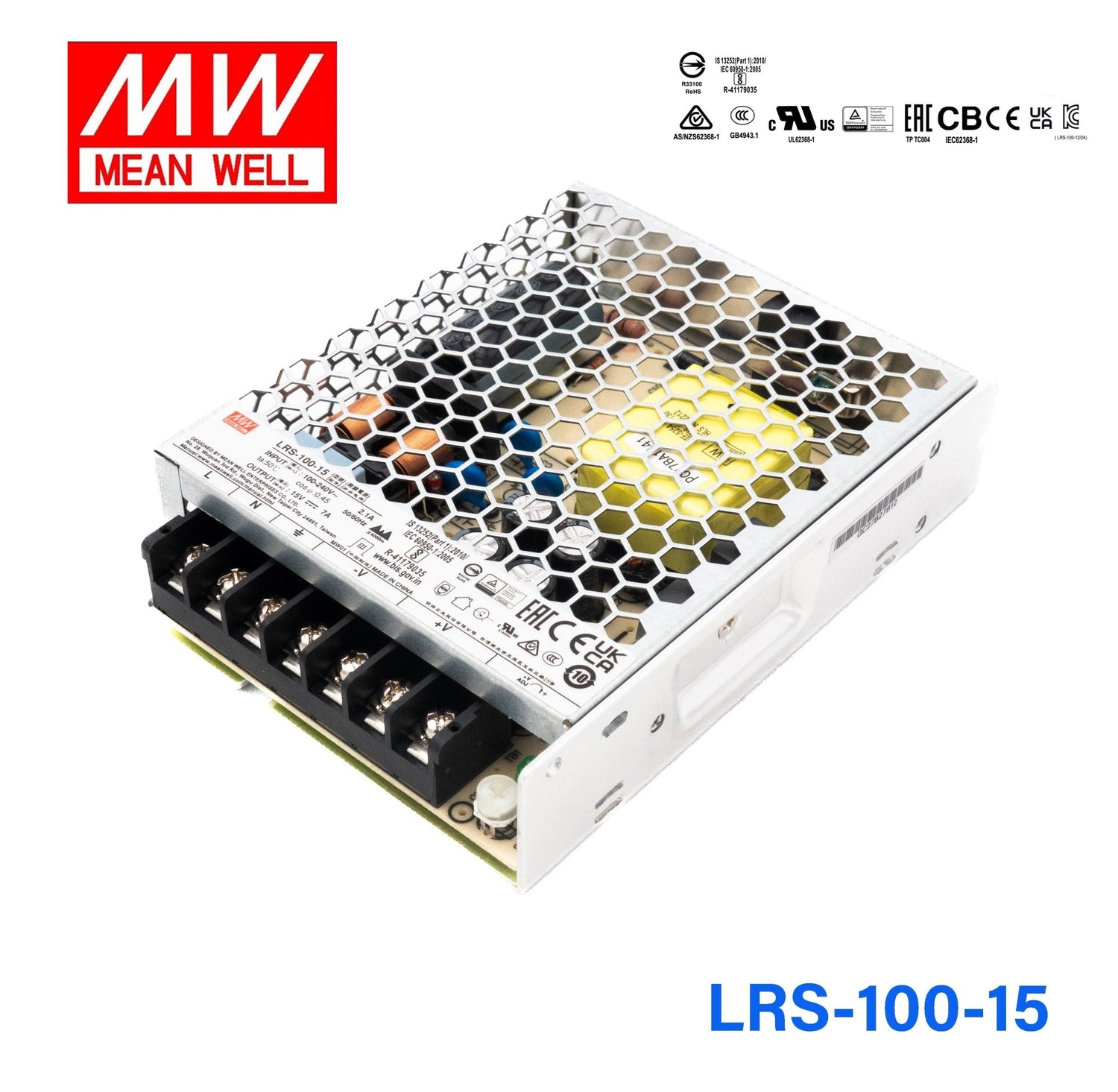

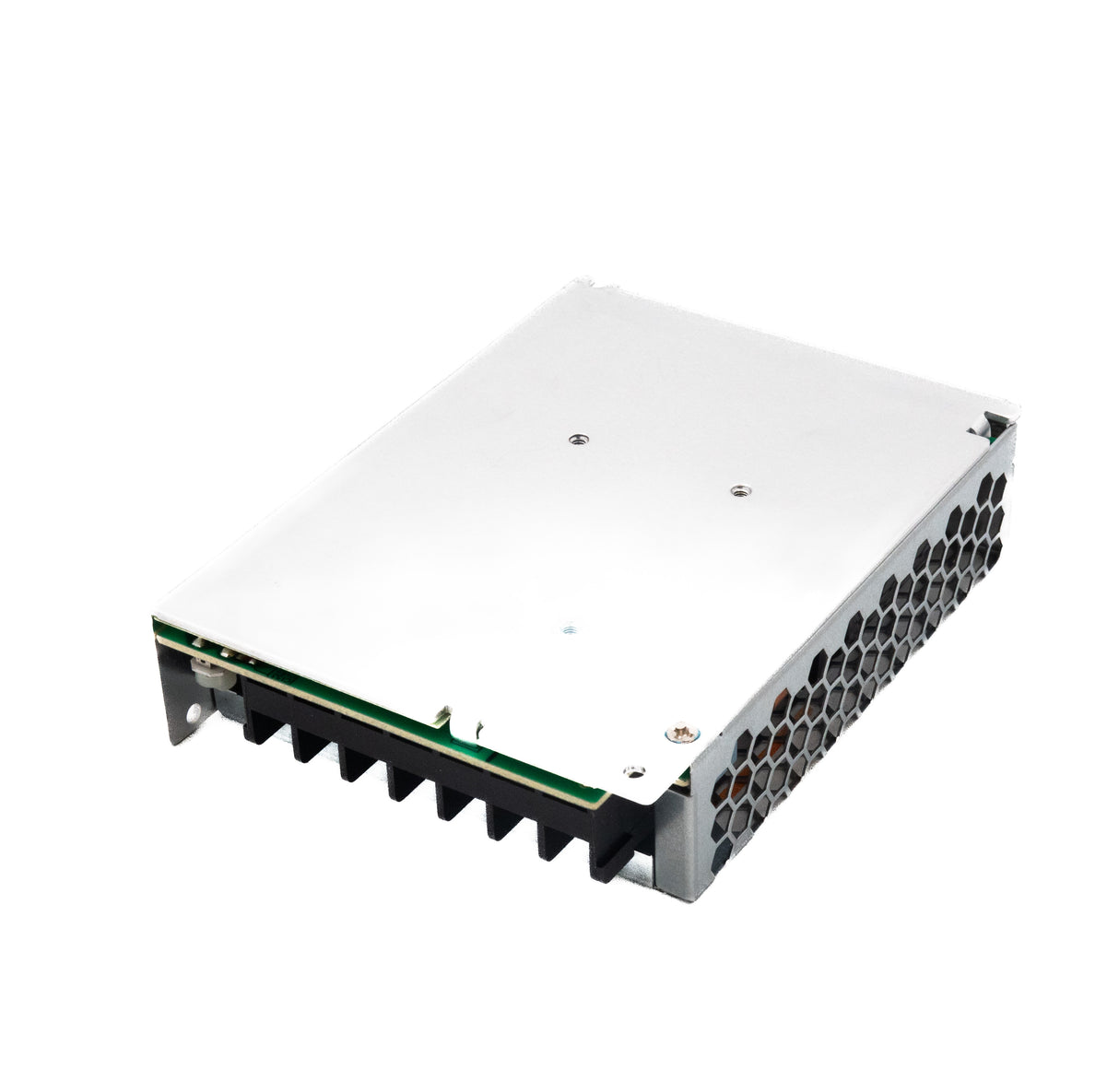

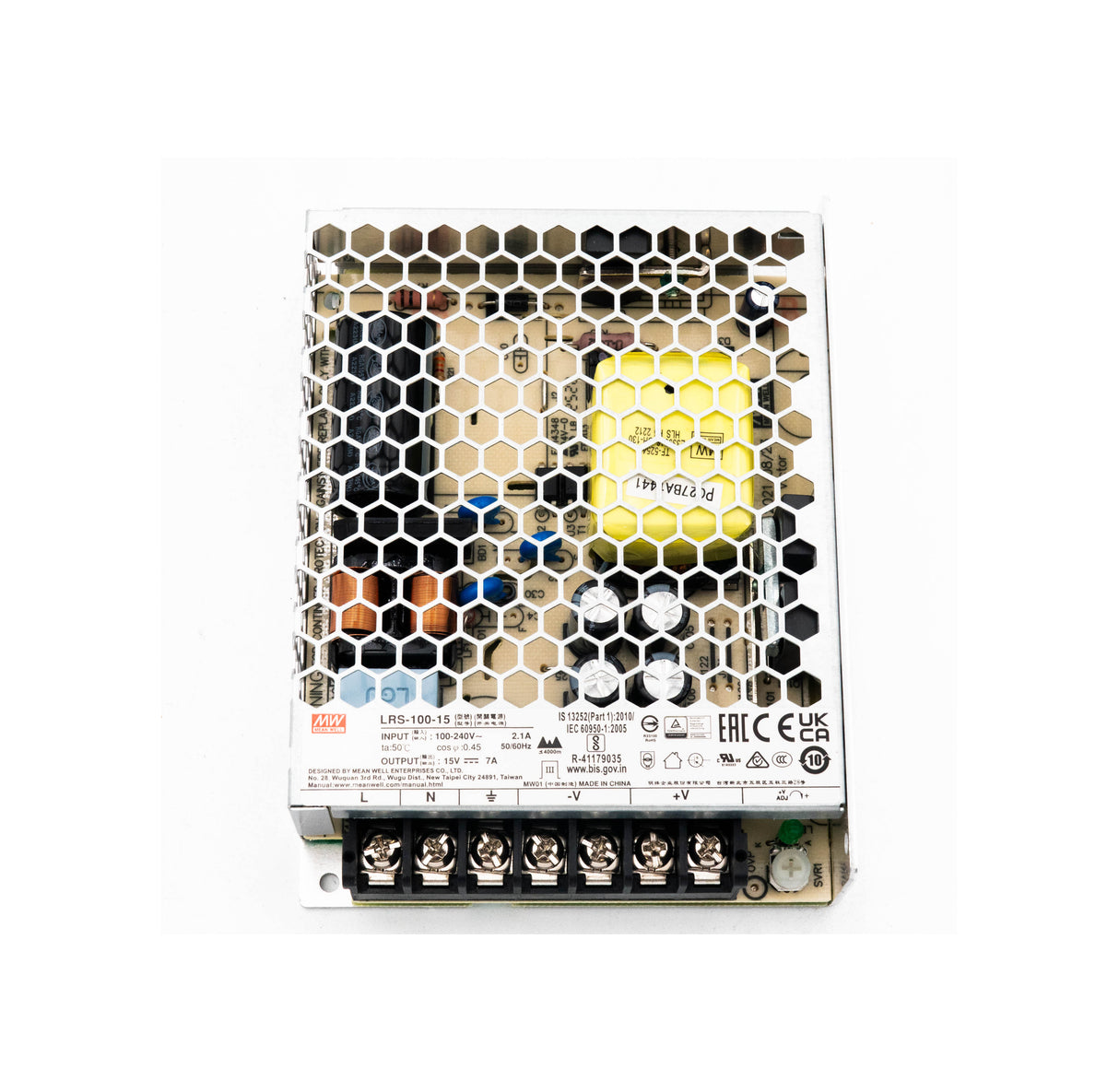

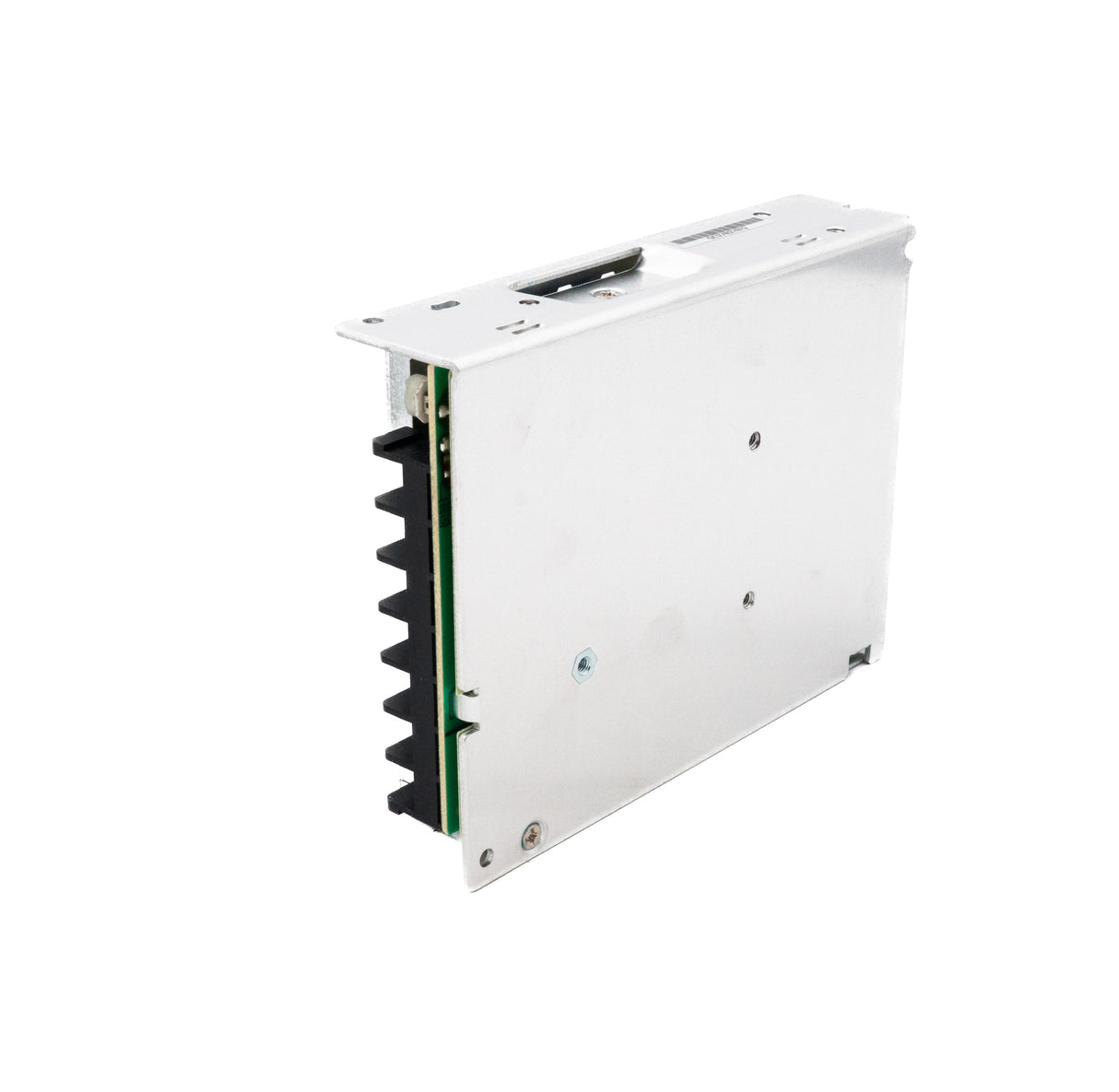

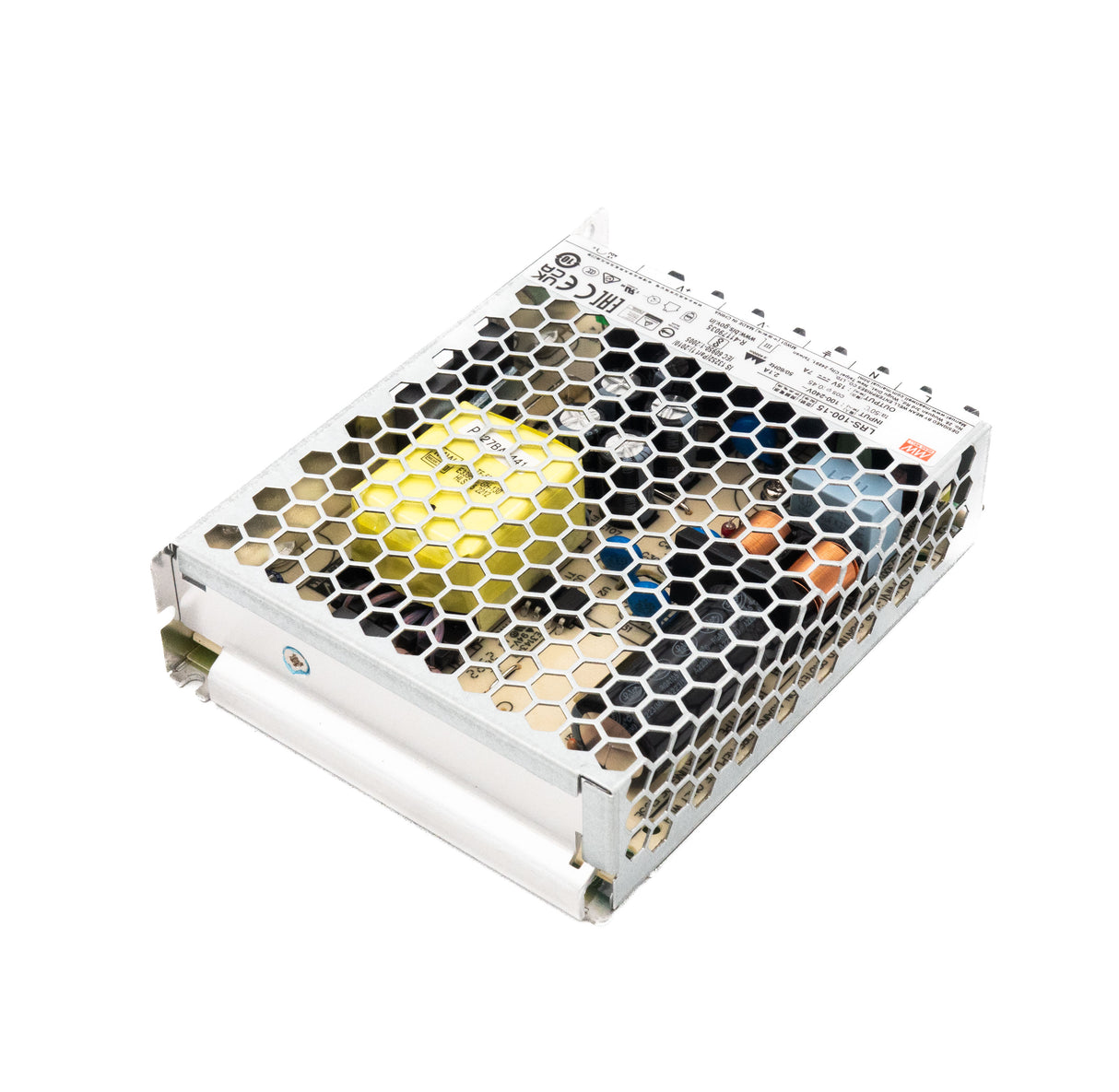

Mean Well LRS-100-15 Power Supply 100W 15V 7A

Name: Mean Well LRS-100-15 Power Supply 100W 15V 7A
Brand: Mean Well
SKU: LRS-100-15
Price: 18.12 USD
Availability: InStock

most economical modelultra compact and 1U low profilewithstand 5G vibration and 70°C operation

SKU LRS-100-15

$18.12 USD

Shipping calculated at checkout.

Select model — 9 in this family

LRS-100-15

LRS-35-15 35W 15V In stock $12.79 USD

LRS-50-15 50W 15V In stock $13.30 USD

LRS-75-15 75W 15V In stock $16.16 USD

LRS-100-15 100W 15V In stock $18.12 USD

LRS-150-15 150W 15V In stock $22.54 USD

LRS-200-15 200W 15V In stock $25.95 USD

LRS-350-15 350W 15V In stock $21.00 USD

LRS-450-15 450W 15V In stock $64.66 USD

LRS-600-15 600W 15V In stock $59.98 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LRS-100-15 is the 15V output model of this series: rated current 7A, rated power 105W, typical efficiency 88.5%.

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN2368-1, EN60335-1,EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Miniature size and 1U low profile
Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
Operating altitude up to 5000 meters (Note.7)
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.3W
Over voltage category Ⅲ
100% full load burn-in test
High operating temperature up to 70℃
High efficiency, long life and high reliability
3 years warranty

Specifications

LRS-100-15Specifications from the official datasheet (2019-09-12 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 7A
CURRENT RANGE: 0 ~ 7A
RATED POWER: 105W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 18V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME (Typ.): 55ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88.5%
AC CURRENT (Typ.): 1.9A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER LOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.75 ~ 21.75V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters

SAFETY & EMC (Note 8)

SAFETY STANDARDS: UL 62368-1, TUV EN62368-1, EN60335-1, EN61558-1 /- 2 - 16 ,CCC GB4943 .1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB) approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF: 720.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 129*97*30mm (L*W*H)
PACKING: 0.34Kg ; 40pcs/14.6Kg/0.92CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

LRS-100-15 Block Diagram — Block Diagram

LRS-100-15 Derating Curve — Derating Curve

LRS-100-15 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Downloads

Datasheet1

LRS-100-15 datasheetlrs_100_spec.pdf · 2019-09-12 edition PDF Download

Certificates6

UL Certificate (LRS-100)(EN) PDF Download

EMC Certificate (LRS-100)(EN) PDF Download

CB(60335) Certificate (LRS-100)(EN) PDF Download

CB(60950) Certificate (LRS-100)(EN) PDF Download

TUV(60335) Certificate (LRS-100)(EN) PDF Download

TUV(60950) Certificate (LRS-100)(EN) PDF Download

Test reports1

Test Report (LRS-100-15)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What is the LRS-100-15 commonly used for?

The LRS-100-15 provides 15V DC at 7A, suitable for powering analog signal conditioning circuits, industrial instrumentation, op-amp bias supplies, and legacy embedded hardware that requires a 15V rail. Its 105W output handles modest analog or mixed-signal system loads within a compact form factor.

Is the LRS-100-15 suitable for use in high-temperature environments?

The LRS-100-15 is rated for operation from -30°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.

How does the LRS-100-15 compare to other voltage options in the LRS-100 series?

The LRS-100 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-100-12: 102W, 12V, 8.5A; LRS-100-24: 108W, 24V, 4.5A; LRS-100-3.3: 66W, 3.3V, 20A; LRS-100-36: 75.6W, 36V, 2.8A; LRS-100-48: 110.4W, 48V, 2.3A; LRS-100-5: 80W, 5V, 18A. The LRS-100-15 itself is rated at 105W, 15V, 7A. All share the same universal input range of 85-264VAC and operating temperature of -30°C to +70°C.

Does the LRS-100-15 meet any vibration resistance requirements?

Yes, the LRS-100-15 is rated to withstand 5G vibration, making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors or mobile industrial platforms. It also operates continuously up to 70°C, covering most harsh industrial ambient conditions.

How do I determine if the LRS-100-15 has enough headroom for my load?

The LRS-100-15 is rated at 105W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 84W sustained draw. The 15V output at 7A gives the total current budget across all loads sharing this supply.
