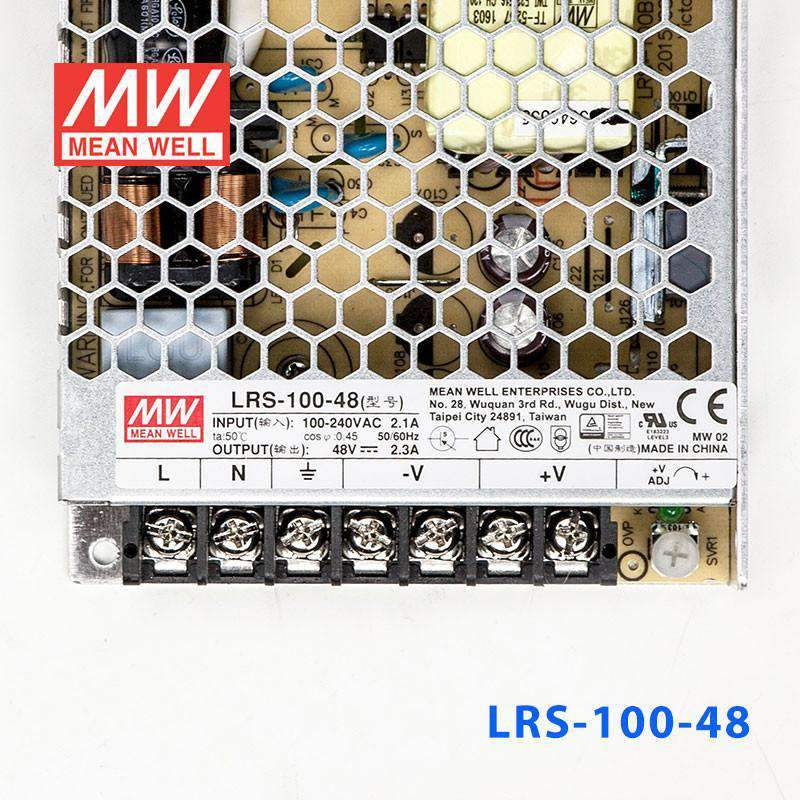

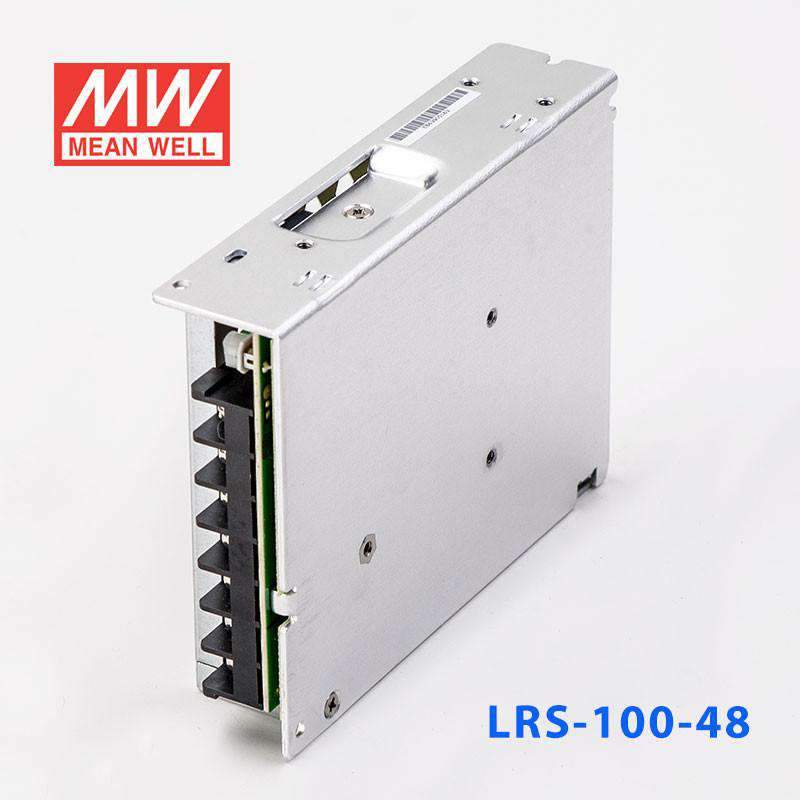

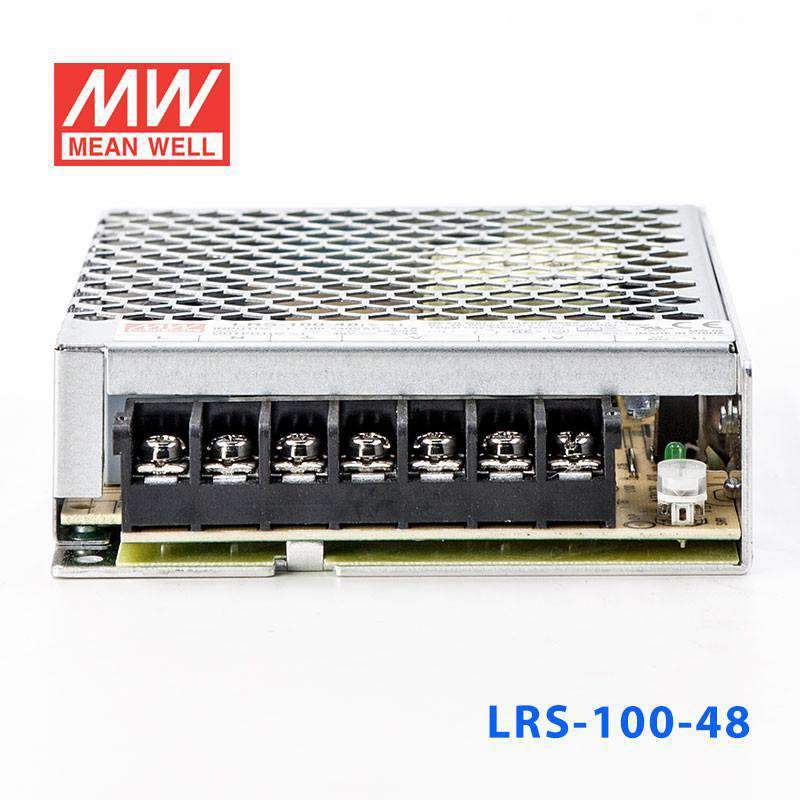

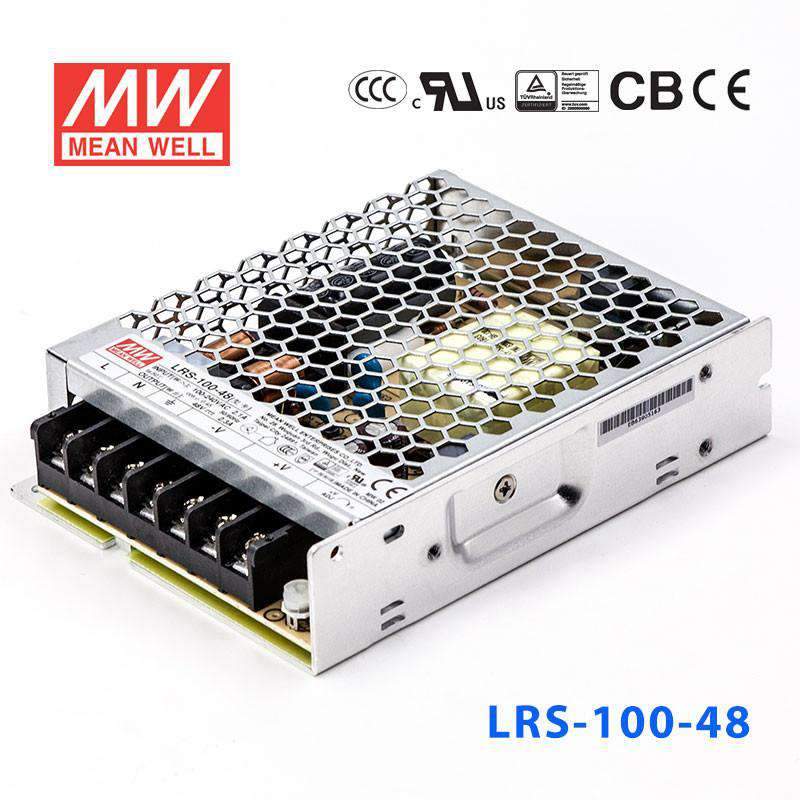

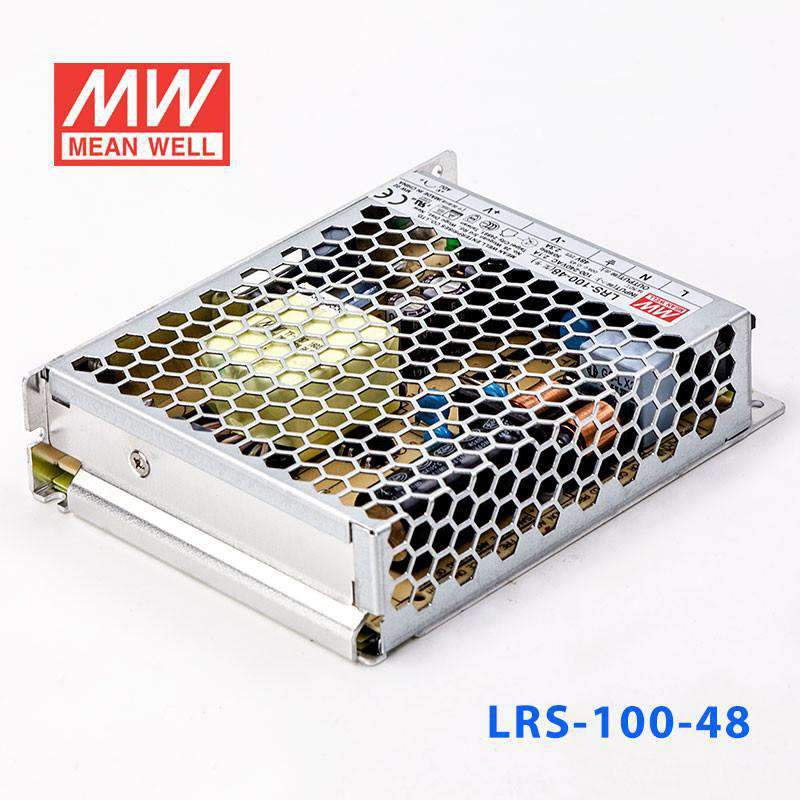

Mean Well LRS-100-48 Power Supply 100W 48V 2.3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-100-48 Power Supply 100W 48V 2.3A
Overview
LRS-100-48 is the 48V output model of this series: rated current 2.3A, rated power 110.4W, typical efficiency 91%.
LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN2368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS-100 series serves as a high price-performance power supply solution for various industrial applications.
Features
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Miniature size and 1U low profile
- Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, 2-16 for household applications
- Operating altitude up to 5000 meters (Note.7)
- Withstand 5G vibration test
- LED indicator for power on
- No load power consumption<0.3W
- Over voltage category Ⅲ
- 100% full load burn-in test
- High operating temperature up to 70℃
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 2.3A
- CURRENT RANGE
- 0 ~ 2.3A
- RATED POWER
- 110.4W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- 43.2 ~ 52.8V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATIONNote.4
- ±0.5%
- LOAD REGULATIONNote.5
- ±0.5%
- SETUP, RISE TIME
- 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 55ms/230VAC 10ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 91%
- AC CURRENT (Typ.)
- 1.9A/115VAC 1.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A/230VAC
- LEAKAGE CURRENT
- <0.75mA / 240VAC
PROTECTION
- OVER LOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 55.2 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
- OVER VOLTAGE CATEGORY
- Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY & EMC (Note 8)
- SAFETY STANDARDS
- UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,GB 4943.1, BSMI CNS15598-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005(NOTE 9) approved
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB17625.1,GB/T 9254.1, BSMI CNS15936, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
OTHERS
- MTBF
- 3348.9K hrs min. Telcordia SR-332 (Bellcore) ; 677.4Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 129*97*30mm (L*W*H)
- PACKING
- 0.33Kg ; 40pcs/14.2Kg/0.87CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 0% to 100% rated load.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
- 7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
- 8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
- Household applications
Downloads
Datasheet1
Certificates6
Test reports1
FAQ
What systems commonly use the LRS-100-48?
The LRS-100-48 delivers 48V DC at 2.3A, a voltage commonly required by VoIP telephony equipment, PoE network switches, brushless DC motor drives, and distributed power bus systems. Its 110.4W output is appropriate for single-device or small multi-load 48V installations.
Is the LRS-100-48 suitable for use in high-temperature environments?
The LRS-100-48 is rated for operation from -30°C to +70°C, but its output must be derated at higher ambient temperatures according to the datasheet's derating curve, so full load is not available all the way to 70°C. The sheet lists no IP rating and treats the unit as a component to be installed inside final equipment, so it is not intended for outdoor or wet-location use.
How does the LRS-100-48 compare to other voltage options in the LRS-100 series?
The LRS-100 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-100-12: 102W, 12V, 8.5A; LRS-100-15: 105W, 15V, 7A; LRS-100-24: 108W, 24V, 4.5A; LRS-100-3.3: 66W, 3.3V, 20A; LRS-100-36: 100.8W, 36V, 2.8A; LRS-100-5: 90W, 5V, 18A. The LRS-100-48 itself is rated at 110.4W, 48V, 2.3A. All share the same universal input range of 85-264VAC and operating temperature of -30°C to +70°C (with derating).
Does the LRS-100-48 meet any vibration resistance requirements?
Yes, the LRS-100-48 is tested to 10-500Hz, 5G vibration (10 min per cycle, 60 min along each of the X, Y and Z axes), making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors. It operates from -30°C to +70°C, with output derating at higher ambient temperatures per the derating curve.
How do I determine if the LRS-100-48 has enough headroom for my load?
The LRS-100-48 is rated at 110.4W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 88.3W sustained draw. The 48V output at 2.3A gives the total current budget across all loads sharing this supply.
