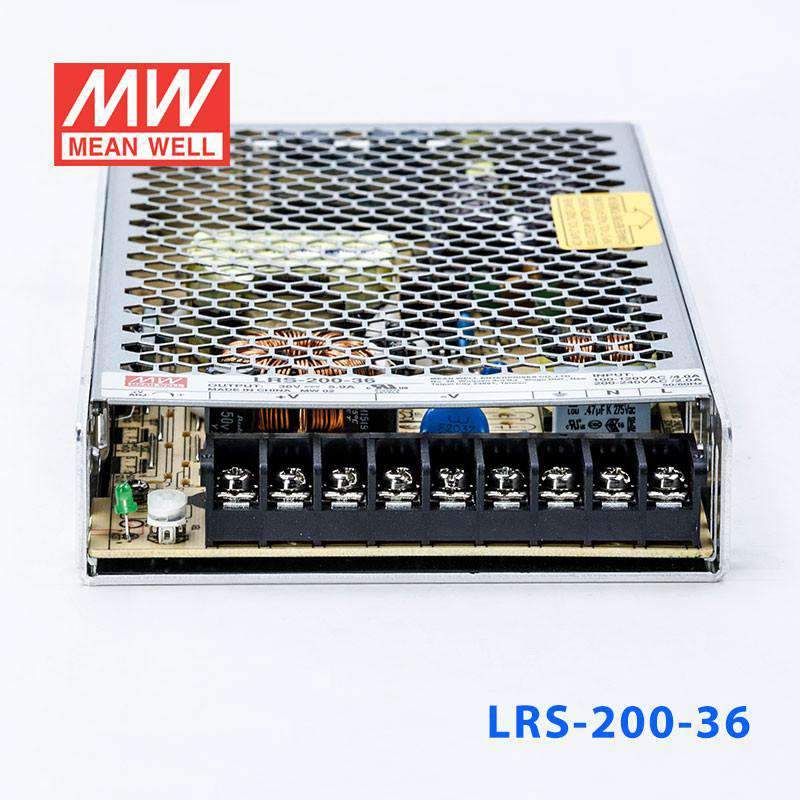

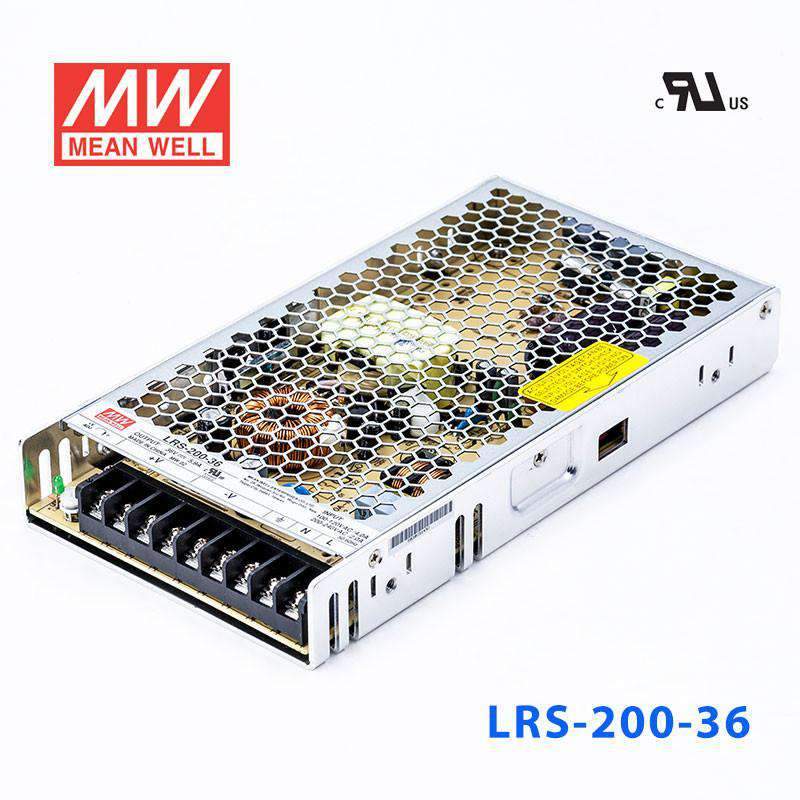

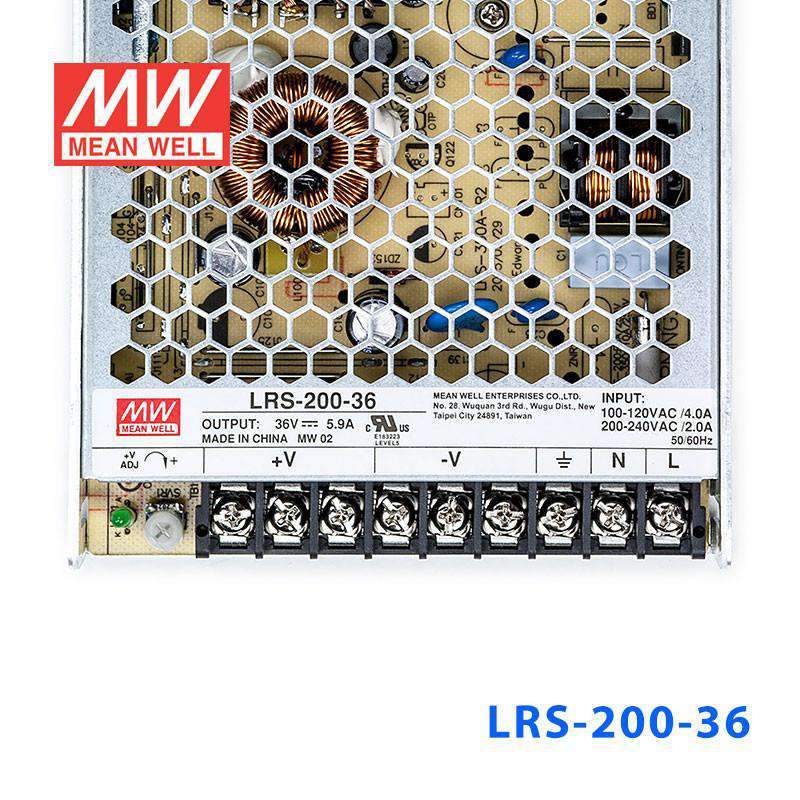

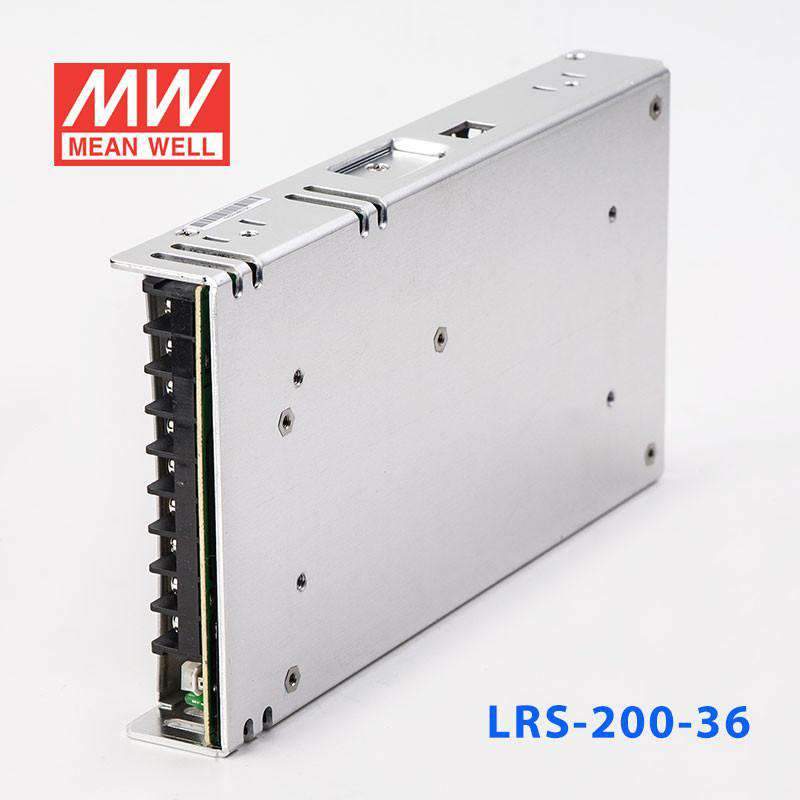

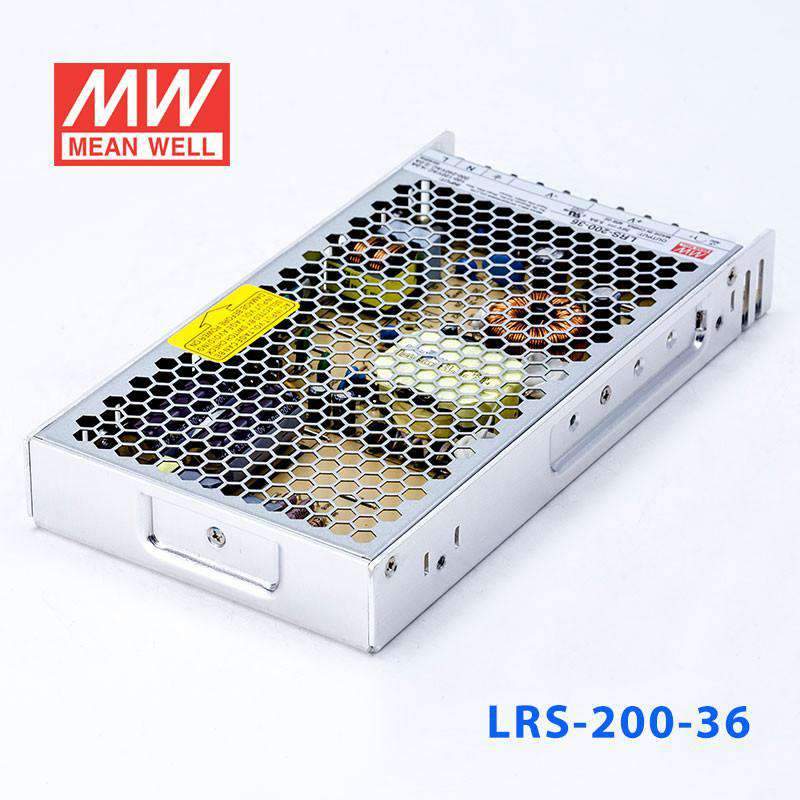

Mean Well LRS-200-36 Power Supply 200W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-200-36 Power Supply 200W 36V
Description
Description
Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification
| AC input voltage range | 115 / 230VAC by switch |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% by potentiometer |
| Overload protection Range | 110%~140% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% rated output voltage |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -25~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | Design refer to EN55022 class A |
| Connection | 9P/9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x 115x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating212.4 Watt
-
Output Voltage36 Volt
-
Rated Current5.9 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.46 lb
