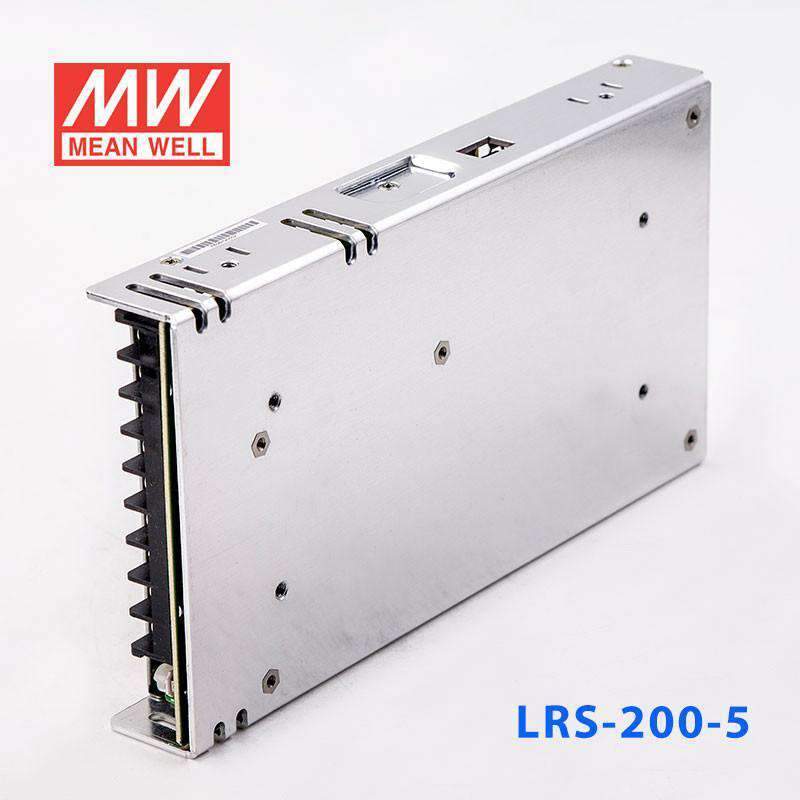

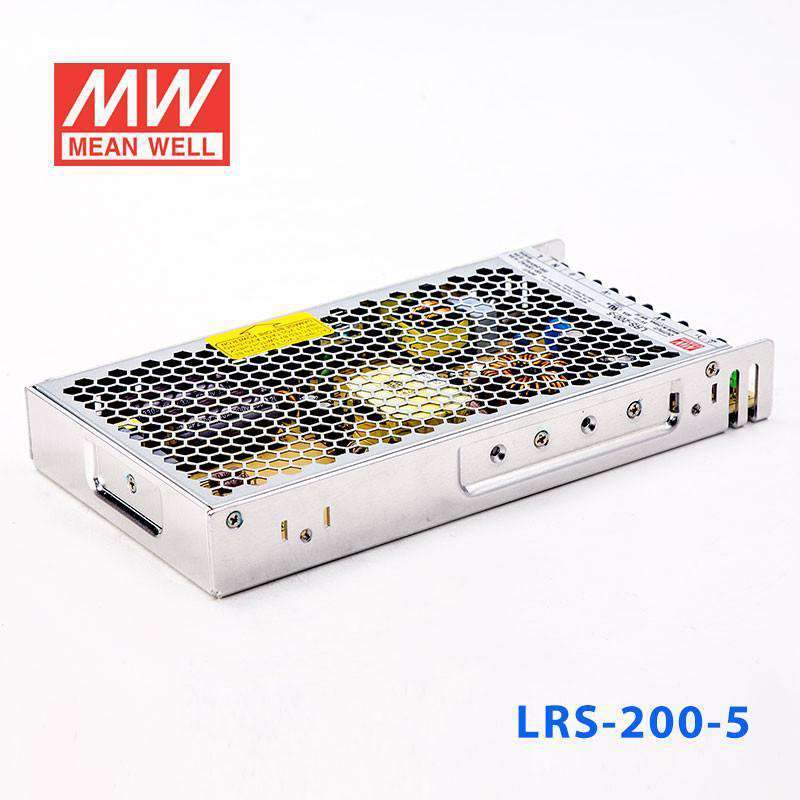

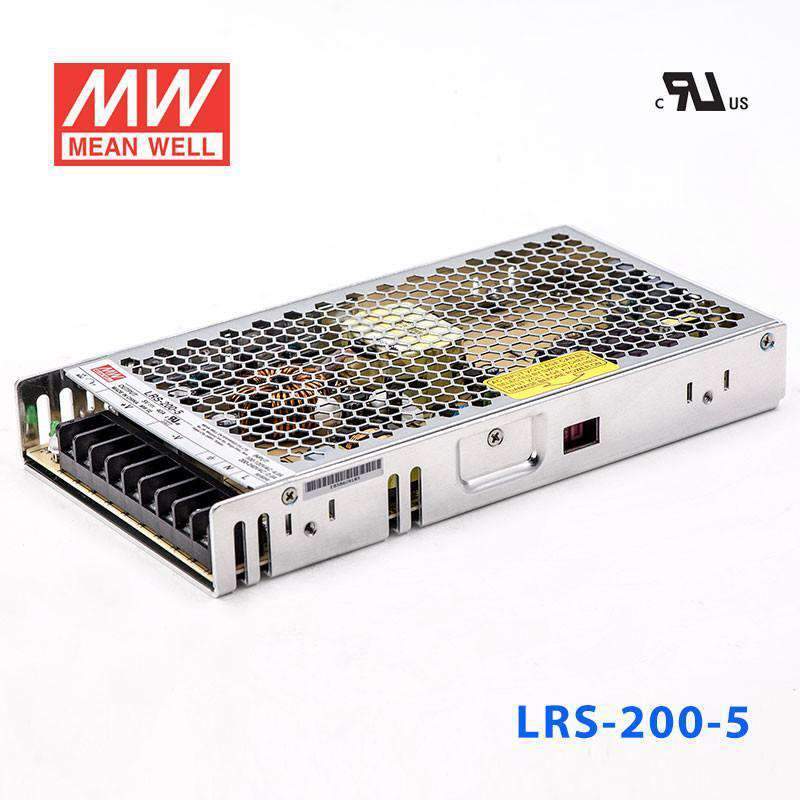

Mean Well LRS-200-5 Power Supply 200W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-200-5 Power Supply 200W 5V
Description
Description
Features:
No load power consumption <0.5W for 150W; <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty
General Specification
| AC input voltage range | 115 / 230VAC by switch |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% by potentiometer |
| Overload protection Range | 110%~140% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% rated output voltage |
| Over voltage protection Type | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -25~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | Design refer to EN55022 class A |

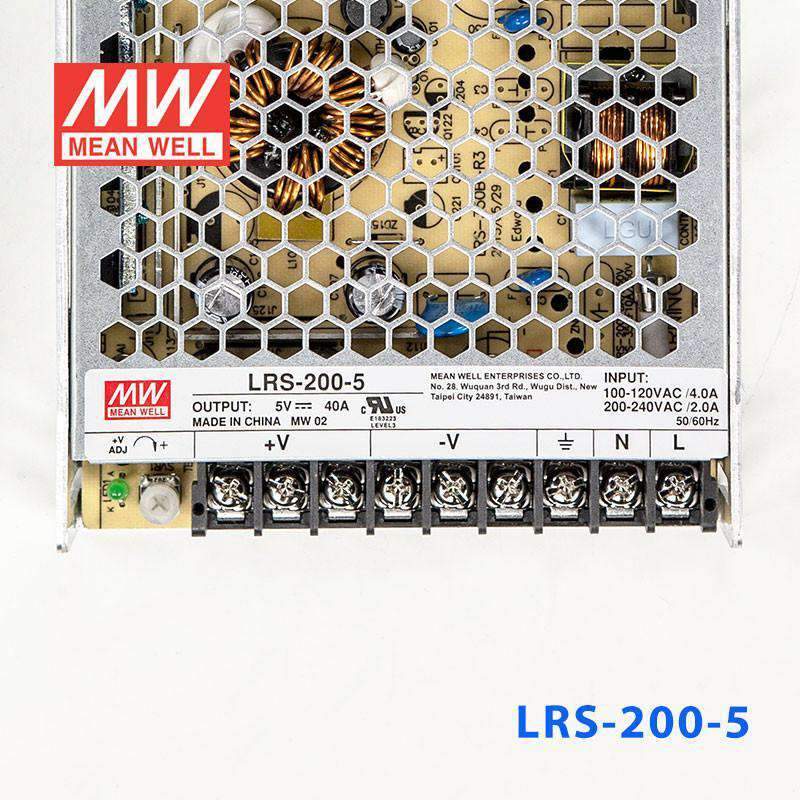

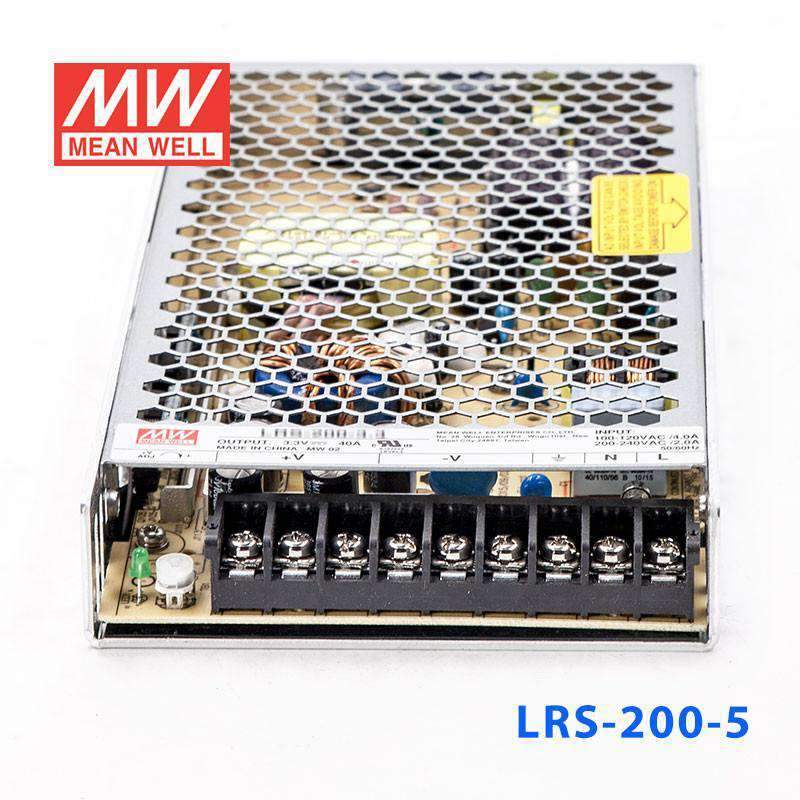

| Connection | 9P/9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x 115x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What high-current 5V applications does the LRS-200-5 support?
The LRS-200-5 provides 5V DC at 40A, designed for powering multiple microcontroller boards, high-density single-board computer clusters, industrial HMI logic supplies, and multi-card embedded systems requiring a high-current 5V rail. Its 200W output supports arrays of 5V logic loads from a single supply.
Is the LRS-200-5 suitable for use in high-temperature environments?
The LRS-200-5 is rated for operation from -25°C to +70°C, allowing continuous use in demanding industrial environments without forced-air cooling up to the rated temperature ceiling. The unit is designed for indoor installation in ventilated enclosures; it does not carry an IP rating for outdoor or wet-location use.
How does the LRS-200-5 compare to other voltage options in the LRS-200 series?
The LRS-200 series offers multiple output voltages to match different system requirements. The available variants (with rated power, voltage, and current) are: LRS-200-12: 204W, 12V, 17A; LRS-200-15: 210W, 15V, 14A; LRS-200-24: 211.2W, 24V, 8.8A; LRS-200-3.3: 132W, 3.3V, 40A; LRS-200-36: 212.4W, 36V, 5.9A; LRS-200-4.2: 168W, 4.2V, 40A. The LRS-200-5 itself is rated at 200W, 5V, 40A. All share the same universal input range of 90-264VAC and operating temperature of -25°C to +70°C.
Does the LRS-200-5 meet any vibration resistance requirements?
Yes, the LRS-200-5 is rated to withstand 5G vibration, making it appropriate for equipment installed in environments subject to mechanical vibration such as factory floors or mobile industrial platforms. It also operates continuously up to 70°C, covering most harsh industrial ambient conditions.
How do I determine if the LRS-200-5 has enough headroom for my load?
The LRS-200-5 is rated at 200W output. Best practice is to keep continuous load at or below 80% of rated capacity, which for this unit is approximately 160W sustained draw. The 5V output at 40A gives the total current budget across all loads sharing this supply.
Other LRS-200 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-200-12 Power Supply 200W 12V | 204W | 12V | 17A | Indoor | $27.55 | View |
| Mean Well LRS-200-24 Power Supply 200W 24V | 211.2W | 24V | 8.8A | Indoor | $27.92 | View |
| Mean Well LRS-200-36 Power Supply 200W 36V | 212.4W | 36V | 5.9A | Indoor | $29.81 | View |
| Mean Well LRS-200-15 Power Supply 200W 15V | 210W | 15V | 14A | Indoor | $29.81 | View |
