Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

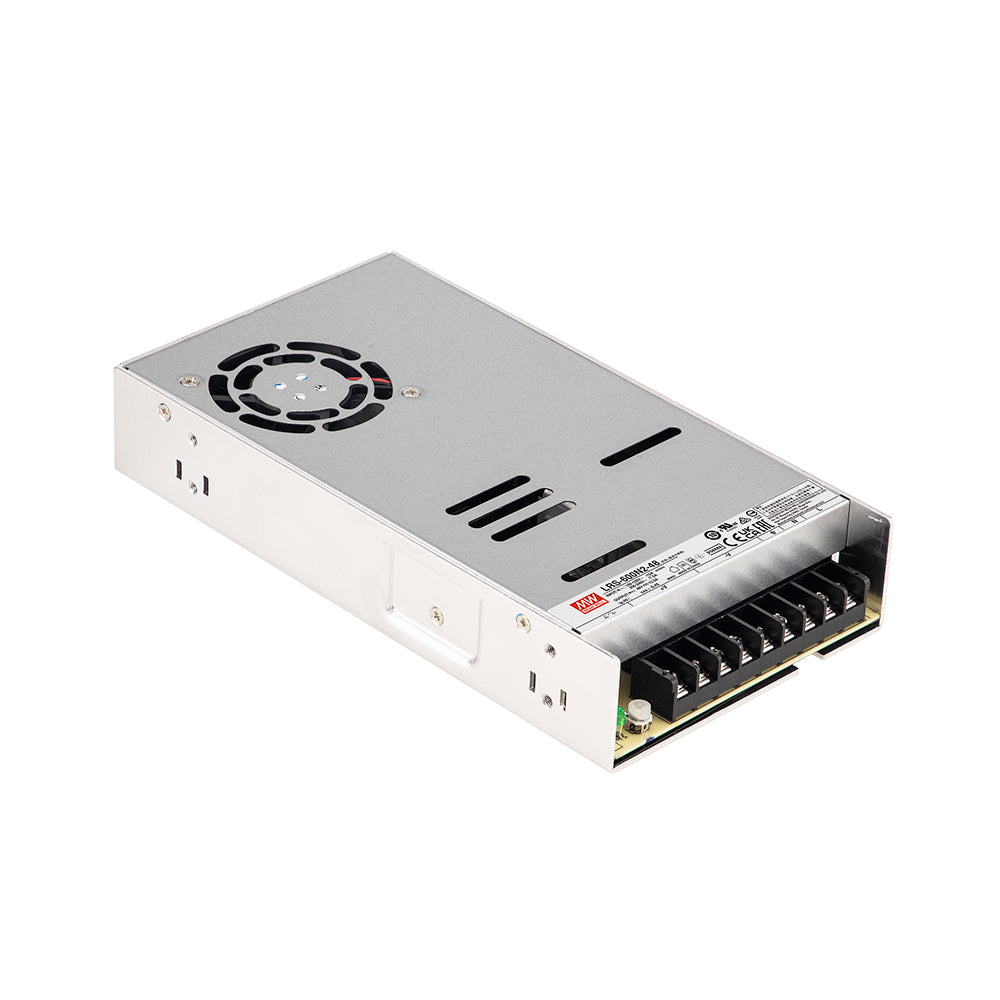

Mean Well LRS-600N2-24 Single Output High Peak Power Supply 600W 24V, 2 Times Peak Power
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LRS-600N2-24 Single Output High Peak Power Supply 600W 24...
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Forced air cooling
- ✓Built-in cooling Fan ON-OFF control
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 65℃
- ✓Operating altitude up to 2000 meters
- ✓3 years warranty
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBIS,BSMI,CB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~65°C
-
Warranty3 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.61 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
What industrial applications benefit most from the LRS-600N2-24 at 24V?
At 24V and 25A (600W) with 200% peak power, the LRS-600N2-24 is well-suited for 24V servo and stepper motor systems, large PLC panels with multiple output modules, pneumatic valve arrays, and conveyor drive controllers that experience high inrush during motor engagement.
How does the LRS-600N2-24 compare to the LRS-600N2-12 and LRS-600N2-48?
All LRS-600N2 models share the 225 × 124 × 41 mm case, 0.95 kg weight, 90–264VAC input, and 200% peak power. LRS-600N2-12 (600W, 50A), LRS-600N2-24 (600W, 25A), LRS-600N2-36 (597.6W, 16.6A), LRS-600N2-48 (600W, 12.5A). Select the 24V model for 24VDC bus systems.
What certifications does the LRS-600N2-24 hold?
The LRS-600N2-24 carries BIS, BSMI, CB, CE, CQC, EAC, TÜV, and UL certifications. This includes North American (UL), European (CE, TÜV), Chinese (CQC), Indian (BIS), Taiwanese (BSMI), and Eurasian (EAC) compliance marks.
What is the operating temperature range, and does it support operation in warm factory environments?
The LRS-600N2-24 operates from -25°C to +65°C. Continuous full-rated operation is supported up to +65°C ambient; industrial enclosures should be ventilated or thermally managed to stay below that threshold. The 5G vibration rating also suits mechanically active factory environments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LRS-600N2 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LRS-600N2-48 Single Output High Peak Power Supply 600W 48V, 2 Times Peak Power | 600W | 48V | 12.5A | Indoor | $136.93 | View |
| Mean Well LRS-600N2-36 Single Output High Peak Power Supply 597.6W 36V, 2 Times Peak Power | 597.6W | 36V | 16.6A | Indoor | $136.93 | View |
| Mean Well LRS-600N2-12 Single Output High Peak Power Supply 600W 12V, 2 Times Peak Power | 600W | 12V | 50A | Indoor | $136.93 | View |
