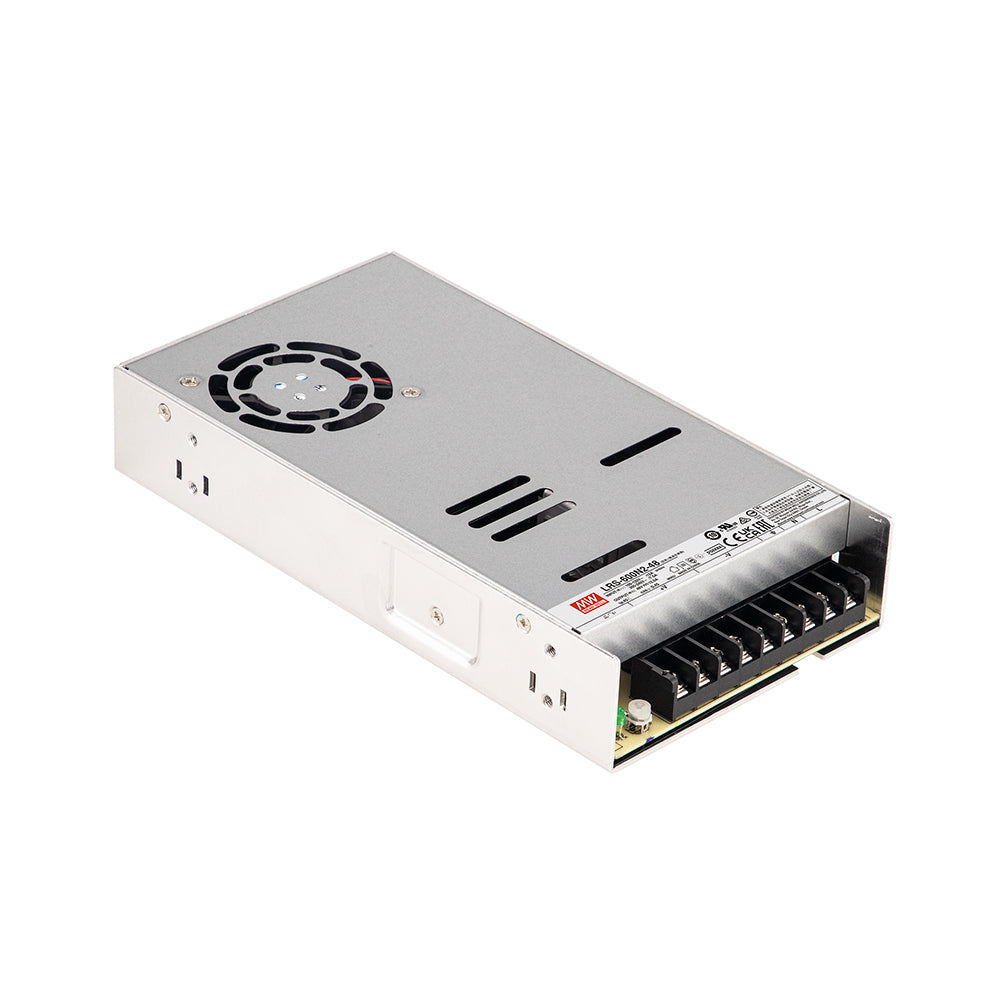

Mean Well LRS-600N2-48 Single Output High Peak Power Supply 600W 48V, 2 Times Peak Power

Features:

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• Up to 200% peak power capability
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Forced air cooling
• Built-in cooling Fan ON-OFF control
• Compliance to IEC/BS EN/EN61558-1 and 62368-1
• Withstand 5G vibration test
• Overvoltage category III(OVC III)
• High operating temperature up to 65℃
• Operating altitude up to 2000 meters
• 3 years warranty

General Specification

AC input voltage range

90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC)

AC inrush current (max.)

35A/115VAC 60A/230VAC

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Constant current limiting for output power >200% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover

Over-voltage protection

| 13.8 ~ 16.2V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Working temperature

-20 ~ +65℃ (Refer to "Derating Curve")

Safety standards

BS IEC/UL 62368-1, EAC TP TC 004, BIS IS13252(Part1):2010/IEC60950-1:2005(except for 48V), BSMI CNS15598-1,GB 4943.1, BS EN/EN61558-1,BS EN/EN61558-2-16, design refer to AS/NZS61558.1/2.16,AS/NZS62368.1

Dimension (LxWxH)

225x124x41mm
