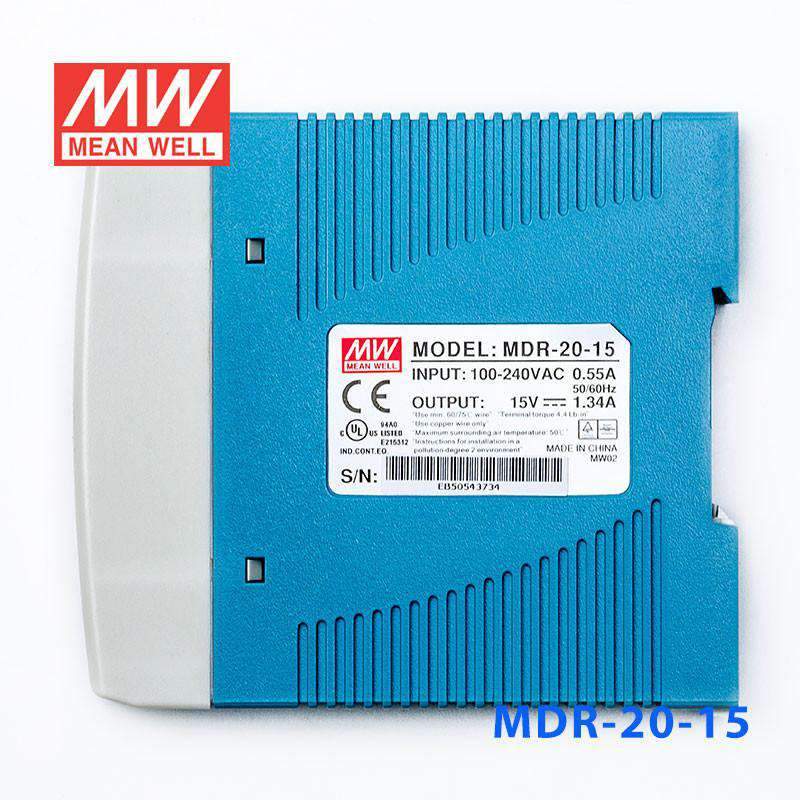

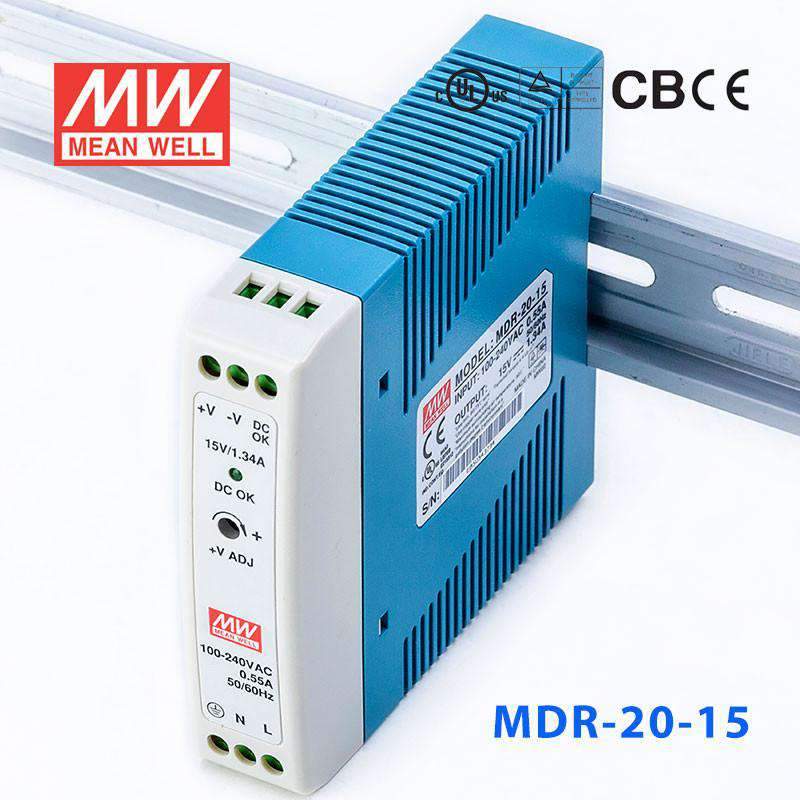

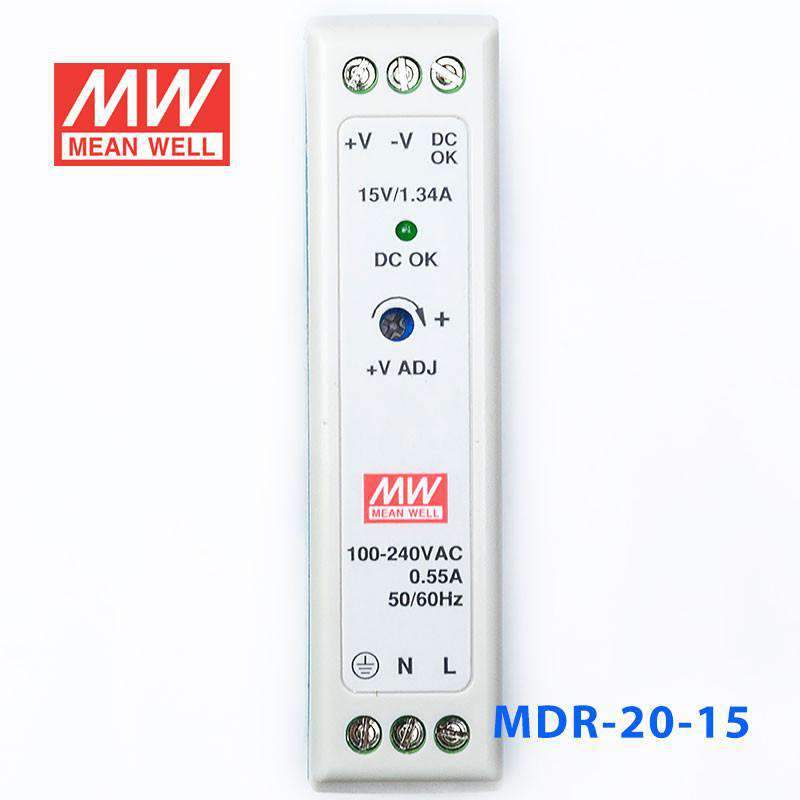

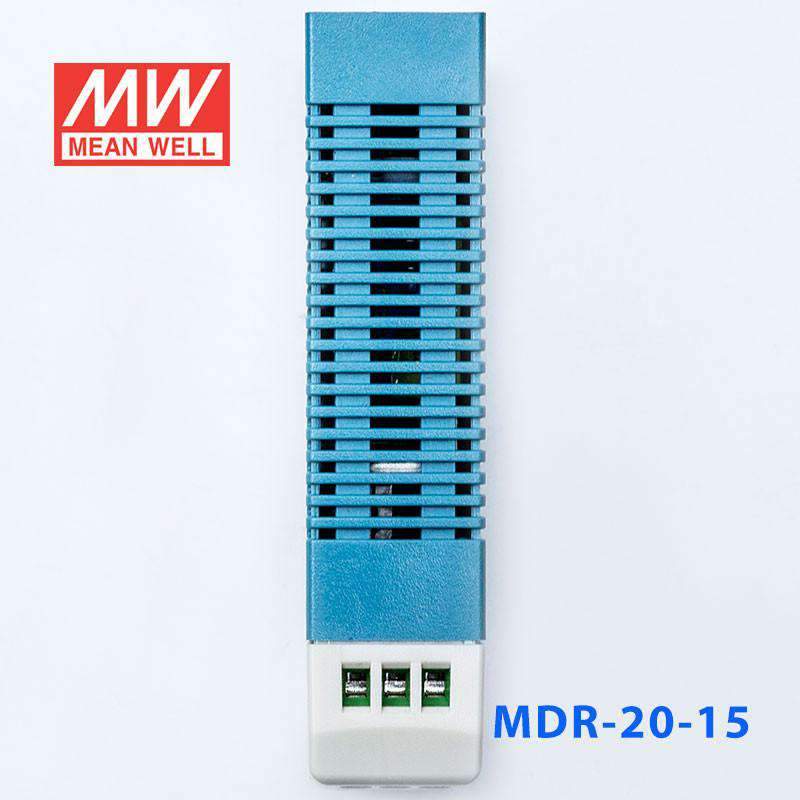

Mean Well MDR-20-15 Single Output Industrial Power Supply 20W 15V -...
Description
Description
The MDR-20 is a 20W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: IEC60068-2-6 UL508, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.34 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height0.89 in
-
Weight0.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-20-15 for 15V equipment in a control cabinet?
Yes, it is suitable for control cabinet applications that require 15V DC up to 1.34A. With a 20W rating and DIN rail format, it fits lighter-load industrial power distribution inside enclosures.
Is the MDR-20-15 appropriate for PLC or industrial automation systems that use 15V DC?
It can be a fit for PLC or automation subsystems that specifically require 15V DC and draw no more than 1.34A. The ultra slim 22.5 mm profile is useful where DIN rail space is tight.
Can this 15V DIN rail power supply be used for building management panels?
Yes, it can be used in building management panels where the controls or interface devices are designed for 15V DC and stay within 20W. The 85-264VAC input range also gives flexibility for standard AC-fed panel installations.
How does the MDR-20-15 compare with other MDR series options?
The 15V branch in the listed MDR siblings includes MDR-10-15 at 10W and 0.67A, and MDR-20-15 at 20W and 1.34A. Other MDR models in the same family are available in 5V, 12V, 24V, and 48V with power ratings from 10W to 96W.
Is the MDR-20-15 meant for exposed locations or enclosed industrial panels?
This model is better suited to protected industrial panels and control enclosures than exposed locations. Its rated operating temperature range is -20°C to +70°C, so the enclosure should remain within that range.
Other MDR-20 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MDR-20-12 Single Output Industrial Power Supply 20W 12V - DIN Rail | 20W | 12V | 1.67A | Indoor | $15.98 | View |
| Mean Well MDR-20-24 Single Output Industrial Power Supply 20W 24V - DIN Rail | 24W | 24V | 1A | Indoor | $15.55 | View |
| Mean Well MDR-20-5 Single Output Industrial Power Supply 20W 5V - DIN Rail | 15W | 5V | 3A | Indoor | $16.44 | View |
