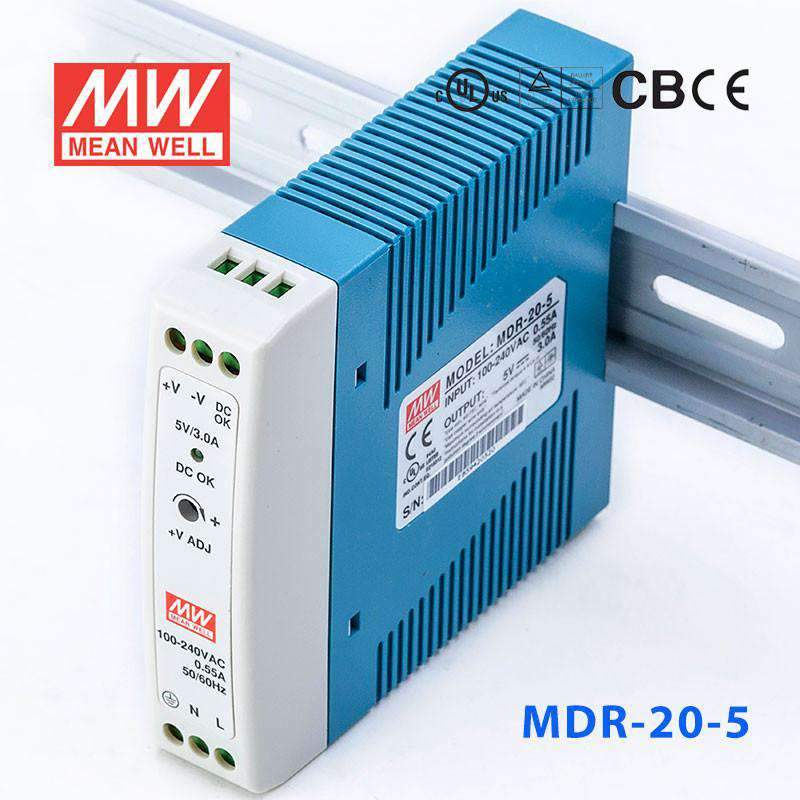

Mean Well MDR-20-5 Single Output Industrial Power Supply 20W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDR-20-5 Single Output Industrial Power Supply 20W 5V - D...
Description
Description
The MDR-20 is a 20W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: IEC60068-2-6 UL508, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height0.89 in
-
Weight0.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-20-5 for 5V control electronics in an industrial panel?
Yes, it is suitable for industrial panel electronics that require 5V DC up to 3A. Its 15W output makes it a fit for lower-power 5V control loads mounted on DIN rail inside an enclosure.
Is the MDR-20-5 appropriate for PLC support circuits or interface boards that need 5V DC?
It can be used where PLC support circuits, interface boards, or other automation electronics require 5V DC and the total draw stays within 3A. The ultra slim 22.5 mm profile helps conserve DIN rail space in compact cabinets.
Can this 5V DIN rail power supply be used in building management control cabinets?
Yes, it can be used in building management control cabinets when the 5V devices stay within the 15W output rating. The 85-264VAC input also allows it to be fed from a wide standard AC input range.
How does the MDR-20-5 compare with other 5V MDR models?
In the 5V branch of the MDR series, the MDR-10-5 is 10W and 2A, the MDR-20-5 is 15W and 3A, the MDR-40-5 is 30W and 6A, and the MDR-60-5 is 50W and 10A. Other siblings in the same family are also available in 12V, 15V, 24V, and 48V versions.
Is the MDR-20-5 meant for open environments or enclosed control cabinets?
This model is best used inside protected control cabinets and enclosures rather than exposed locations. Its operating temperature range is -20°C to +70°C, so enclosure conditions should stay within that range.
Other MDR-20 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MDR-20-12 Single Output Industrial Power Supply 20W 12V - DIN Rail | 20W | 12V | 1.67A | Indoor | $15.98 | View |
| Mean Well MDR-20-24 Single Output Industrial Power Supply 20W 24V - DIN Rail | 24W | 24V | 1A | Indoor | $15.55 | View |
| Mean Well MDR-20-15 Single Output Industrial Power Supply 20W 15V - DIN Rail | 20W | 15V | 1.34A | Indoor | $17.53 | View |
