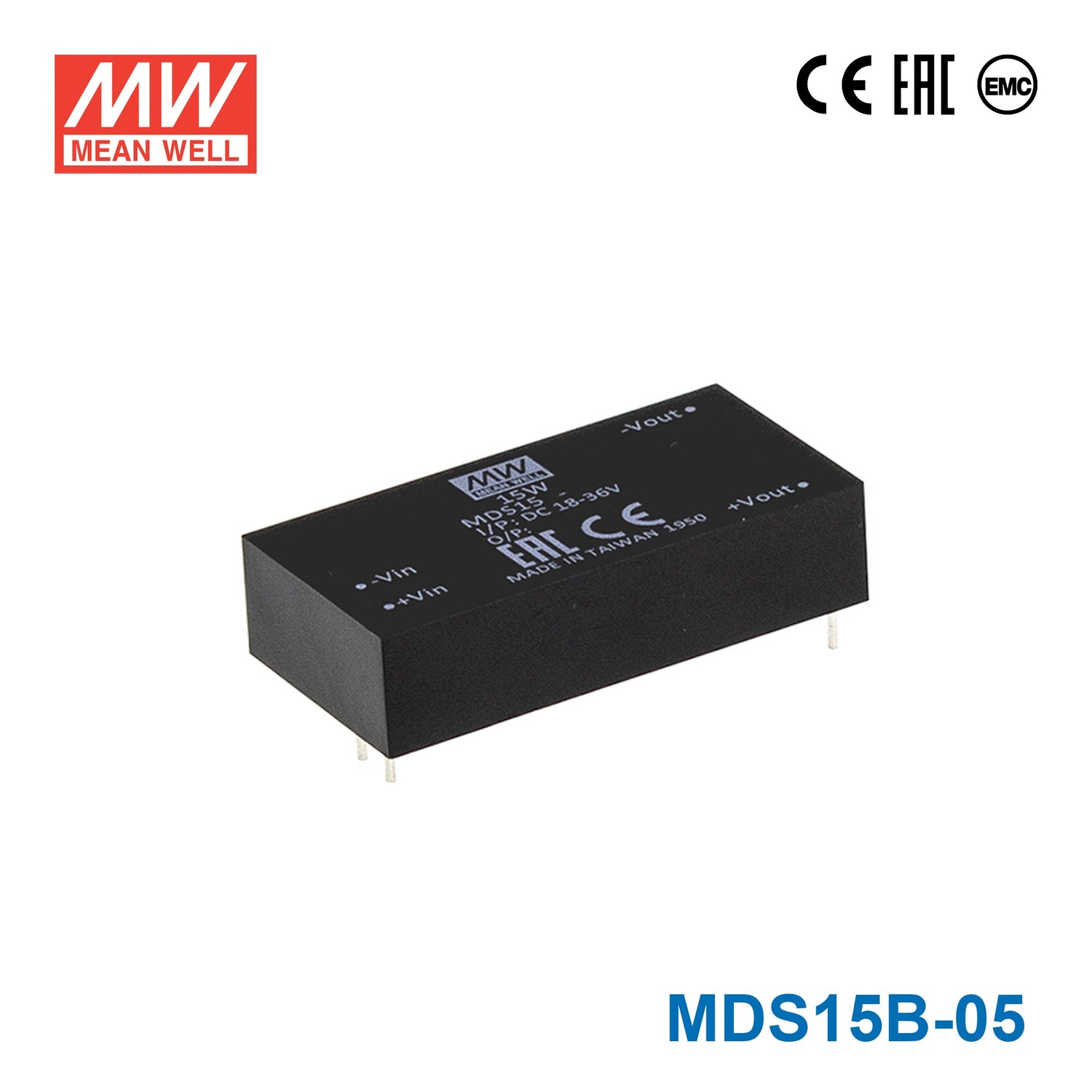

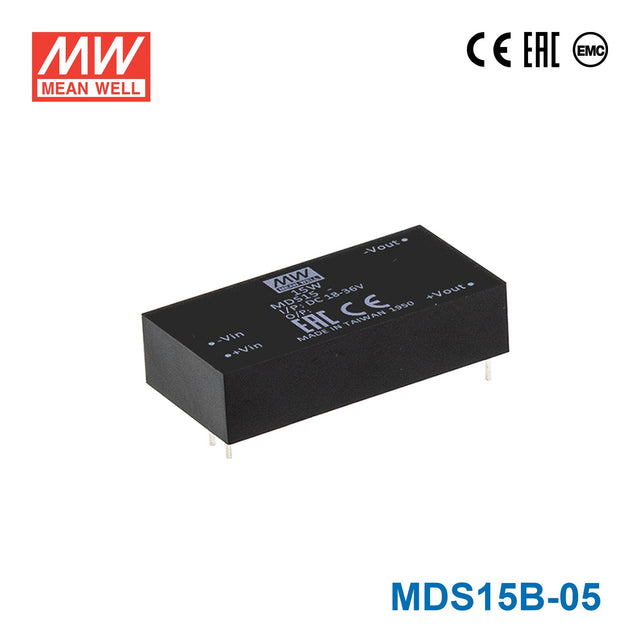

Mean Well MDS15B-05 DC-DC Converter - 15W - 18~36V in 5V out
Description
Description
Features
| DIP 2"x1" package with international standard pinout |
| 2:1 wide input range |
| Low patient leakage current <5µA |
| Wide operating temperature range -40~+90℃ |
| Medical safety approved(2xMOPP) according to IEC60601-1 |
| Protections: Short circuit(Continuous)/Overload/Input under voltage |
| 4000VAC high I/O isolation(Reinforced isolation) |
| 3 years warranty |
General Specification
| Voltage accuracy | ±1% |
| Efficiency | 88% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +90°C |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 70℃) |
| Dimension (LxWxH) (mm) | 50.8*25.4*12mm (2*1*0.47 inch) |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.47 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDS15B-05 for 5V embedded processors or logic boards in industrial equipment?
Yes, it delivers a constant 5V output rated for 15W and 3A, which suits many low-power embedded and control applications. The input source needs to be within the listed 18-36VAC range.
Is the MDS15B-05 suitable for powering 5V industrial communication or interface electronics?
It can be a good match for 5V control electronics that need constant-voltage output and draw no more than 3A. Its published power ceiling is 15W, with an 18-36VAC input range.
Can this model support 5V automation sensors or small controller subsystems?
For low-power 5V automation loads, the relevant limits are the 5V output, 3A current rating, and 15W total power. It is intended for applications fed from an 18-36VAC source, not for loads outside that input window.
Is the MDS15B-05 meant for outdoor service or only protected enclosures?
The temperature specification is -40C to +90C, so it supports a wide operating range. The provided specs do not list an IP rating, so they support temperature assessment but not a claim of outdoor or sealed-enclosure performance by themselves.
What is the difference between the MDS15B-05 and the other MDS15B converters?
The MDS15B family uses the same 18-36VAC input range and 15W rating across the series. Output options are 5V at 3A for MDS15B-05, 12V at 1.25A for MDS15B-12, 15V at 1A for MDS15B-15, and 24V at 625A for MDS15B-24.
