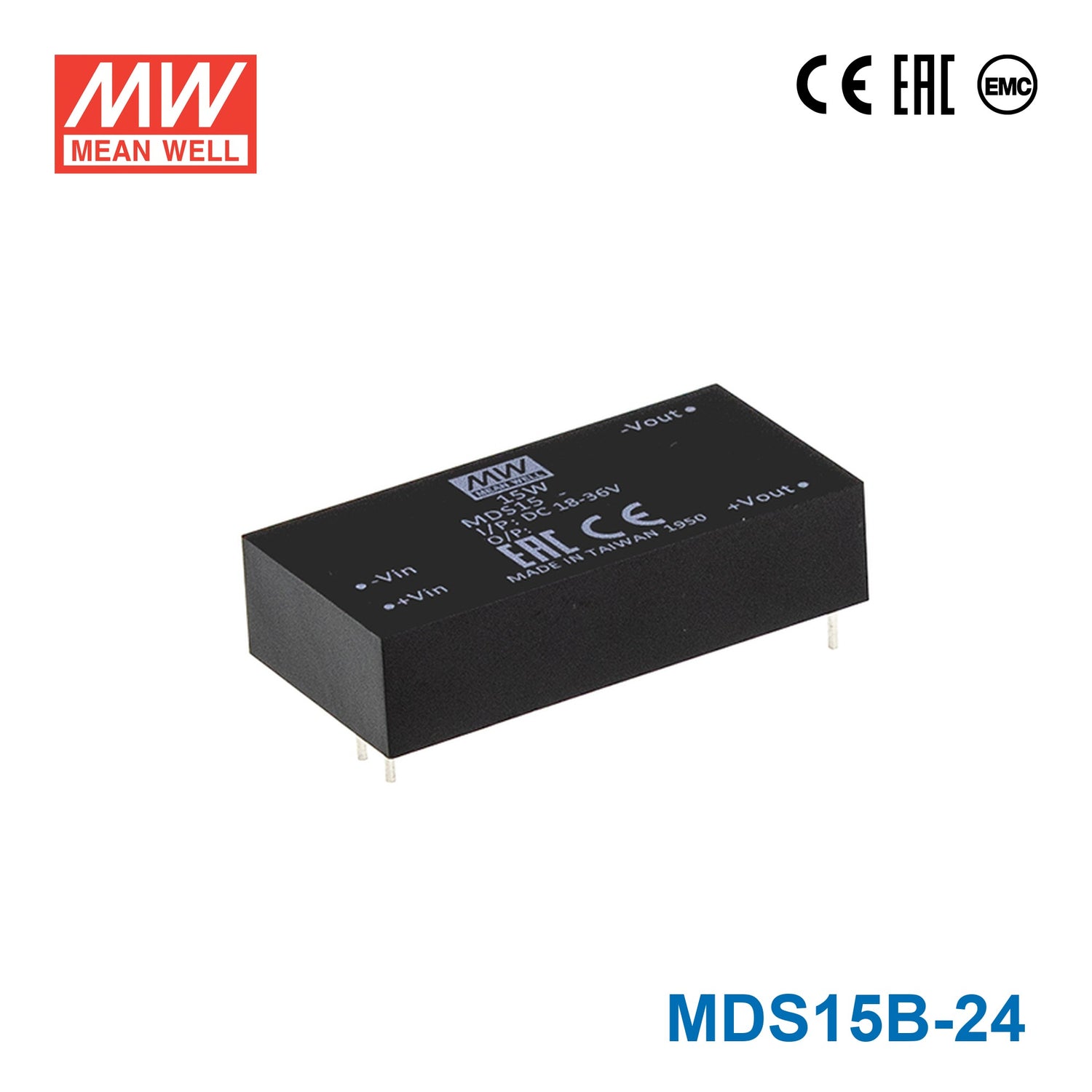

Mean Well MDS15B-24 DC-DC Converter - 15W - 18~36V in 24V out
Description
Description
Features
| DIP 2"x1" package with international standard pinout |
| 2:1 wide input range |
| Low patient leakage current <5µA |
| Wide operating temperature range -40~+90℃ |
| Medical safety approved(2xMOPP) according to IEC60601-1 |
| Protections: Short circuit(Continuous)/Overload/Input under voltage |
| 4000VAC high I/O isolation(Reinforced isolation) |
| 3 years warranty |
General Specification
| Voltage accuracy | ±1% |
| Efficiency | 88% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +90°C |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 70℃) |
| Dimension (LxWxH) (mm) | 50.8*25.4*12mm (2*1*0.47 inch) |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.47 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDS15B-24 for a 24V control or automation sub-circuit?
Yes, this converter provides a constant 24V output with 15W total power, so it can suit low-power automation, control, or embedded sub-circuits that need a regulated 24V rail. It is intended for systems with an 18-36VAC input range.
Is the MDS15B-24 suitable for industrial sensors or relays that run on 24V?
It can be used where the downstream load needs a constant 24V supply and the total load stays within the unit's 15W rating. That makes it more appropriate for lighter auxiliary sensor, relay, or interface loads than for higher-power 24V equipment.
Can this model be used in embedded or telecom-style equipment that has a 24V auxiliary bus?
Yes, it can fit embedded or communications equipment that needs a small constant-voltage 24V rail and accepts an 18-36VAC source. Its 50.8 x 25.4 x 12.0 mm form factor and 0.03 kg weight also support compact board-level or enclosure-level layouts.
Is the MDS15B-24 rated for outdoor or harsh ambient conditions?
The specified operating temperature is -40 C to +90 C, which supports demanding temperature conditions. However, no IP rating is provided, so the published specs do not indicate weatherproof or washdown protection and do not confirm outdoor exposure suitability.
What are the output differences across the MDS15B series?
The listed MDS15B family keeps the same 15W platform while changing output ratings. The siblings are MDS15B-05 at 5V and 3A, MDS15B-12 at 12V and 1.25A, MDS15B-15 at 15V and 1A, and MDS15B-24 at 24V and 625A.
