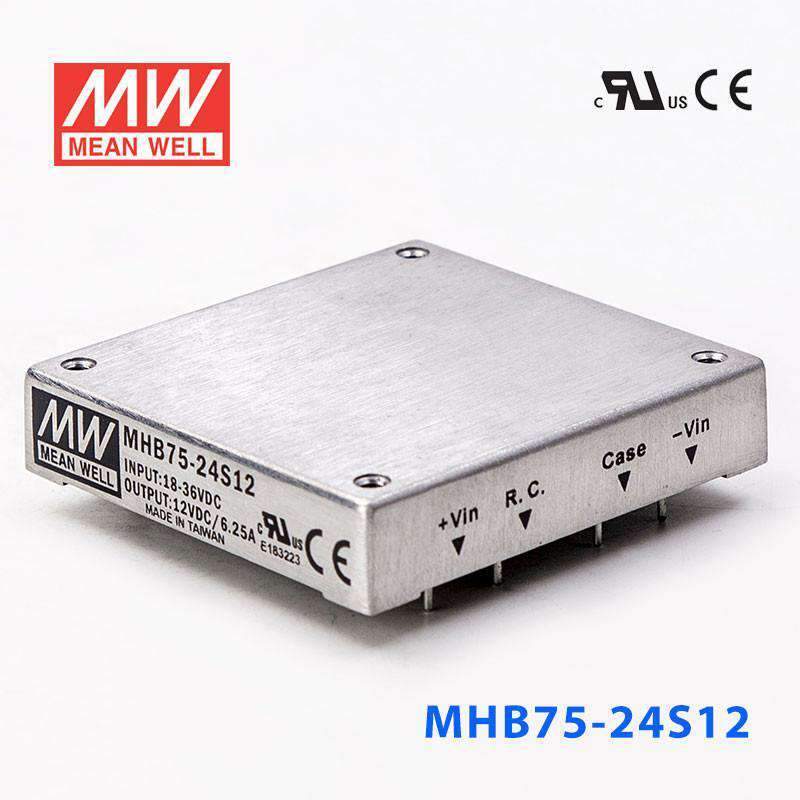

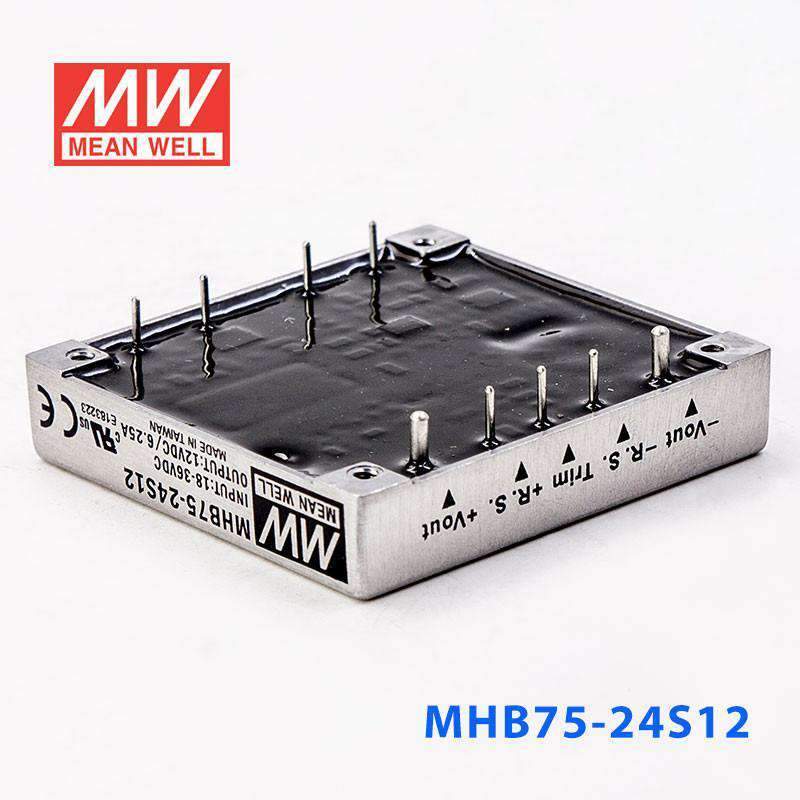

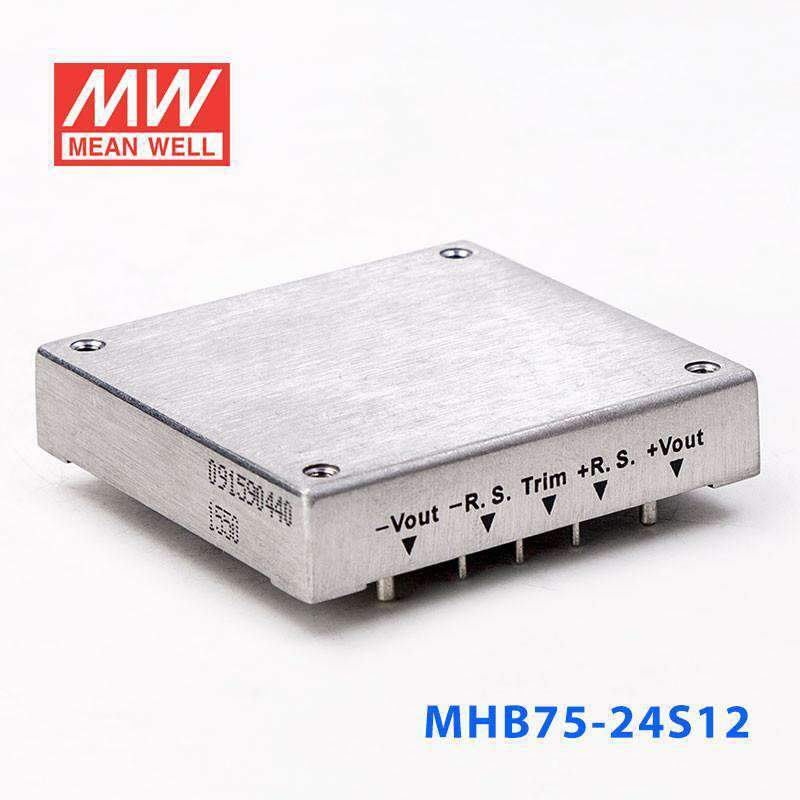

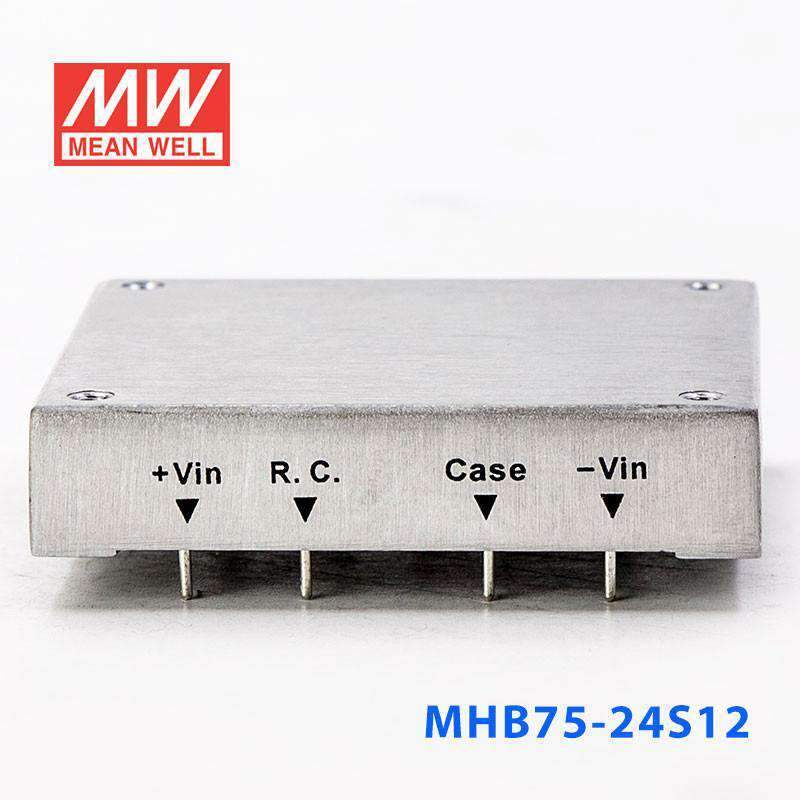

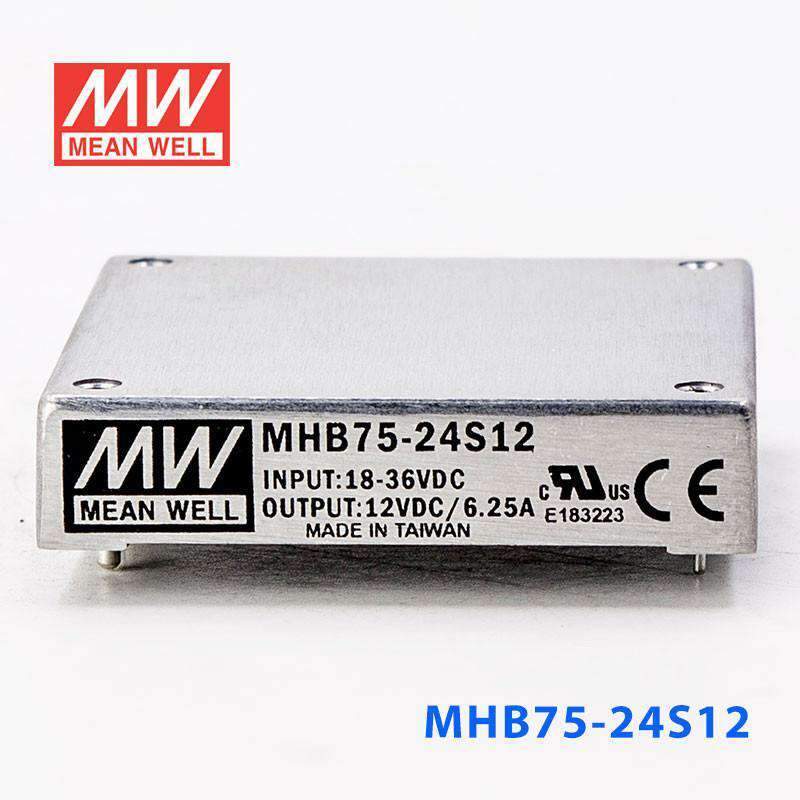

Mean Well MHB75-24S12 DC-DC Converter - 75W - 18~36V in 12V out

SKU:

MHB75-24S12

$61.42 USD ~~$70.43~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Half-brick size (2.28" 2.4" 0.5") with industry standard pin out

2:1 wide input range

Protections: Short circuit / Over current / Over voltage / Over temperature

High efficiency up to 89%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense function

Trimming output ±10%

Five-sided shield metal case

Optional heat sinks for extended operating temperature

Output 2.5V/3.3V/15V available

Approvals: UL / CUL / CE

3 years warranty

General Specification

Over current protection	110%~150% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed
Over temperature protection	Case temperature 100°C±5°C, Over temperature protection enabled
Over voltage protection	115%~140%; Protection mode: Output Voltage clamping by zener diode
Withstand voltage	I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC
Working temperature	-40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve)
Safety standards	UL60950-1 approved
EMC standards	With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹)
Dimension (LxWxH)(mm)	57.9 x 61 x 12.7 mm

Specifications

Brand

Mean Well
Series

MHB Series
Power Rating

75 Watt
Output Voltage

12 Volt
Rated Current

6.25 Ampere
Input Voltage

18V~36V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,EMC,RCM,TUV
Operation Mode

Constant Voltage
Operating Temperature

-55°C~105°C
Warranty

3 Year
Length

2.4 in
Width

2.28 in
Height

0.5 in
Weight

0.2 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MHB75-24S12 for 12V automation and control equipment?

This converter is designed for 12V constant-voltage loads and can provide up to 6.25A within a 75W rating. That makes it suitable for 12V automation, control, and embedded devices powered from an 18-36VAC input source.

Is the MHB75-24S12 a good match for 12V embedded systems in industrial enclosures?

It can be a good fit where the system requires a regulated 12V DC rail at up to 6.25A. The compact 61.0 × 57.9 × 12.7 mm package is also useful in dense equipment layouts or space-constrained industrial enclosures.

Can this 12V model be used for instrumentation or monitoring hardware?

For instrumentation or monitoring hardware that runs on 12V constant voltage, the 75W output and 6.25A current rating define the usable load range. Its broad -55°C to +105°C operating temperature range also supports use in equipment exposed to demanding ambient conditions.

Is the MHB75-24S12 suitable for outdoor equipment cabinets?

The stated operating temperature range is -55°C to +105°C, which supports use across severe temperature conditions. However, no IP rating is listed in the provided specs, so outdoor cabinet suitability against water or dust ingress cannot be verified from this data alone.

How does the MHB75-24S12 differ from the other MHB75 output options?

Across the listed siblings, the output choices are 5V at 15A, 12V at 6.25A, and 24V at 3.13A, with each model rated at 75W. This specific version combines the 18-36VAC input range with the 12V, 6.25A output, while the sibling groups repeat those three outputs for 9-18VAC and 36-72VAC input ranges.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well MHB75-48S24 DC-DC Converter - 75W - 36~72V in 24V out	75W	24V	3.13A	Indoor	$70.43	View
Mean Well MHB75-48S12 DC-DC Converter - 75W - 36~72V in 12V out	75W	12V	6.25A	Indoor	$70.43	View
Mean Well MHB75-48S05 DC-DC Converter - 75W - 36~72V in 5V out	75W	5V	15A	Indoor	$70.43	View
Mean Well MHB75-24S24 DC-DC Converter - 75W - 18~36V in 24V out	75W	24V	3.13A	Indoor	$70.43	View
Mean Well MHB75-24S05 DC-DC Converter - 75W - 18~36V in 5V out	75W	5V	15A	Indoor	$70.43	View
Mean Well MHB75-12S24 DC-DC Converter - 75W - 9~18V in 24V out	75W	24V	3.13A	Indoor	$66.92	View
Mean Well MHB75-12S12 DC-DC Converter - 75W - 9~18V in 12V out	75W	12V	6.25A	Indoor	$69.27	View
Mean Well MHB75-12S05 DC-DC Converter - 75W - 9~18V in 5V out	75W	5V	15A	Indoor	$70.43	View
