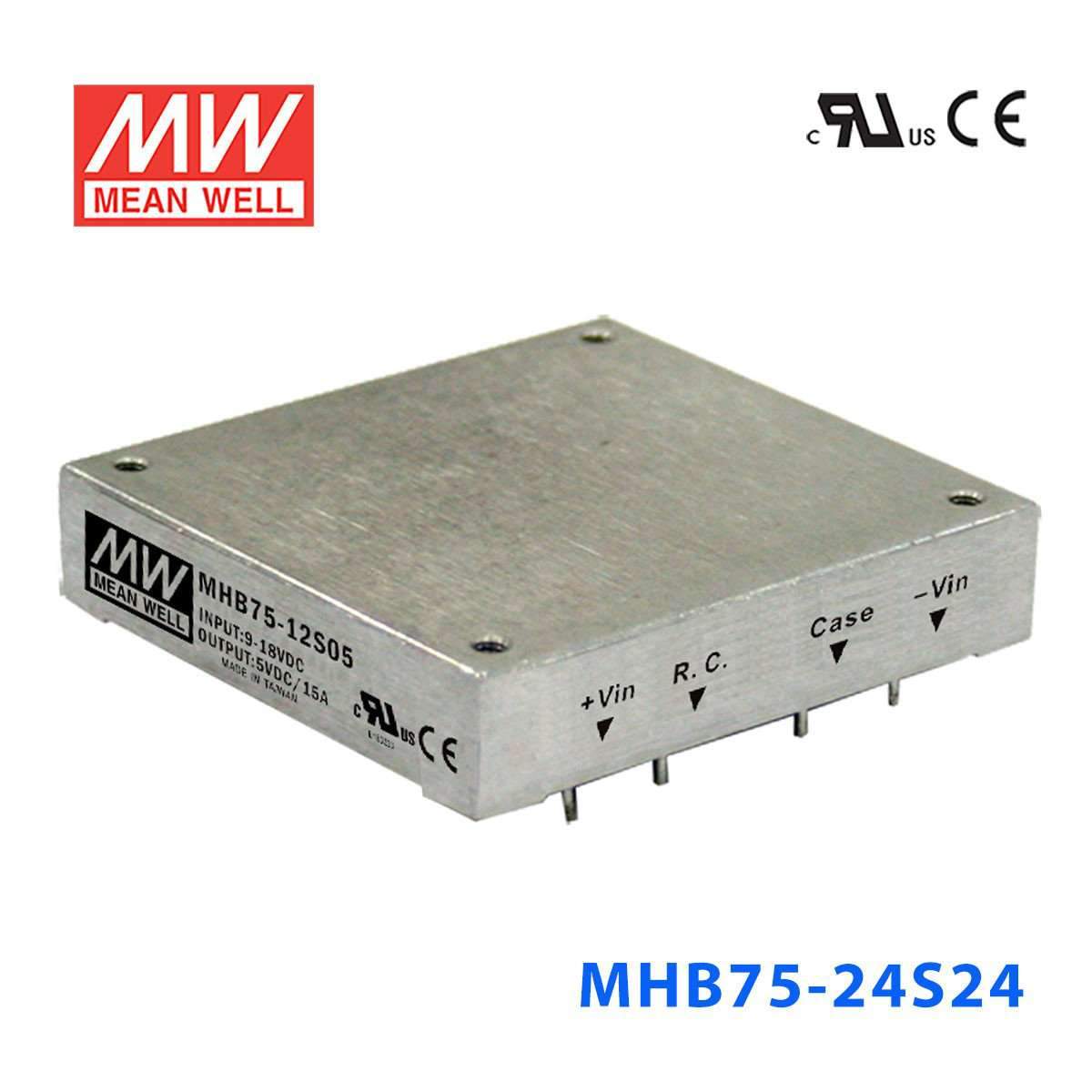

Mean Well MHB75-24S24 DC-DC Converter - 75W - 18~36V in 24V out 3.13A
Overview
MHB75-24S24 is the 24V output model of this series: rated power 75W, typical efficiency 88%.
Features
- Half-brick size (2.28"×2.4"×0.5") with industry standard pin out
- 2:1 wide input range
- Protections: Short circuit / Over current / Over voltage / Over temperature
- High efficiency up to 89%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in remote sense function
- Trimming output ±10%
- Five-sided shield metal case

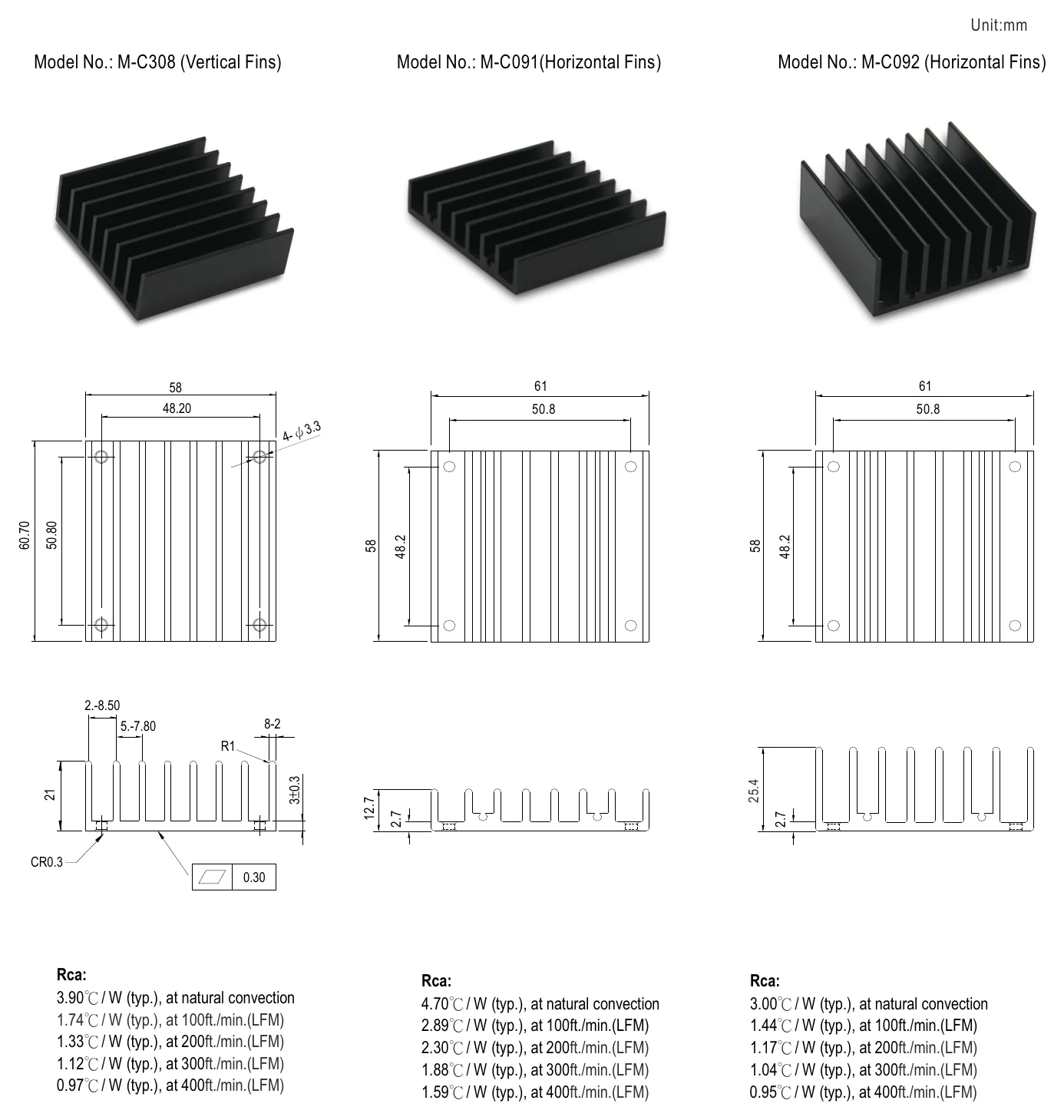

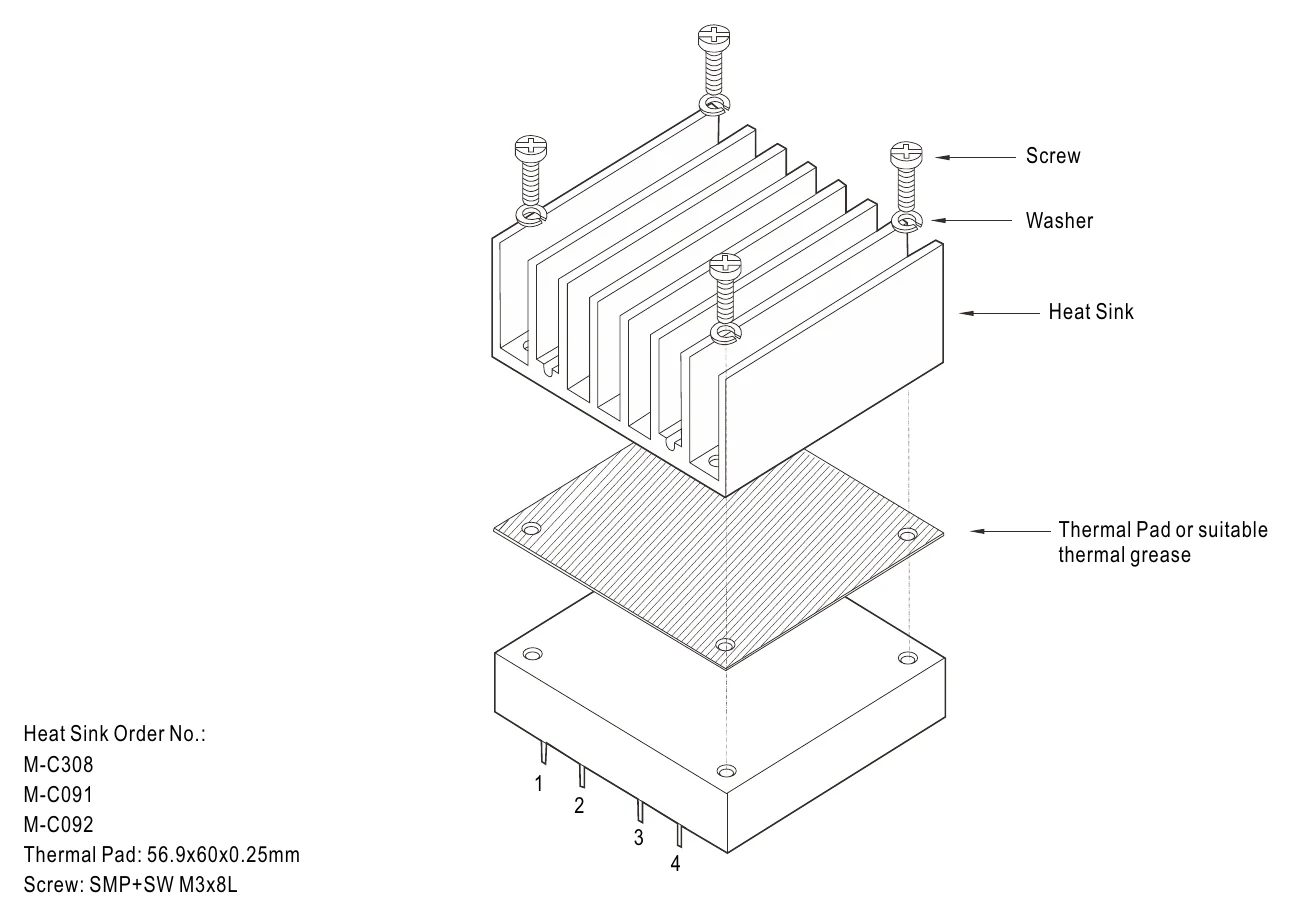

- Optional heat sinks for extended operating temperature
- Output 3.3V/15V available
- Approvals: UL / CUL / EAC / CE / UKCA
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CURRENT RANGE
- 0 ~ 3.13A
- RATED POWER
- 75W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ACCURACYNote.3
- ±1.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.2%
- SWITCHING FREQUENCY (Typ.)
- 400KHz for 12/24Vin, 300KHz for 48Vin
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10%
- EXTERNAL CAPACITIVE LOAD (max.)
- 2000uF
INPUT
- RATED DC INPUT
- 24VDC
- VOLTAGE RANGE
- 18 ~ 36VDC
- SURGE VOLTAGE (100ms max.)
- 50VDC
- UNDER VOLTAGE LOCKOUT
- Power up: 17VDC, Power down: 16VDC
- EFFICIENCY (Typ.)
- 88%
- DC CURRENT FULL LOAD
- 3650mA
- DC CURRENT NO LOAD
- 50mA
- FILTER
- Pi-network
PROTECTION
- OUTPUT OVER CURRENT
- 110 ~ 150% rated output power Protection type : Over current limiting, recovers automatically after fault condition is removed
- OUTPUT OVER VOLTAGE (Typ.)
- 115 ~ 140% rated output voltage Protection type : Output voltage clamp by TVS diode
- OUTPUT SHORT CIRCUIT
- Protection type : Can be continuous, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- 100℃±5℃of case temperature
FUNCTION

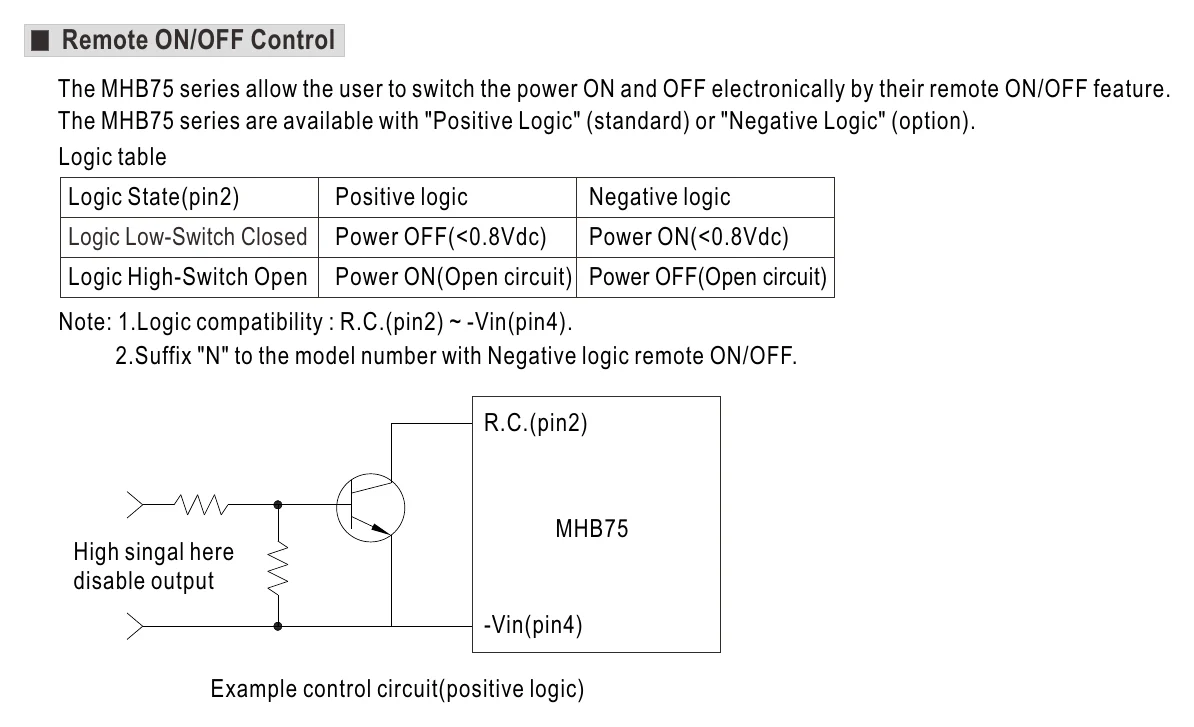

- REMOTE CONTROL
- Please refer to "Remote ON/OFF Control" for details
OPERATING

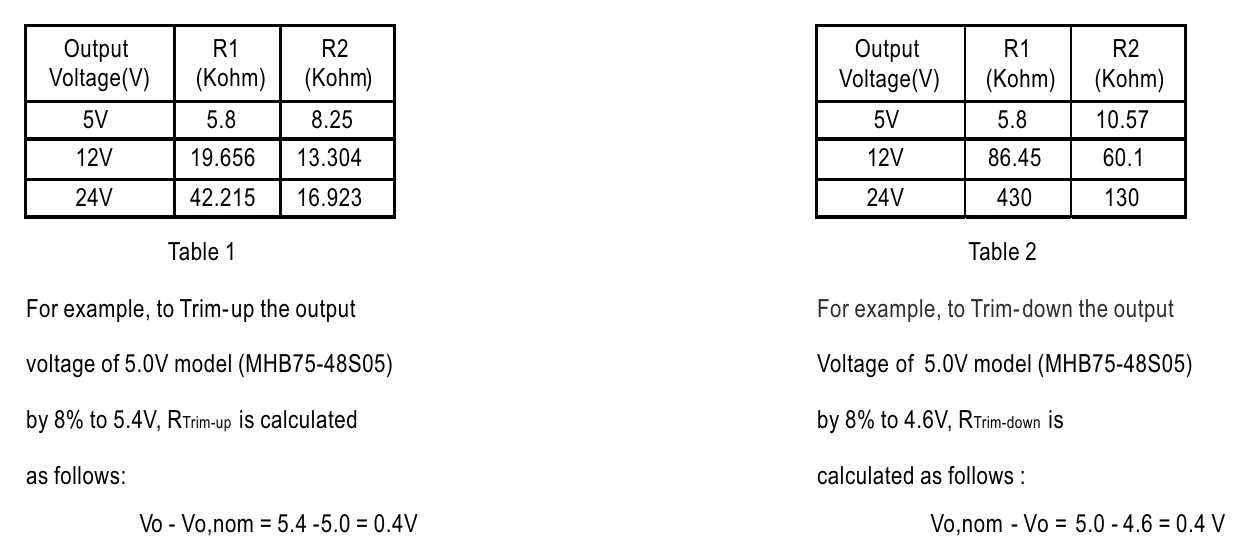

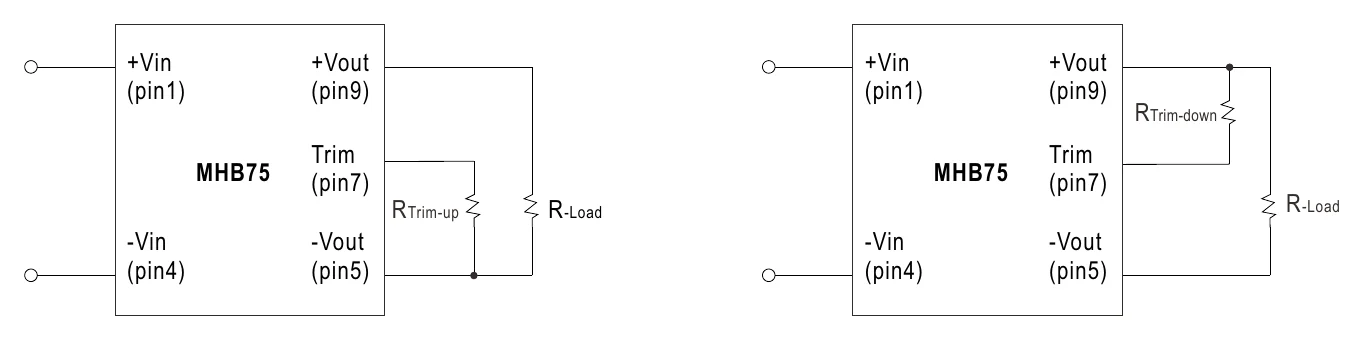

- OUTPUT TRIMMING
- ±10%, Please refer to "External Output Trimming" for details
ENVIRONMENT
- WORKING TEMPERATURE (Typ.)

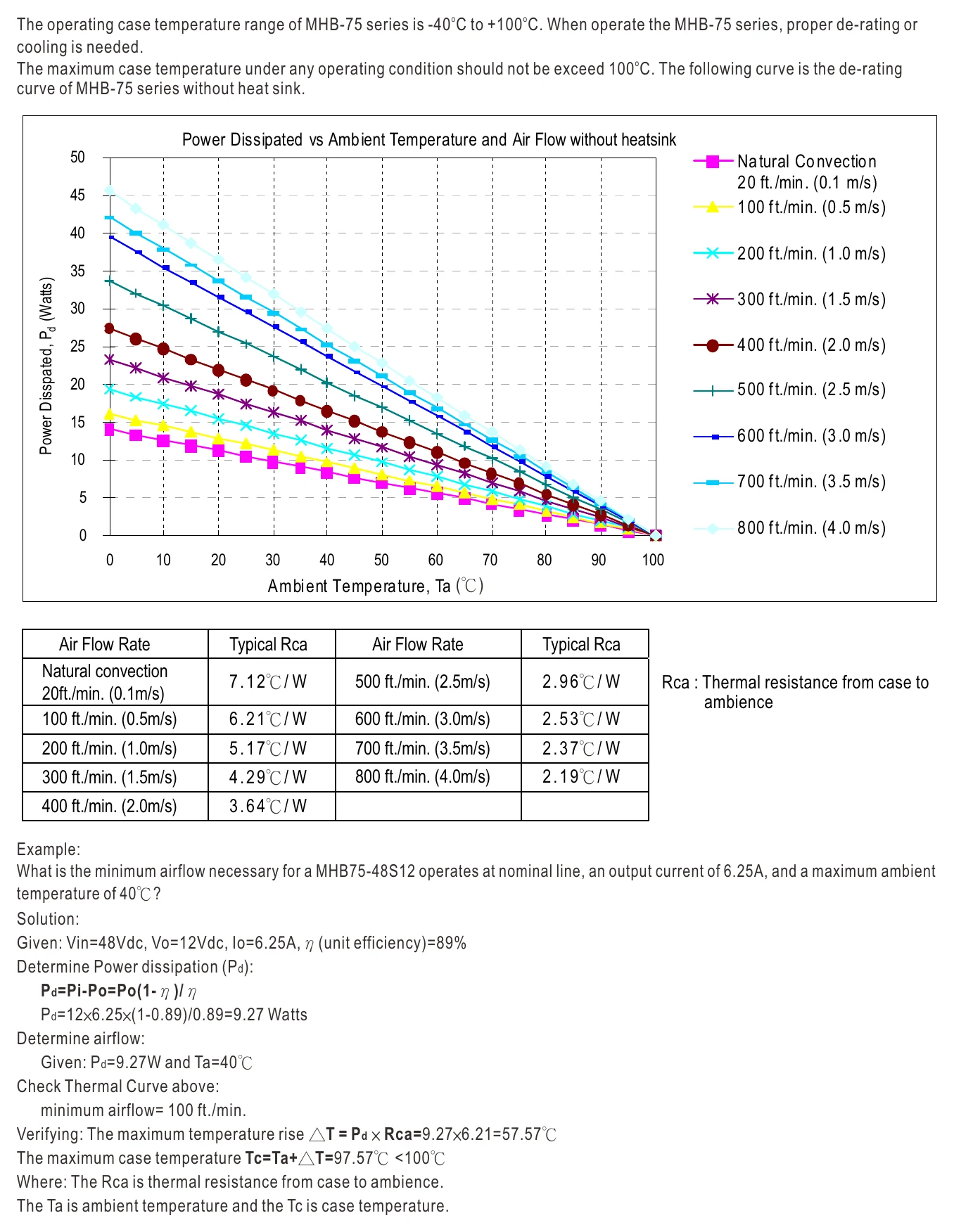

- -40 ~ +100℃ ; Thermal shutdown at 100℃±5℃of case temperature (please refer to "Thermal Curve")
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -55 ~ +105℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
- ISOLATION VOLTAGE
- I/P-O/P:1500VDC, I/P-Case:1500VDC, O/P-Case:1500VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8; BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- CASE MATERIAL
- Aluminum
- MTBF
- 1000K hrs typ. MIL-HDBK-217F (25℃)

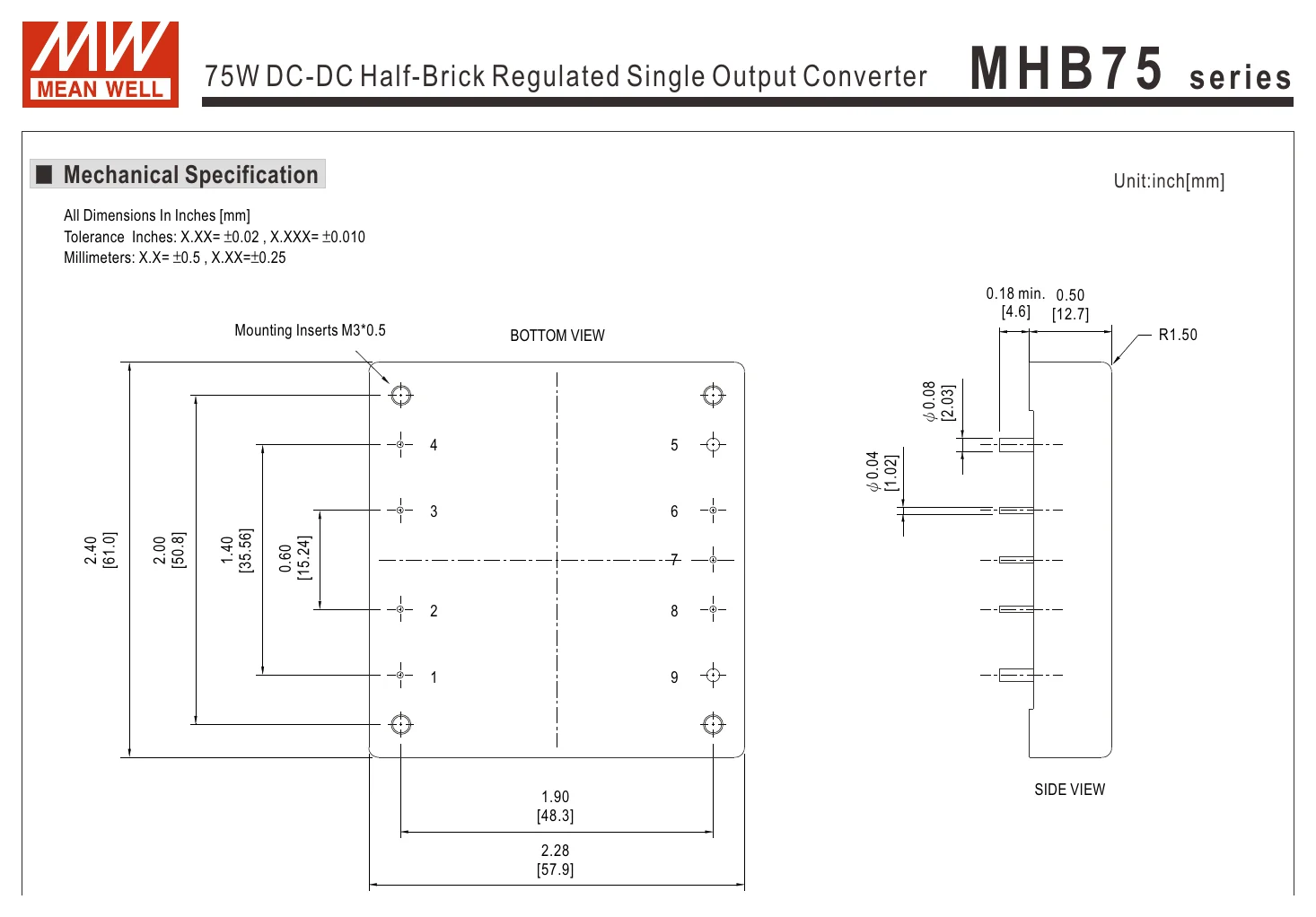

- DIMENSION
- 57.9*61*12.7mm (2.28"*2.40"*0.5") (L*W*H)

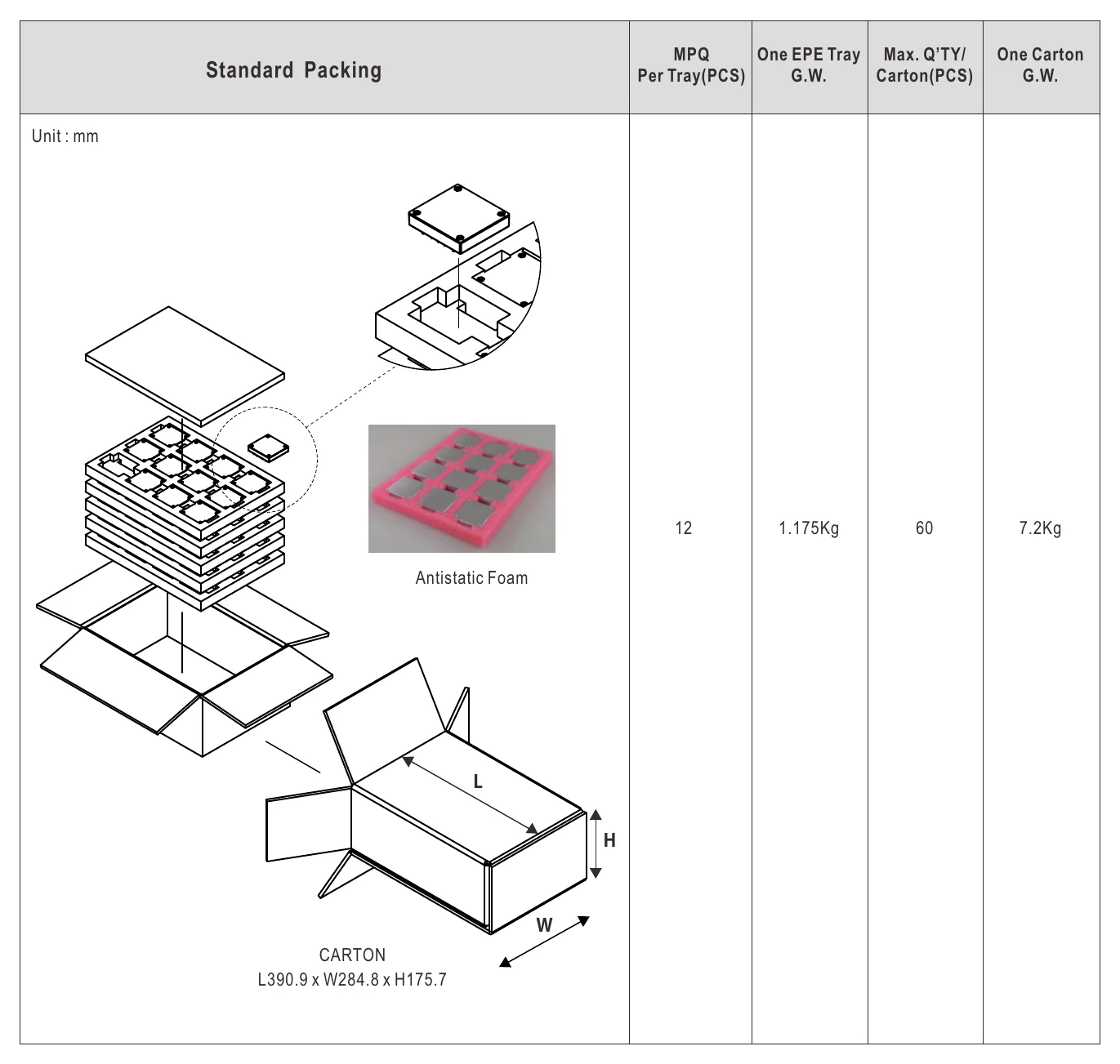

- PACKING
- 95g ; 12pcs/EPE, 60pcs/5 per carton
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 1uF ceramic & 10uF tantalum capacitor across output.
- 3. The power supply need to connect "+Vout" to "+R.S" and "-Vout" to "-R.S".
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
Technical drawings
Downloads
FAQ
Can I use the MHB75-24S24 for 24V industrial automation devices?
Yes, it is intended for 24V constant-voltage loads up to 3.13A and 75W. That makes it suitable for industrial automation devices, control electronics, or embedded systems that require a regulated 24V DC output from an 18-36VDC input range.
Is this converter appropriate for 24V monitoring or control modules in compact equipment?
It can fit compact equipment because the housing measures 61.0 × 57.9 × 12.7 mm and weighs 95 g. Electrically, it provides a 24V constant-voltage output with up to 3.13A available.
Can the MHB75-24S24 be used in equipment exposed to very hot or very cold operating conditions?
The specified operating range is -40°C to +100°C case temperature, with thermal shutdown at 100°C ±5°C. For 24V loads within 75W and 3.13A in hot or cold environments, apply derating or cooling (airflow or the optional heat sink) per the thermal curve.
Is the MHB75-24S24 rated for outdoor installation?
The specs give an operating range of -40°C to +100°C case temperature, with thermal shutdown at 100°C ±5°C, but they do not include an IP rating. Without an IP rating in the published data, outdoor exposure or wet-location suitability cannot be confirmed here.
What separates the MHB75-24S24 from the other models in this family?
This version uses an 18-36VDC input range and provides 24V at 3.13A, all within the common 75W family rating. The sibling models cover the same 75W platform in three output levels, 5V 15A, 12V 6.25A, and 24V 3.13A, repeated across 9-18VDC, 18-36VDC, and 36-75VDC input groups.
