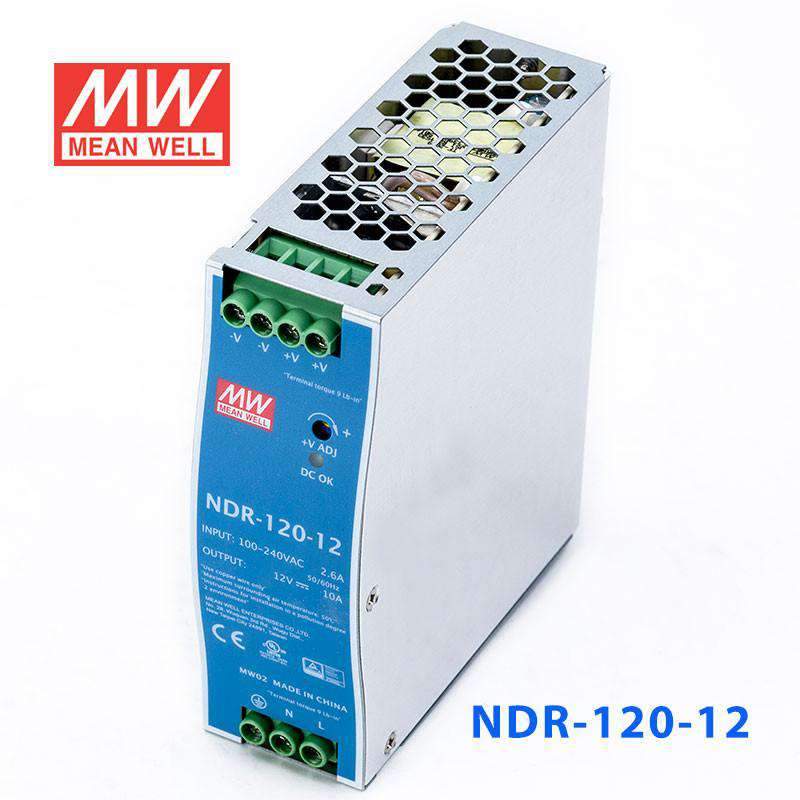

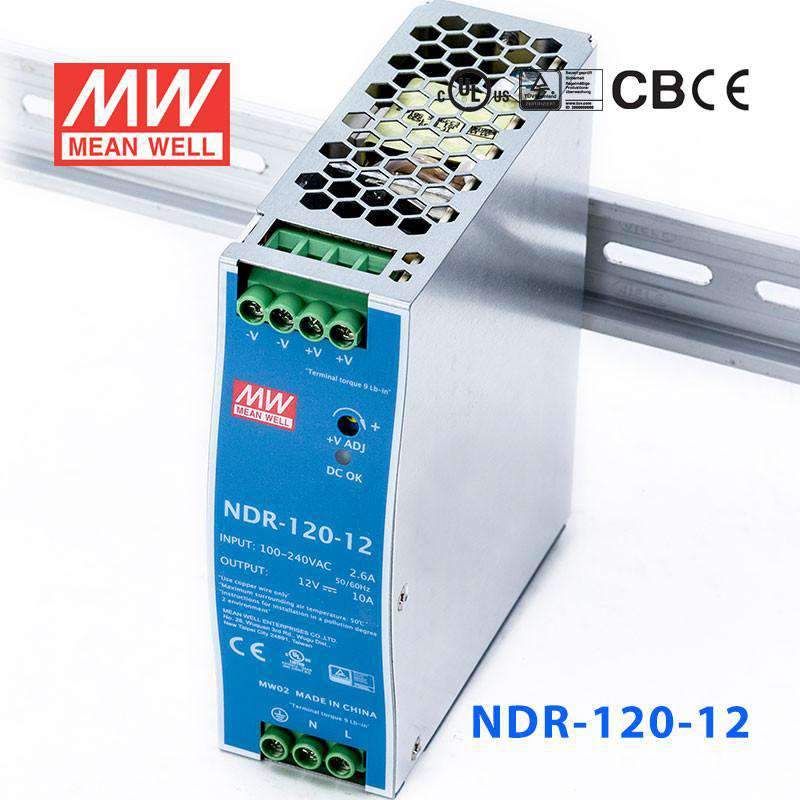

Mean Well NDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail

metal case, economical model, slim size, EMC EN55022 class B

SKU:

NDR-120-12

Model

75W 12V

$30.01 USD

SKU: NDR-75-12

120W 12V

$35.00 USD

SKU: NDR-120-12

Product variants

$35.00 USD ~~$36.55~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

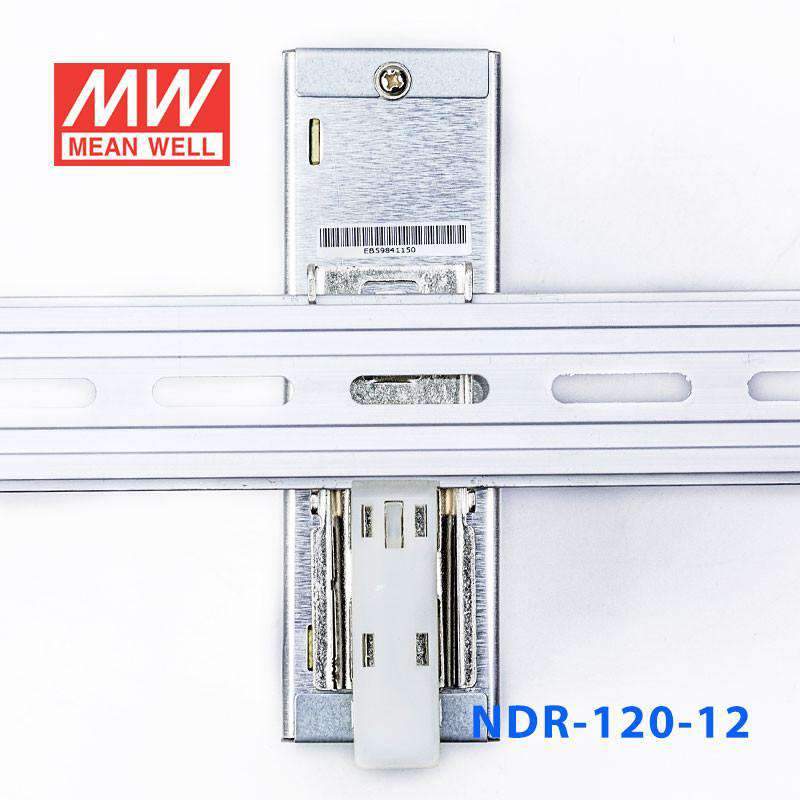

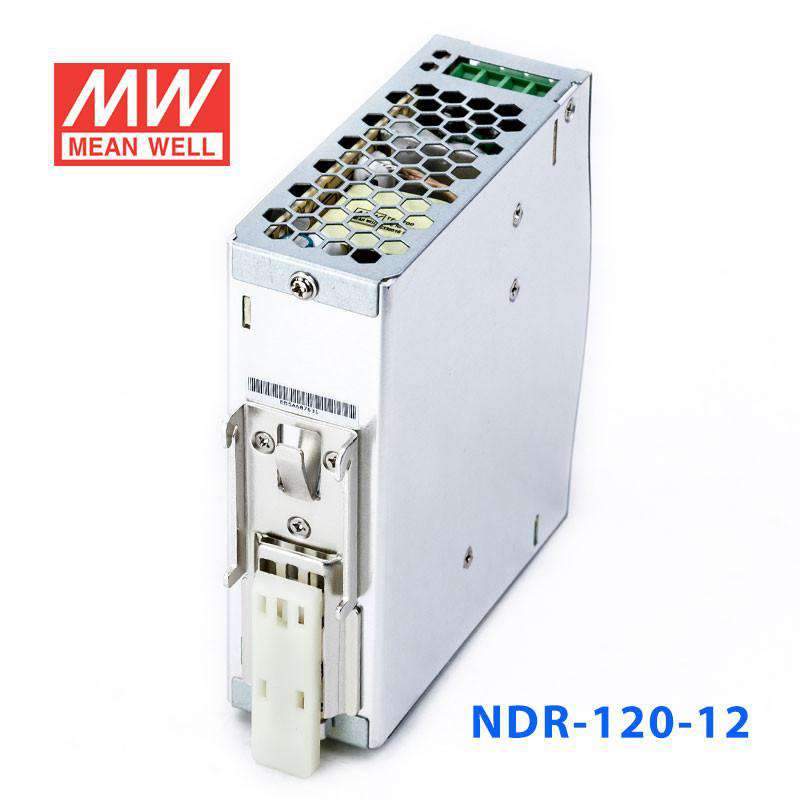

Can be installed on DIN rail TS35 / 7.5 or 15

UL508 (industrial control equipment) listed

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

3 years warranty for NDR series
2 years warranty for EDR series

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range	10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+70!aC (refer to output derating curve
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), EN61204-3

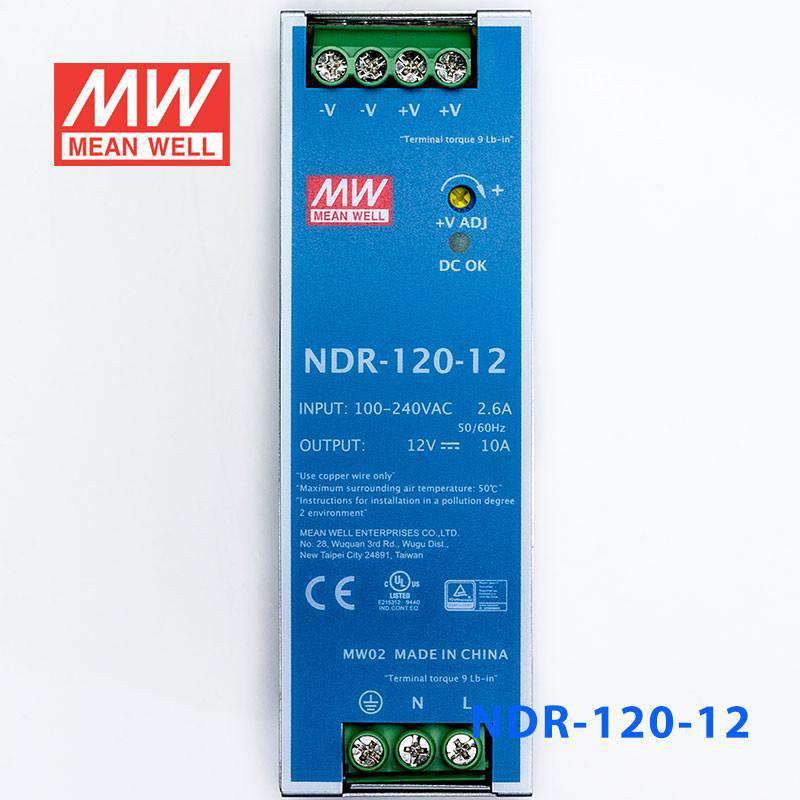

Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	40x 125.2x 113.5

Specifications

Brand

Mean Well
Series

NDR Series
Power Rating

120 Watt
Output Voltage

12 Volt
Rated Current

10 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,cUL,EAC,RCM,TUV
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

4.93 in
Width

4.47 in
Height

1.57 in
Weight

1.32 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the NDR-120-12 for 12V PLC I/O modules and relays in a control panel?

Yes, this model is a 12V DIN rail power supply rated for 120W and 10A, which aligns with 12V control-panel loads. Its slim 40.0 mm profile and DIN rail form factor also make it practical for industrial automation cabinets where space is limited.

Is the NDR-120-12 a good fit for 12V building management or panel-based control systems?

It can be used where the control system requires a 12V DC supply and the total load stays within 120W or 10A. The 90-264VAC input range also suits sites that need one DIN rail supply for a wide AC input range inside a control enclosure.

Can this power supply be used for 12V industrial automation accessories inside a DIN rail cabinet?

Yes, it is intended for DIN rail mounting and is suited to protected cabinet applications that use 12V DC. The metal case, slim size, and EMC EN55022 class B feature make it relevant for enclosed automation panels where orderly DIN rail layout matters.

How does the NDR-120-12 compare with other Mean Well NDR DIN rail models?

Within the listed siblings, the NDR-120-12 is 120W, 12V, 10A. Other options are NDR-120-24 at 120W, 24V, 5A; NDR-120-48 at 120W, 48V, 2.5A; NDR-240-24 at 240W, 24V, 10A; NDR-240-48 at 240W, 48V, 5A; NDR-480-24 at 480W, 24V, 20A; NDR-480-48 at 480W, 48V, 10A; NDR-75-12 at 75.6W, 12V, 6.3A; NDR-75-24 at 76.8W, 24V, 3.2A; and NDR-75-48 at 76.8W, 48V, 1.6A.

Can the NDR-120-12 be used in hot or cold control cabinet environments?

The specified operating temperature range is -20°C to +70°C, so it covers a broad range of indoor cabinet conditions. No IP rating is provided in the listed specs, so it is best suited to protected control cabinets or enclosures rather than exposed outdoor or washdown areas.
