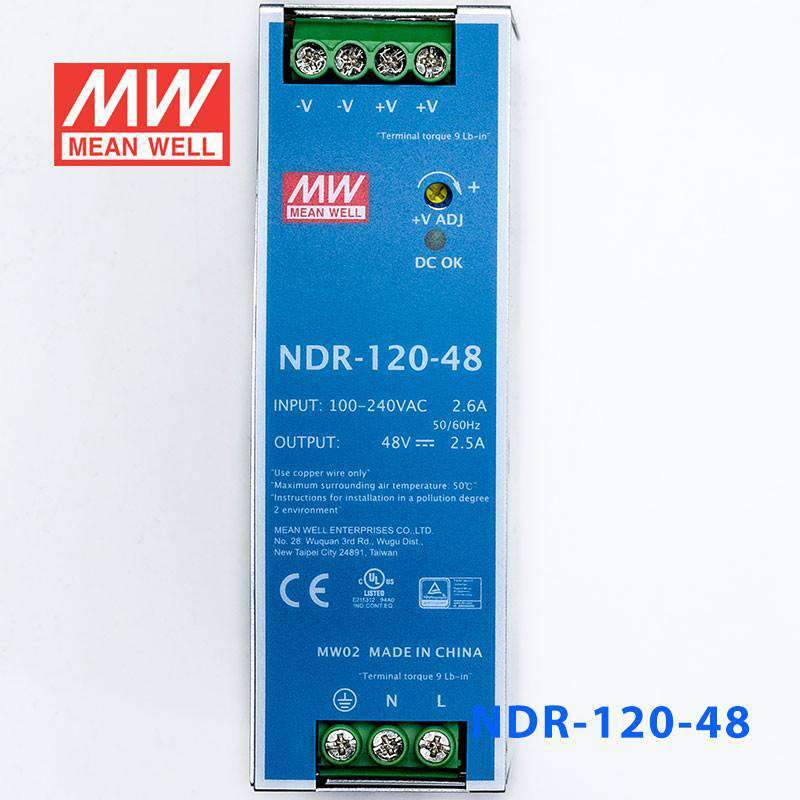

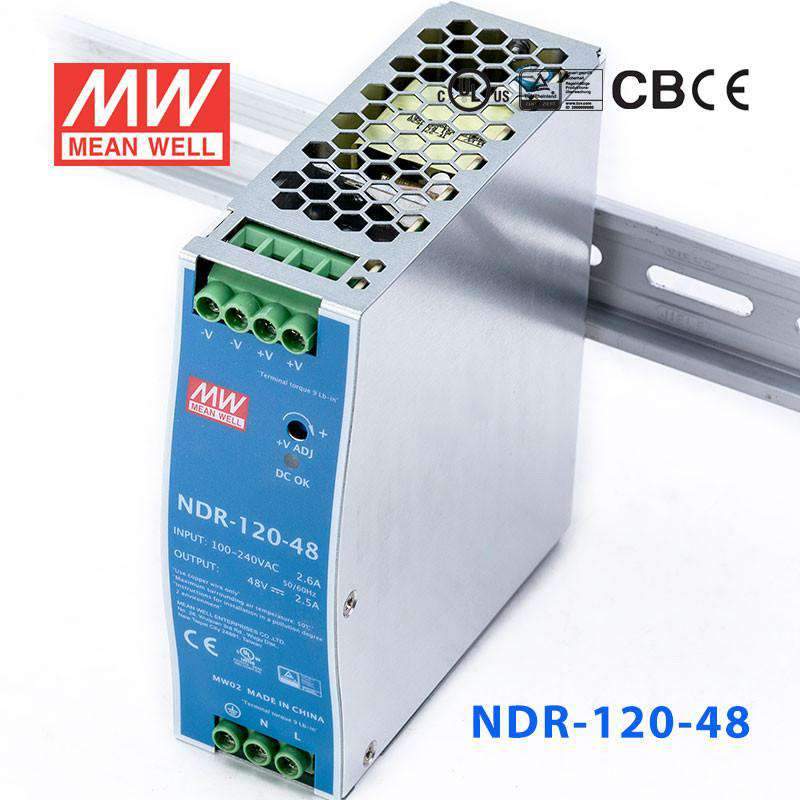

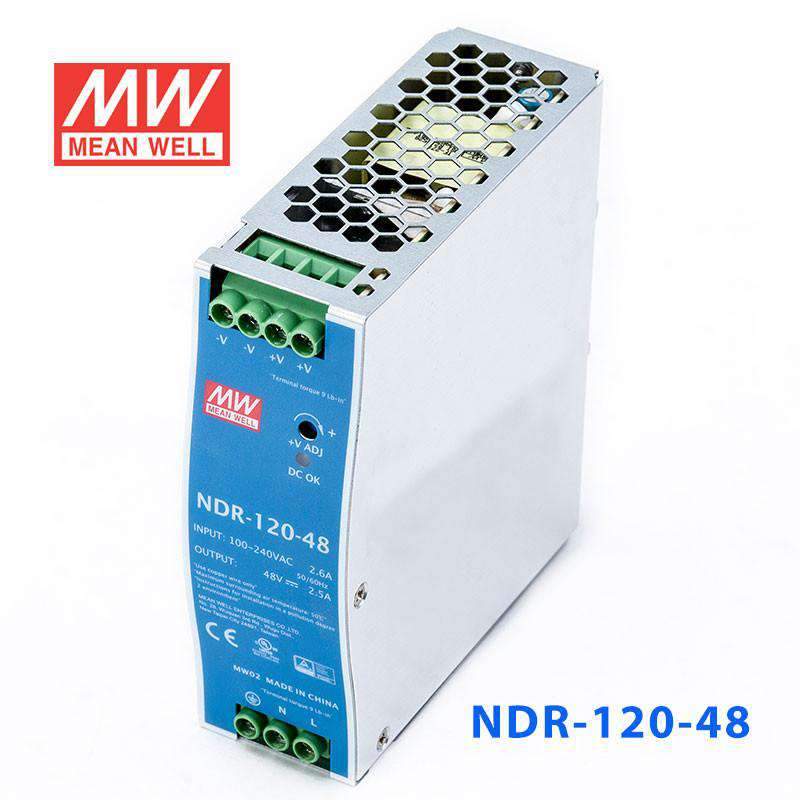

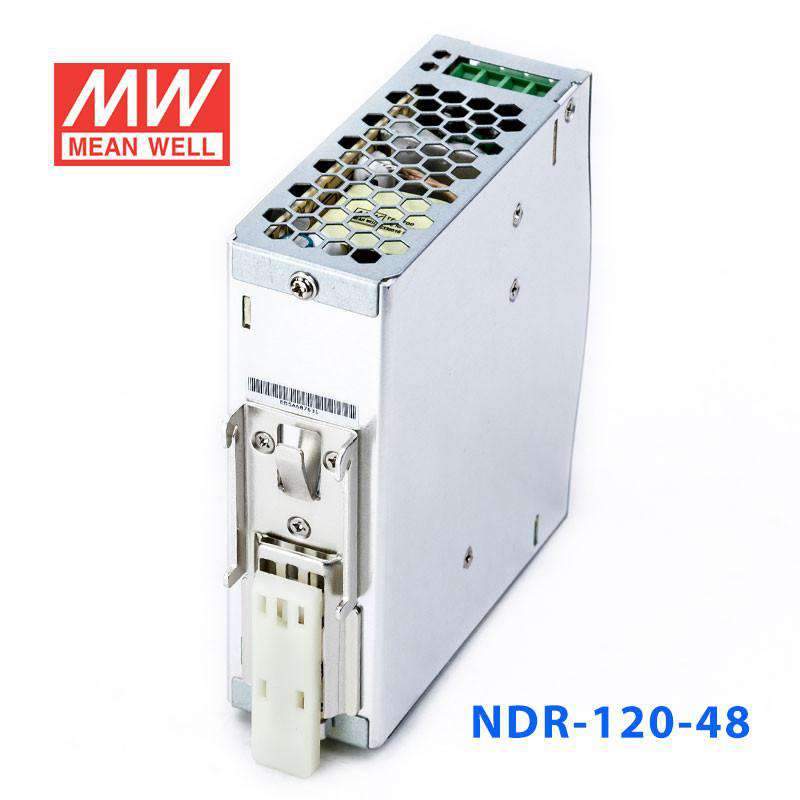

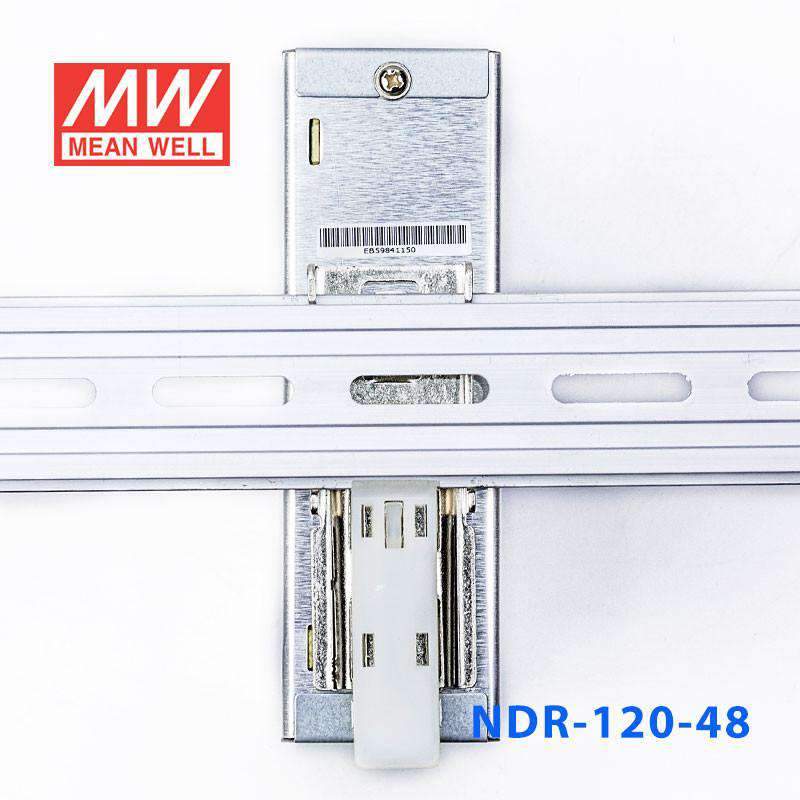

Mean Well NDR-120-48 Single Output Industrial Power Supply 120W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NDR-120-48 Single Output Industrial Power Supply 120W 48V...
Description
Description
The NDR-120 is a 120W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60068-2-6 Ul508, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNDR Series
-
Power Rating120 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.32 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NDR-120-48 for a 48V PLC or industrial automation panel?
Yes, this model is a 48V DIN rail power supply rated for 120W and 2.5A output. Its slim 40.0 mm profile and DIN rail format make it a practical fit for compact PLC and industrial automation control panels using 48VDC loads.
Is the NDR-120-48 suitable for building management or access control cabinets that use 48VDC?
It can be a fit for building management and access control cabinets when the system requires 48VDC and stays within 2.5A and 120W. The DIN rail design and 125.2 × 113.5 × 40.0 mm housing suit control cabinet layouts where space is limited.
Can this 48V DIN rail power supply be used in a telecom or network control enclosure?
It is appropriate for telecom or network-related control enclosures that need a 48VDC supply up to 2.5A. The wide 90-264VAC input also helps when the enclosure is being specified for sites with different AC input conditions.
Is the NDR-120-48 meant for open-air use or for enclosed control cabinets?
This DIN rail model is better suited to protected control cabinets and electrical enclosures. The listed operating range is -20°C to +70°C, and the specs call out a metal case, but no ingress rating is provided here for exposed outdoor use.
How does the NDR-120-48 compare with other Mean Well NDR DIN rail models?
Within the NDR range, sibling options are NDR-75-12 at 75.6W 12V 6.3A, NDR-75-24 at 76.8W 24V 3.2A, NDR-75-48 at 76.8W 48V 1.6A, NDR-120-12 at 120W 12V 10A, NDR-120-24 at 120W 24V 5A, NDR-240-24 at 240W 24V 10A, NDR-240-48 at 240W 48V 5A, NDR-480-24 at 480W 24V 20A, and NDR-480-48 at 480W 48V 10A. The NDR-120-48 sits in the 48V branch at 120W with 2.5A output.
Other NDR-120 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NDR-120-24 Single Output Industrial Power Supply 120W 24V - DIN Rail | 120W | 24V | 5A | Indoor | $27.91 | View |
| Mean Well NDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail | 120W | 12V | 10A | Indoor | $35.00 | View |
