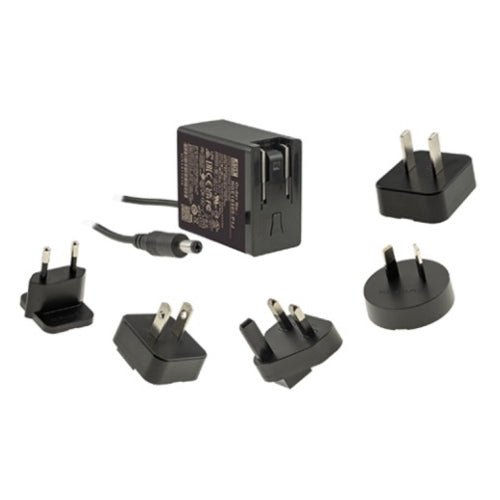

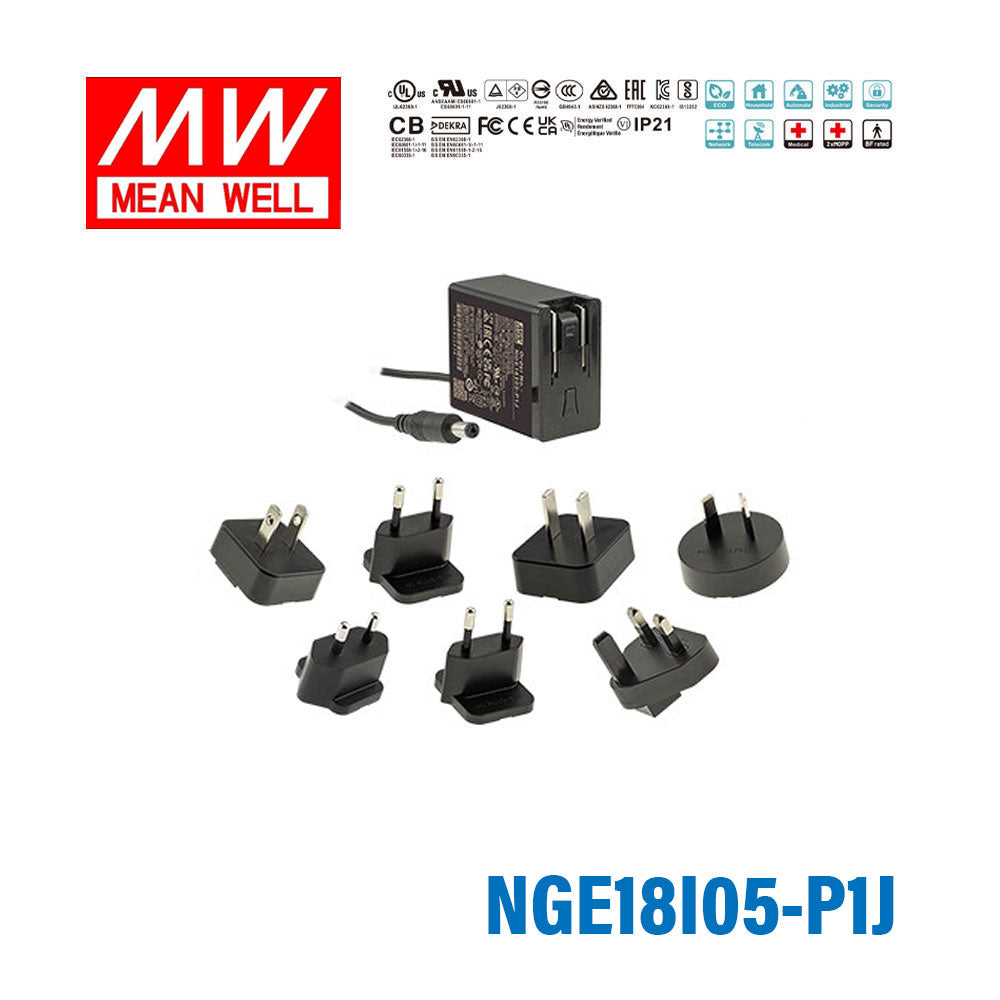

Mean Well NGE18I05-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 18W 5V 3A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE18I05-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE18I05 is a 18W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What output does the Mean Well NGE18I05-P1J provide?
This model provides a regulated 5V DC output with a rated current of up to 3A. It is intended for equipment that requires 5V power within that current range. Buyers should also confirm that the device's DC plug format matches the adaptor being ordered.
What kinds of equipment is this adaptor typically used for?
The NGE18I05-P1J is suited to low-voltage electronic equipment that needs a compact 5V desktop or wall-style power source. Typical B2B use cases include ITE, medical-related equipment categories, household electronics, and industrial devices where the product certifications align with the end application. Final suitability depends on the load requirements and the equipment maker's approval.
Does this adaptor support use in different countries or regions?
Yes. This model has a universal AC input range of 80 to 264VAC and uses interchangeable AC plugs, which makes it practical for multi-region deployment. It is also listed with a broad set of international safety approvals covering multiple application fields.
Is the NGE18I05-P1J designed for energy-efficient operation?
Yes. It meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a strong fit for applications where standby power and operating efficiency matter.
Can this power adaptor be used in demanding temperature conditions?
This model is rated for operation from -30C to +70C, which supports use in a wide range of indoor equipment environments. It also includes short circuit, overload, and over-voltage protection for added operational robustness. Environmental suitability should still be checked against the final enclosure and end-product requirements.
What safety and protection features does this adaptor include?
The NGE18I05-P1J is a Class II power supply and includes protection for short circuit, overload, and over voltage conditions. It also passes LPS requirements and is specified with low leakage current under 100uA. These features support use in regulated and safety-conscious equipment categories when the full system design is reviewed appropriately.
