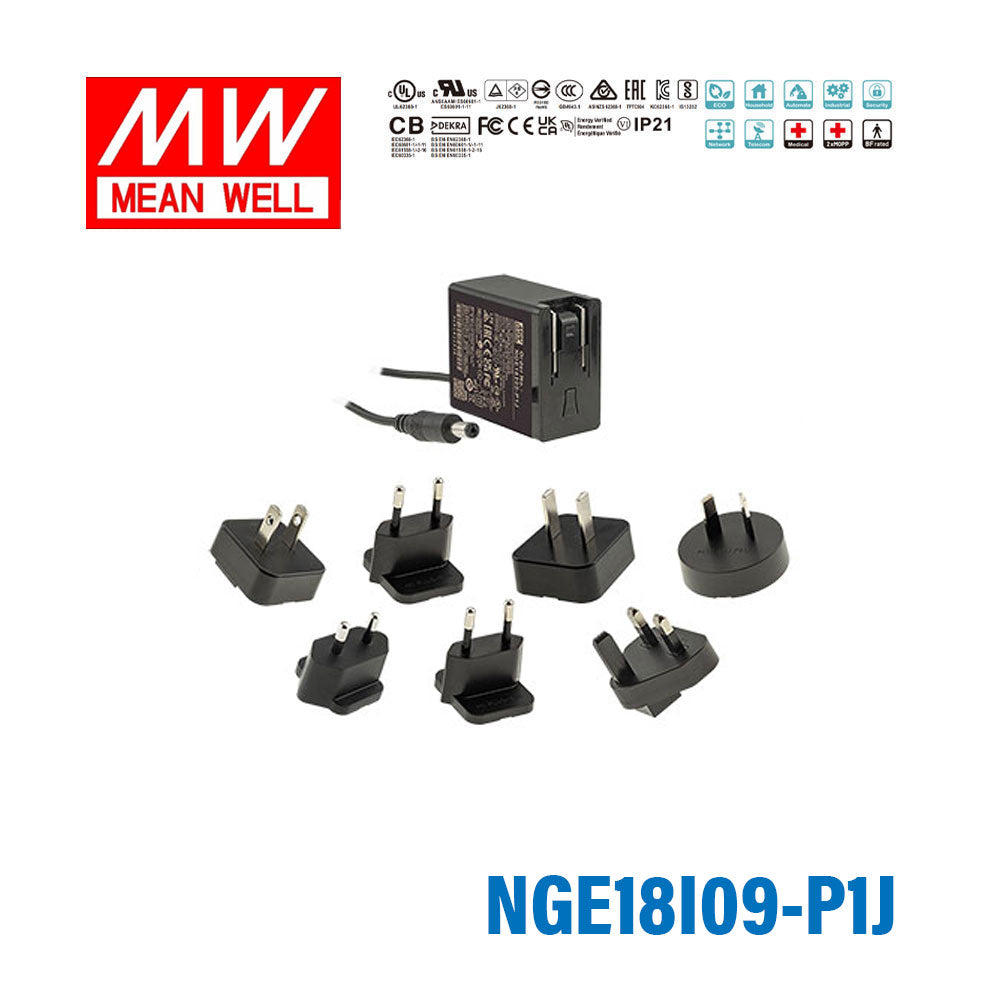

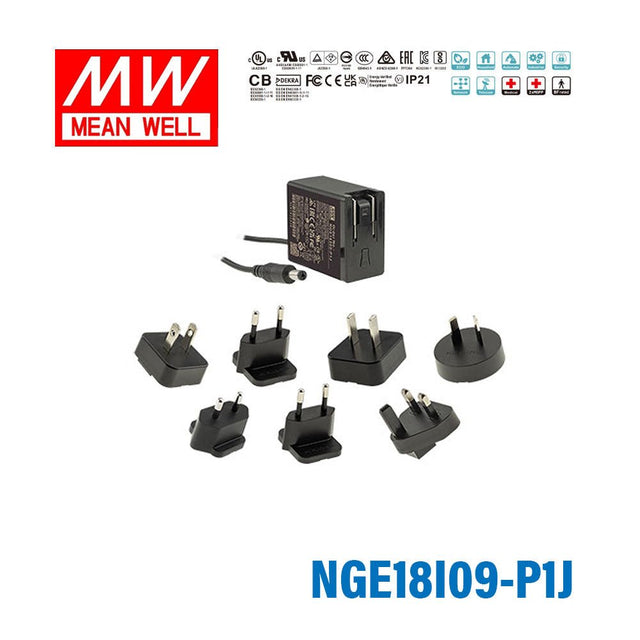

Mean Well NGE18I09-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 18W 9V 2A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NGE18I09-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
The NGE18I09 is a 18W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating18 Watt
-
Output Voltage9 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE18I09-P1J?
This model is a 18W AC-DC wall-mounted adaptor with a regulated 9V DC output and a rated current of 2A. It is designed for applications that need that specific voltage and current level from a compact external power supply.
What kind of applications is the NGE18I09-P1J suited for?
The NGE18I09-P1J is intended for low-power equipment that requires a 9V, 2A external adaptor. Its certification coverage includes ITE, medical, household, and industrial standards, which makes it a strong option for professional and commercial equipment sourcing where compliance matters.
Does this adaptor support international input power?
Yes, it has a universal input range of 80 to 264VAC and also supports 113 to 370VDC input. It also uses interchangeable AC plugs, which helps when the same power platform is needed across different regions.
How energy efficient is the Mean Well NGE18I09-P1J?
This adaptor meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a good fit for buyers who want to reduce standby power usage in deployed equipment.
Can the NGE18I09-P1J be used in demanding temperature conditions?
Yes, this model is rated for operation from -30°C to +70°C. That wide working temperature range makes it more suitable than basic indoor-only adaptors for equipment exposed to broader environmental conditions.
What protection features are included in this power adaptor?
The NGE18I09-P1J includes protection against short circuit, overload, and over voltage. Its overload protection uses hiccup mode and recovers automatically after the fault condition is removed.
What are the physical size and build characteristics of this adaptor?
This is an ultra-slim wall-mounted adaptor with dimensions of 48 x 28 x 55mm and a weight of about 0.13kg. It is a Class II power unit, so it does not require an earth pin.
