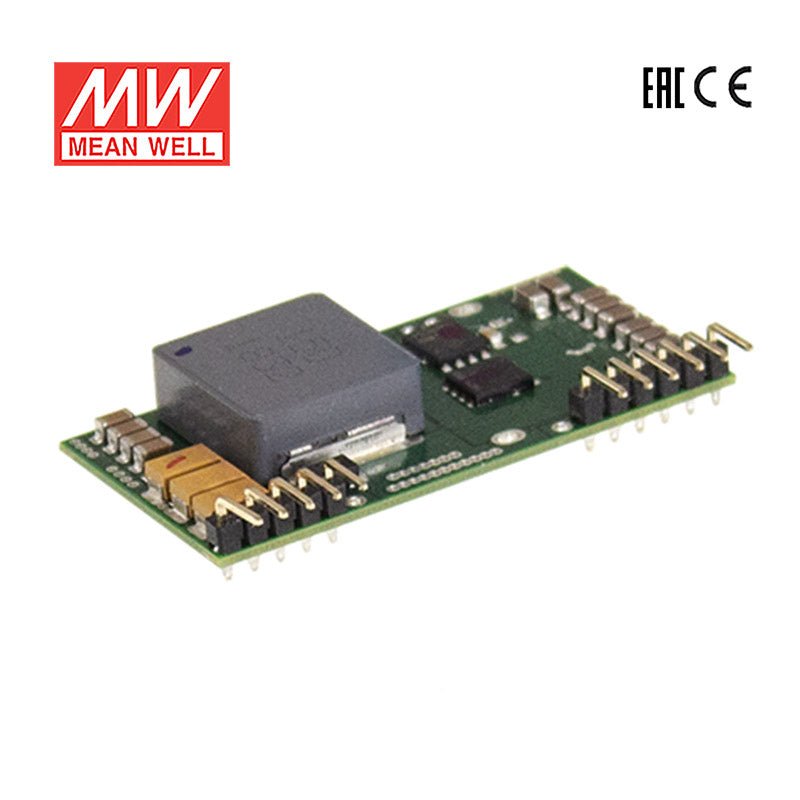

Mean Well NID65-15 DC-DC Converter - 64.5W - 20~53V in 15V out
Description
Description
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.024"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNID Series
-
Power Rating64.5 Watt
-
Output Voltage15 Volt
-
Rated Current4.3 Ampere
-
Input Voltage20V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.02 in
-
Height0.43 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NID65-15 with 15V industrial sensors or instrumentation modules?
Yes, if the load requires a constant-voltage 15V output and stays within 4.3A or 64.5W. This converter is designed for regulated 15V applications with a 20-53VAC input range.
Is the NID65-15 a fit for 15V automation electronics in a compact enclosure?
It can fit compact assemblies because the body is 50.8 × 26.0 × 11.0 mm and weighs 0.019 kg. Electrically, the load still needs to match a 15V constant-voltage output and remain at or below 4.3A and 64.5W.
Can this model support 15V embedded control boards from a variable input source?
It is suitable when the available source is within 20-53VAC and the board expects a regulated 15V output. The supported load envelope is up to 4.3A and 64.5W.
Will the NID65-15 work in indoor industrial areas with temperature swings?
The specified operating range is -30°C to +85°C, so the temperature tolerance is broad. No IP rating is provided in the specs, so exposed outdoor suitability cannot be confirmed from this product data alone.
What is the difference between the NID65-15 and the other NID65 versions?
The NID65-15 outputs 15V at 4.3A for 64.5W and accepts 20-53VAC input. Other versions are NID65-12 at 12V, 4.9A, 58.8W; NID65-24 at 24V, 2.7A, 64.8W; and NID65-5 at 5V, 6.5A, 32.5W.
Other NID65 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NID65-5 DC-DC Converter - 32.5W - 10.5~53V in 5V out | 32.5W | 5V | 6.5A | Indoor | $14.59 | View |
| Mean Well NID65-24 DC-DC Converter - 64.8W - 30~53V in 24V out | 64.8W | 24V | 2.7A | Indoor | $13.85 | View |
| Mean Well NID65-12 DC-DC Converter - 58.8W - 20~53V in 12V out | 58.8W | 12V | 4.9A | Indoor | $14.59 | View |
