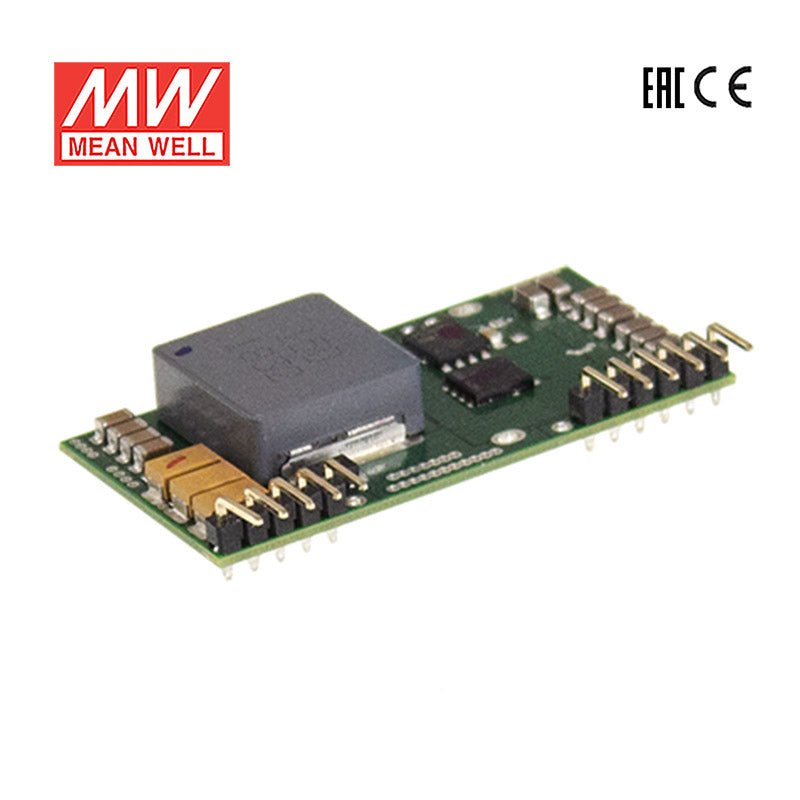

Mean Well NID65-5 DC-DC Converter - 32.5W - 10.5~53V in 5V out
Description
Description
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.024"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNID Series
-
Power Rating32.5 Watt
-
Output Voltage5 Volt
-
Rated Current6.5 Ampere
-
Input Voltage10.5V~53V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.02 in
-
Height0.43 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NID65-5 for 5V embedded controllers or single-board computing hardware?
Yes, if the hardware requires a constant-voltage 5V supply and the total load stays within 6.5A or 32.5W. This model accepts 10.5-53VAC input, which gives it the widest input range in the series.
Is the NID65-5 suitable for 5V industrial interface boards or logic devices?
It is a fit for regulated 5V loads that need constant-voltage output and remain at or below 6.5A. The total output capacity is 32.5W, so it is better suited to lower-power 5V electronics than heavier 5V loads.
Can this model power 5V automation sensors or compact HMI support electronics?
It can support 5V automation electronics when the combined requirement does not exceed 6.5A and 32.5W. The converter is intended for constant-voltage 5V applications with input from 10.5-53VAC.
Does the NID65-5 handle wide temperature conditions for control cabinets or protected field enclosures?
The rated operating temperature is -30°C to +85°C, so the thermal range is broad. No IP rating appears in the listed specs, so use in exposed outdoor conditions is not confirmed by this data.
What are the key differences between the NID65-5 and the other NID65 converters?
The NID65-5 outputs 5V at 6.5A for 32.5W and accepts 10.5-53VAC input. The other models are NID65-12 at 12V, 4.9A, 58.8W; NID65-15 at 15V, 4.3A, 64.5W; and NID65-24 at 24V, 2.7A, 64.8W.
Other NID65 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NID65-24 DC-DC Converter - 64.8W - 30~53V in 24V out | 64.8W | 24V | 2.7A | Indoor | $13.85 | View |
| Mean Well NID65-15 DC-DC Converter - 64.5W - 20~53V in 15V out | 64.5W | 15V | 4.3A | Indoor | $13.85 | View |
| Mean Well NID65-12 DC-DC Converter - 58.8W - 20~53V in 12V out | 58.8W | 12V | 4.9A | Indoor | $14.59 | View |
