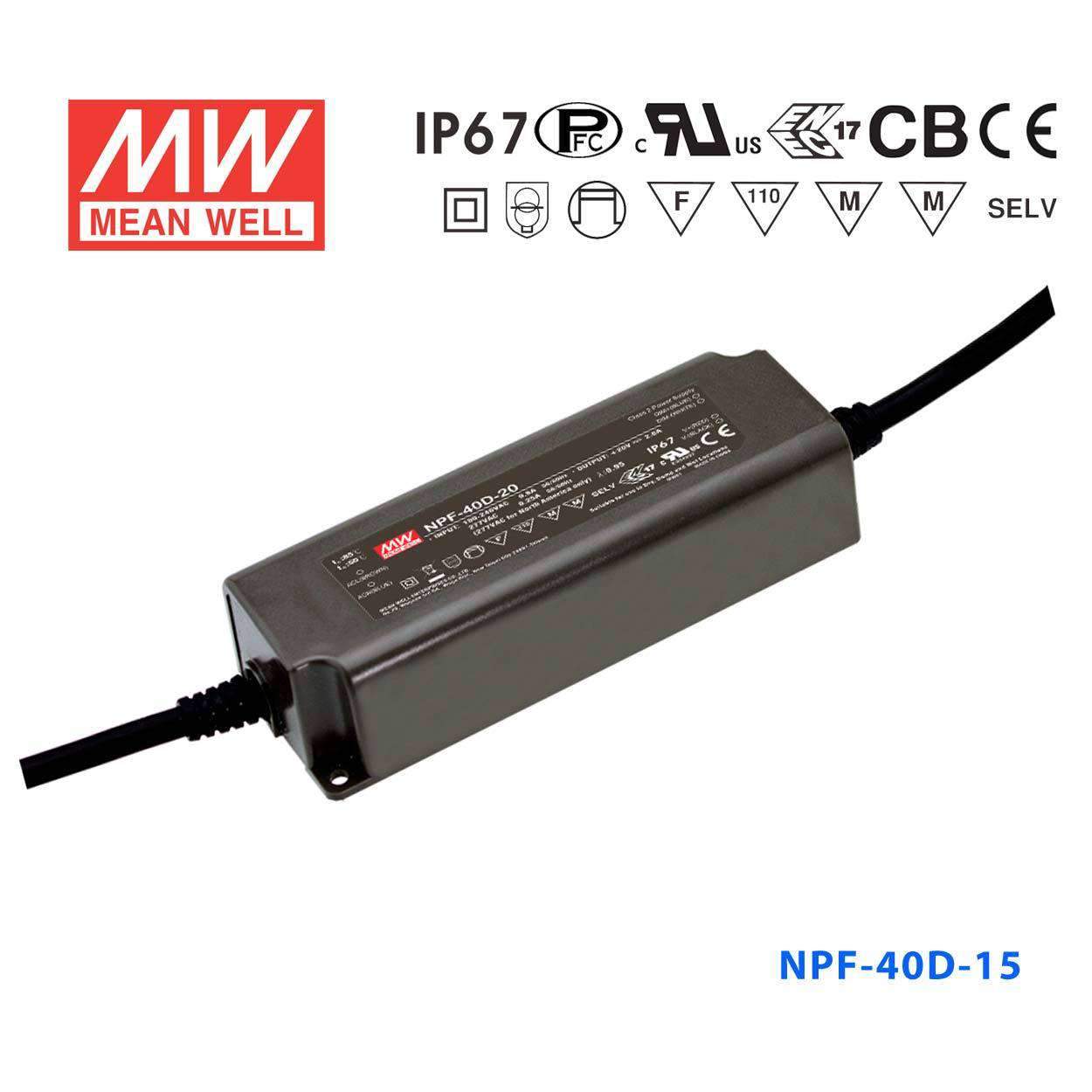

Mean Well NPF-40D-15 Power Supply 40W 15V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-40D-15 Power Supply 40W 15V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8,11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating40.08 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming inputs are available on the NPF-40D-15?
The NPF-40D-15 features built-in 3-in-1 dimming supporting PWM signal, 1–10V analog, and resistance (potentiometer) control. All three interfaces are natively supported, making it compatible with a wide range of commercial dimming panels and controllers.
Is the NPF-40D-15 suitable for wet or outdoor environments?
Yes. The NPF-40D-15 is IP67 rated and operates from -40°C to +85°C. Its 150.0 × 53.0 × 35.0 mm sealed housing can be mounted directly inside outdoor compact fixtures, landscape lighting channels, and damp industrial enclosures.
What 15V LED applications suit the NPF-40D-15's dimmable output?
The NPF-40D-15 provides 15V DC at 2.67A (40.08W) in constant-current mode (CC range 9–15V) with 3-in-1 dimming. It suits dimmable 15V LED modules in small hospitality or retail accent fixtures, display cabinets with 1–10V brightness control, and compact architectural installations requiring smooth dimming.
How does the NPF-40D-15 compare to the NPF-40D-12 and NPF-40D-20?
All three share IP67, 3-in-1 dimming, the 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40D-12 is 12V/3.34A (40.08W, CC 7–12V); NPF-40D-15 is 15V/2.67A (40.08W, CC 9–15V); NPF-40D-20 is 20V/2A (40W, CC 12–20V). Select the voltage matching your LED module's rating.
