Mean Well

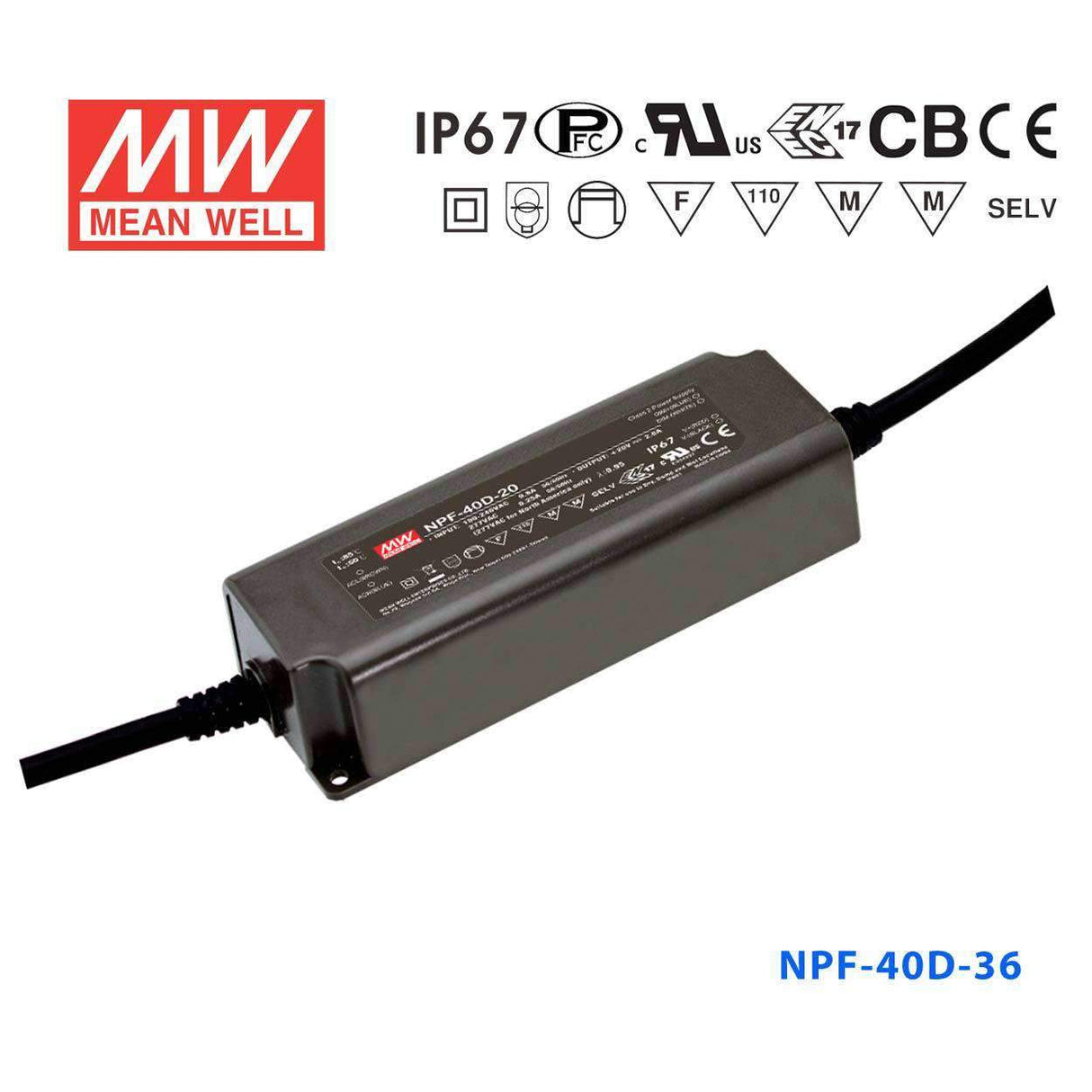

Mean Well NPF-40D-36 Power Supply 40W 36V - Dimmable

Name: Mean Well NPF-40D-36 Power Supply 40W 36V - Dimmable
Brand: Mean Well
SKU: NPF-40D-36
Price: 31.55 USD
Availability: InStock

Mean Well NPF-40D-36 Power Supply 40W 36V - Dimmable

On Backorder

$31.55 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A at 230VAC
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~140% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+85ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8,11, EN61547
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm)
Dimension (LxWxH)(mm)	150x 53x 35
