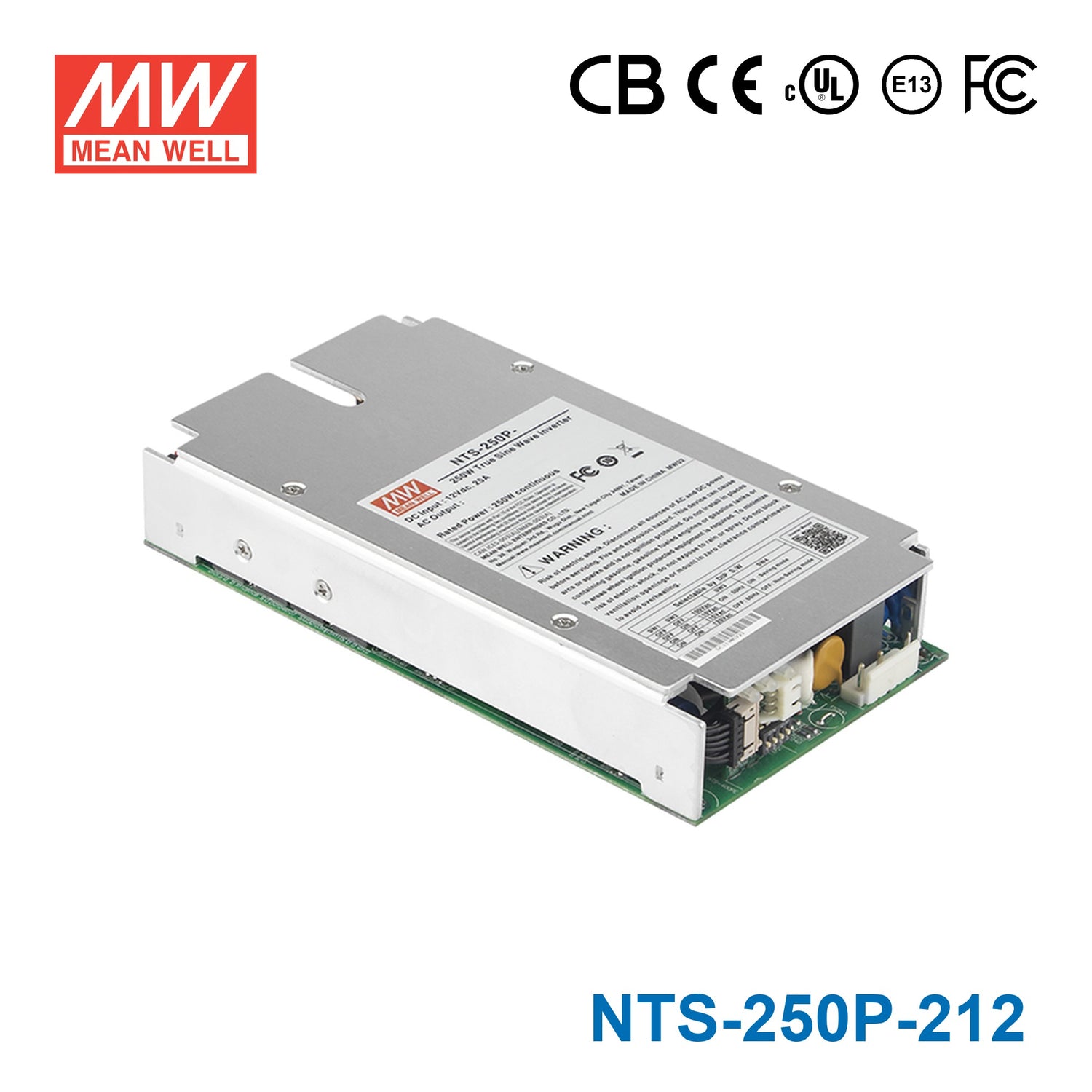

Mean Well NTS-250P-212 True Sine Wave DC-AC Inverter 250W 230V out 12V in
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTS-250P-212 True Sine Wave DC-AC Inverter 250W 230V out ...
Description
Description
The NTS-250P is a 250W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating250 Watt
-
Output Voltage230 Volt
-
Input Voltage10V~16.5V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.32 in
-
Width3.96 in
-
Height1.26 in
-
Weight1.65 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of output does the Mean Well NTS-250P-212 provide?
The NTS-250P-212 provides a true sine wave AC output with total harmonic distortion below 3%. It is rated for 250W continuous output and is designed for 12V DC input with 230V AC output. This makes it a good fit where cleaner AC power is preferred over modified sine wave alternatives.
Can this inverter handle startup surges above its 250W continuous rating?
Yes. This model supports surge power up to 500W, which helps with equipment that briefly draws more power at startup than during normal operation. Buyers should still make sure the connected load stays within the inverter's specified operating limits.
Is the NTS-250P-212 suitable for sensitive electronics?
It can be a suitable option for equipment that benefits from a true sine wave output, since this model keeps THD below 3%. Compared with basic modified sine wave inverters, it is intended to provide cleaner AC power. Final suitability still depends on the power requirements of the specific device being used.
What battery types is this inverter compatible with?
The NTS-250P-212 is specified as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection through low voltage disconnect. That makes it relevant for mobile and off-grid DC power systems using 12V battery sources.
What environments is this inverter designed for?
This model has a wide operating temperature range of -20°C to +70°C, subject to the output derating curve. It also uses a fanless design with free-air cooling and includes conformal coating. Those features support use in demanding industrial or mobile environments where compact size and low maintenance are valued.
Does this inverter offer selectable AC output settings?
Yes. The AC output voltage range is selectable by DIP switch, covering 100/110/115/120VAC and 200/220/230/240VAC options, and the output frequency is also selectable by DIP switch. For this specific model, the listed product configuration is 230V AC output from a 12V DC input.
What protections and approvals does the NTS-250P-212 include?
The inverter includes protection for short circuit, overload, over voltage, and battery over-discharge. The NTS-250P-212 is listed with CB IEC62368-1, E13, EAC TPTC004, and AS/NZS 62368.1 approvals for this model variant. It also carries a 3-year warranty.
Other NTS-250P Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NTS-250P-248 True Sine Wave DC-AC Inverter 250W 230V out 48V in | 250W | 230V | — | Indoor | $95.82 | View |
| Mean Well NTS-250P-224 True Sine Wave DC-AC Inverter 250W 230V out 24V in | 250W | 230V | — | Indoor | $95.82 | View |
