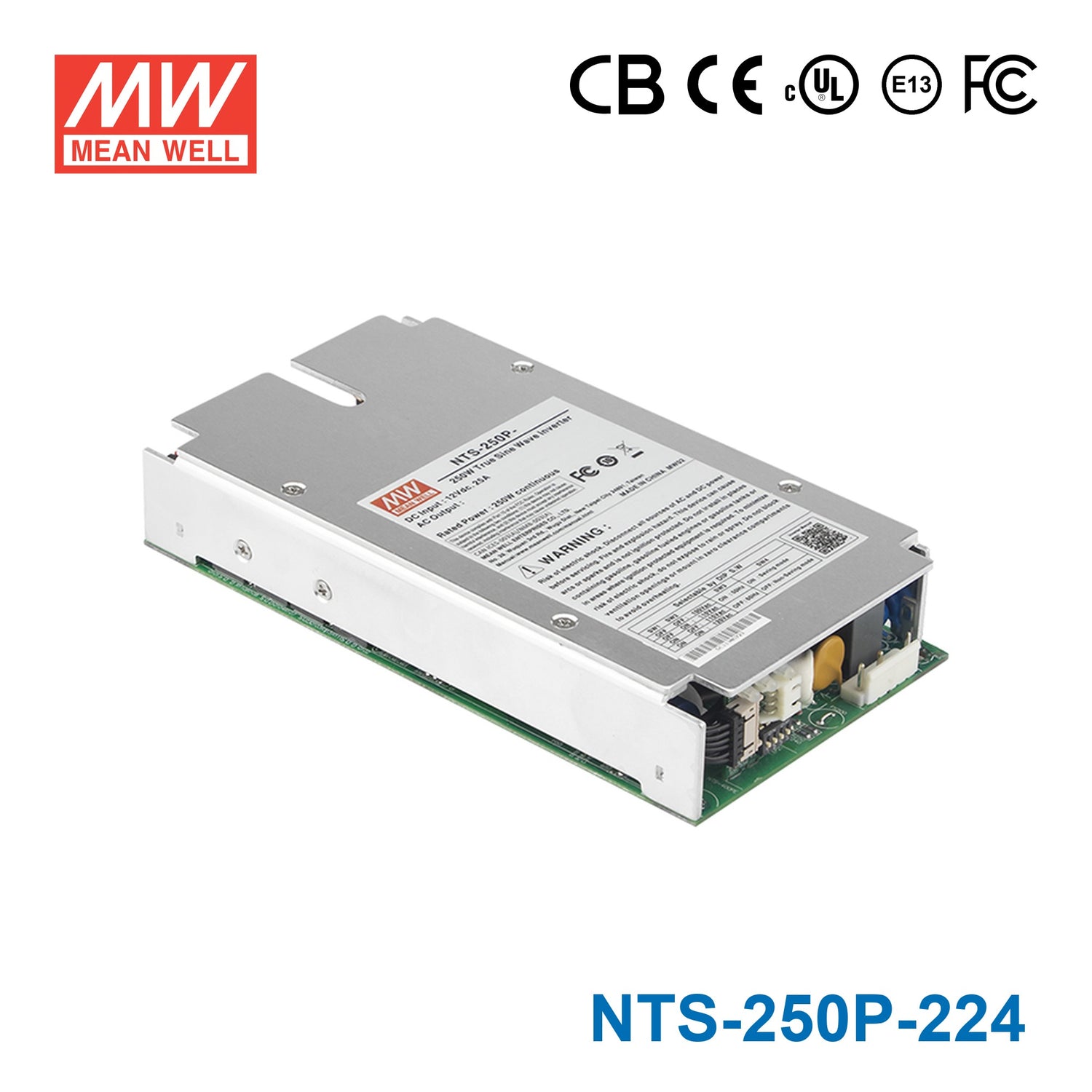

Mean Well NTS-250P-224 True Sine Wave DC-AC Inverter 250W 230V out 24V in
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTS-250P-224 True Sine Wave DC-AC Inverter 250W 230V out ...
Description
Description
Features
| Compact size and lightweight |
| True sine wave output (THD<3%) |
| High surge power up to 500W |
| Fanless design, cooling by free air convention |
| AC output voltage and frequency selectable by DIP S.W |
| No load disspation < 1.5W max. at standby saving mode |
| -20℃~+70℃ wide operating temperature |
| Power ON-OFF remote control |
| Protections: Short circuit / Overload / Over voltage |
| Battery over-discharge protection (Low voltage disconnect) |
| Suitable for lead-acid or li-ion batteries |
| Support Tx/Rx for monitoring power inverter status |
| Conformal coating |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W |
| AC output waveform | True sine wave, THD<3.0% |
| Overload temperature | Shut down o/p voltage, re-power on to recover |
| Overload | 105~115% load for 180s, 115~150% load for 10s |
| Withstand voltage | DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | -20~+70°C (refer to output derating curve ) |
| Safety standards | CB IEC62368-1 for all models; E13, EAC TPTC004, AS/NZS 62368.1 for NTS-250P-212/224/248 approved |
| EMC standards | EN55032 class A, BS En/EN61000-4-2,3,8 |
| Dimension (LxWxH) | 186x100.5x32mm |
| Packing | 18pcs / 14.5Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating250 Watt
-
Output Voltage230 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.32 in
-
Width3.96 in
-
Height1.26 in
-
Weight1.65 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NTS-250P-224 used for?
The NTS-250P-224 is a 250W true sine wave DC-AC inverter designed to convert 24V DC input power into 230V AC output. It is suited to business and industrial applications that need clean AC power from a battery-based DC source.
Does this inverter produce a true sine wave output?
Yes. The NTS-250P-224 provides a true sine wave output with total harmonic distortion below 3%. That makes it a better fit for equipment that requires cleaner AC power than modified sine wave alternatives.
What input and output voltage does the NTS-250P-224 support?
This model is a 24V DC input inverter with 230V AC output. Its AC output voltage range is selectable by DIP switch across several options, including 200V, 220V, 230V, and 240V AC, with 230V matching this version.
Can the NTS-250P-224 handle startup surges above its rated output?
Yes. Although its continuous power rating is 250W, it supports surge power up to 500W. It also has defined overload behavior, including support for 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Is this inverter suitable for demanding temperature conditions?
Yes. The NTS-250P-224 has a wide operating temperature range of -20°C to +70°C, subject to the manufacturer's derating guidance. Its fanless design and conformal coating also support use in tougher operating environments.
What battery types is the NTS-250P-224 compatible with?
This inverter is suitable for use with lead-acid or lithium-ion battery systems. It also includes battery over-discharge protection through low voltage disconnect to help protect the DC power source.
What protection features are included in the NTS-250P-224?
The unit includes protection for short circuit, overload, and over voltage conditions. It also has low voltage disconnect for battery over-discharge protection and shutdown behavior for overload temperature events.
How compact is the Mean Well NTS-250P-224?
The inverter measures 186 x 100.5 x 32 mm and weighs 0.75 kg. Its compact, lightweight, fanless design makes it easier to place in space-constrained commercial or mobile power systems.
