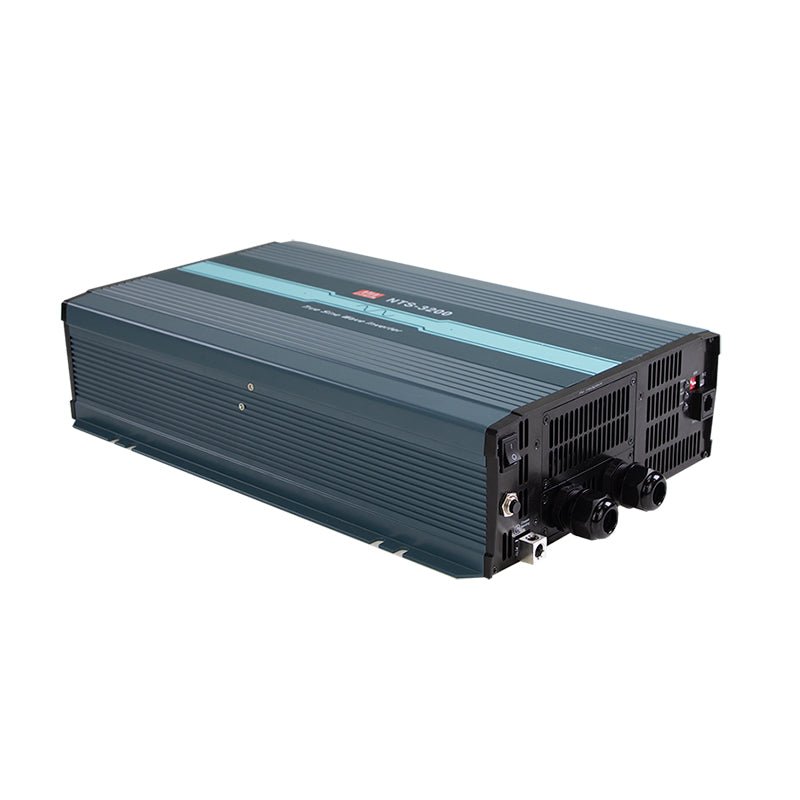

Mean Well NTS-3200-148US True Sine Wave DC-AC Inverter 3200W 110V out 48V in with US Socket

$815.11 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

True sine wave output (THD<3%)
High surge power up to 6400W
Temperature-controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load dissipation < 1.7W at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections: Short circuit / Overload / Over voltage
Battery over-discharge protection(Low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller (IRC1, IRC2, IRC3 accessory sold separately
Support RS-232 communication(Communication cable order No.: DS-RJ11-RS232, sold separately
Carry handle accessory available(Order NO.: DS-Carry handle, sold separately
Conformal coating
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W
AC output waveform True sine wave, THD<3.0%
Overload temperature Protection type: Shut down o/p voltage, re-power on to recover
Overload 105~115% load for 180s, 115~150% load for 10s
Withstand voltage DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature -25~+70°C (refer to output derating curve )
Safety standards CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved
EMC standards EN55032 class A, BS En/EN61000-4-2,3,8
Dimension (LxWxH) 420x270x98mm
Packing 1pcs / 10.4Kg

Specifications

  • Brand
    Mean Well
  • Series
    MeanWell NTS Series
  • Power Rating
    3200 Watt
  • Output Voltage
    110 Volt
  • Input Voltage
    40V~66V
  • No of Output
    1
  • Standards Met
    CB,CE,cUL,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    16.54 in
  • Width
    10.63 in
  • Height
    3.86 in
  • Weight
    18.96 lb
