Mean Well

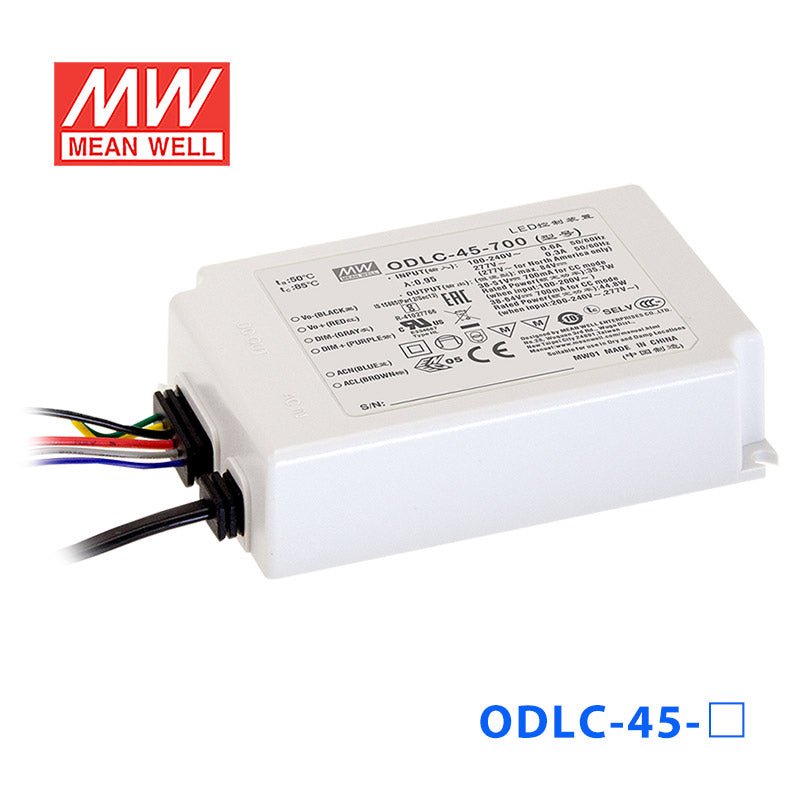

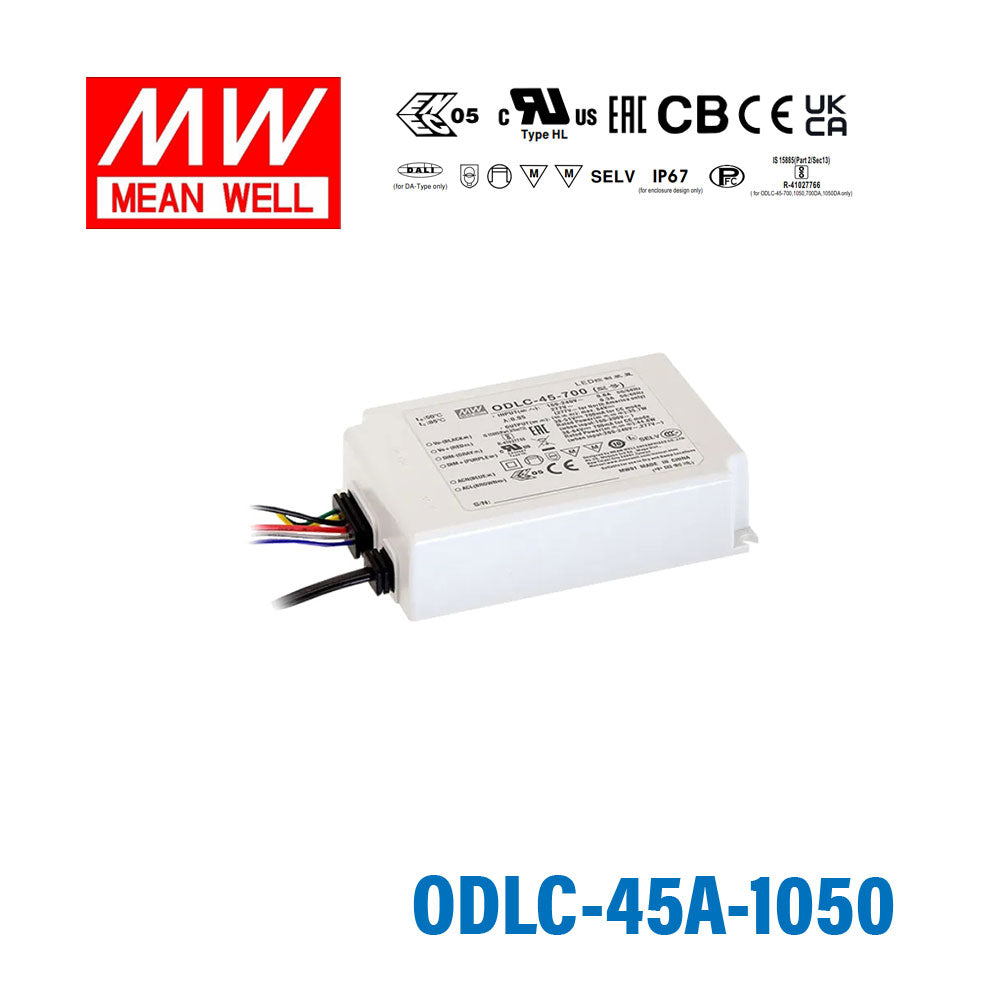

Mean Well ODLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output)

Name: Mean Well ODLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output)
Brand: Mean Well
SKU: ODLC-45A-1050
Price: 27.37 USD
Availability: InStock

Mean Well ODLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output)

On Backorder

$27.37 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	90~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode, auto-recovery/re-power
No load power consumption	consumption<0.5W for Blank-Type,<1.2W for ODLC-45A
Setup time	500ms/230VAC; 1200ms/115VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-20~+85ºC
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	1117728.5mm
Packing	24pcs/11Kg
