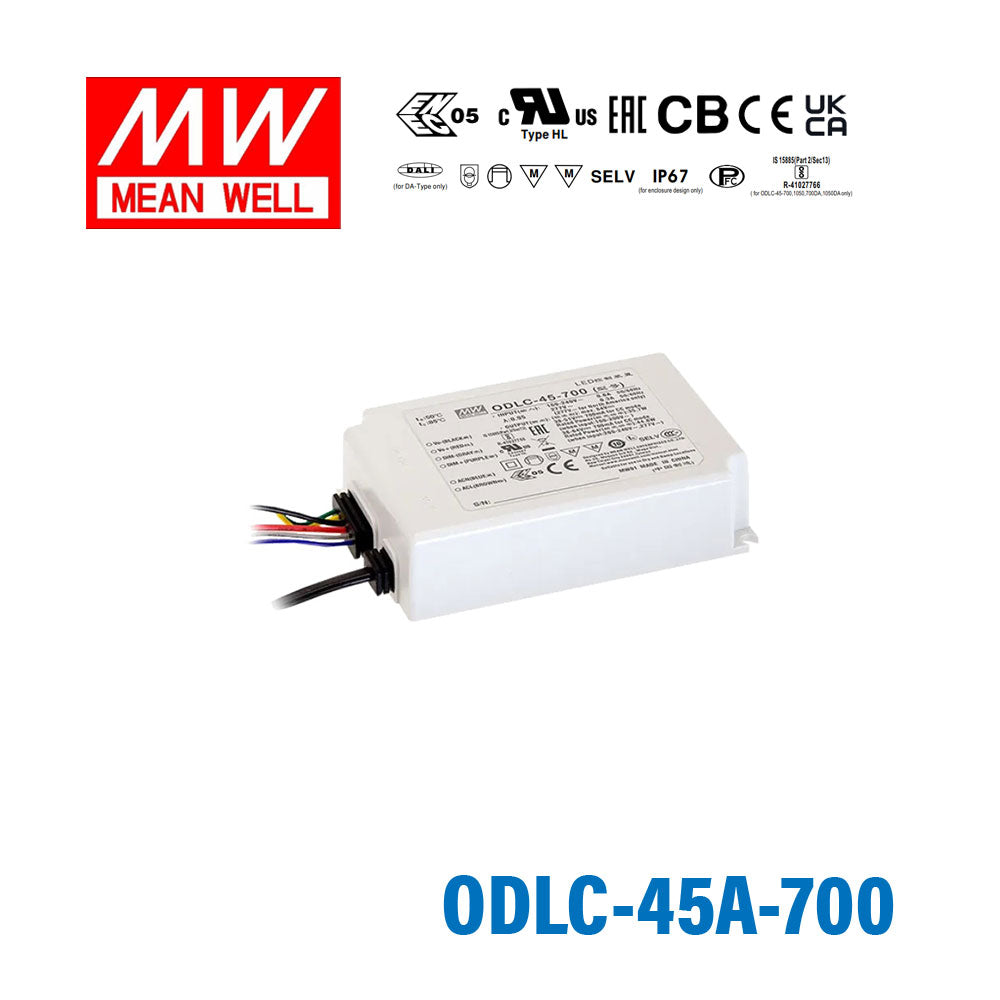

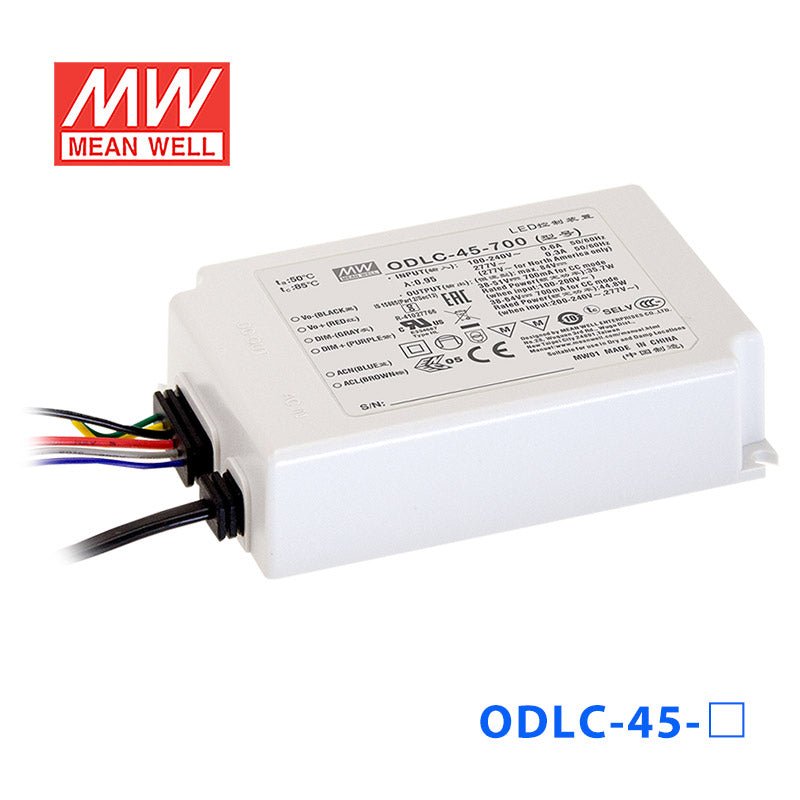

Mean Well ODLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output)

Q: Can I use the ODLC-45A-700 for a 700mA LED downlight?

Yes, this model is intended for constant current LED loads at 700mA. It fits downlights whose LED forward voltage falls within 38-64V and whose total power stays within 44.8W.

Q: Is the ODLC-45A-700 suitable for a medium-voltage small LED array?

It is a fit for small LED arrays that require 700mA constant current and operate within 38-64V. That makes it a middle-range option between the lower-voltage 1050mA and 1400mA versions and the higher-voltage 350mA and 500mA versions.

Q: Can this driver be used for constant current signage modules?

Yes, if the signage module or light engine is specified for 700mA constant current operation. It is not intended for constant voltage LED products, since the LED output is regulated as constant current over a 38-64V range.

Q: What should I check before pairing LEDs with the ODLC-45A-700?

The LED assembly must be designed for 700mA constant current and have a combined forward voltage within 38-64V. The number of LEDs depends on each LED forward voltage, so compatibility should be verified from the LED electrical data rather than a fixed LED count.

Q: Is the ODLC-45A-700 suitable for outdoor or exposed locations?

Its IP67 waterproof rating supports use where dust and water resistance are required. The specified operating range of -20°C to +85°C also makes it suitable for demanding ambient conditions.

SKU:

ODLC-45A-700

$23.34 USD ~~$84.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

IP67 rating for indoor or outdoor installations

Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI

3 years warranty

General Specification

AC input voltage range	90~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode, auto-recovery/re-power
No load power consumption	consumption<0.5W for Blank-Type,<1.2W for ODLC-45A
Setup time	500ms/230VAC; 1200ms/115VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-20~+85ºC
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	1117728.5mm
Packing	24pcs/11Kg

Specifications

Brand

Mean Well
Series

ODLC Series
Power Rating

44.8 Watt
Output Voltage

64 Volt
Rated Current

0.7 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

4.37 in
Width

3.03 in
Height

1.12 in
Weight

0.93 lb

File Downloads

::specification::
