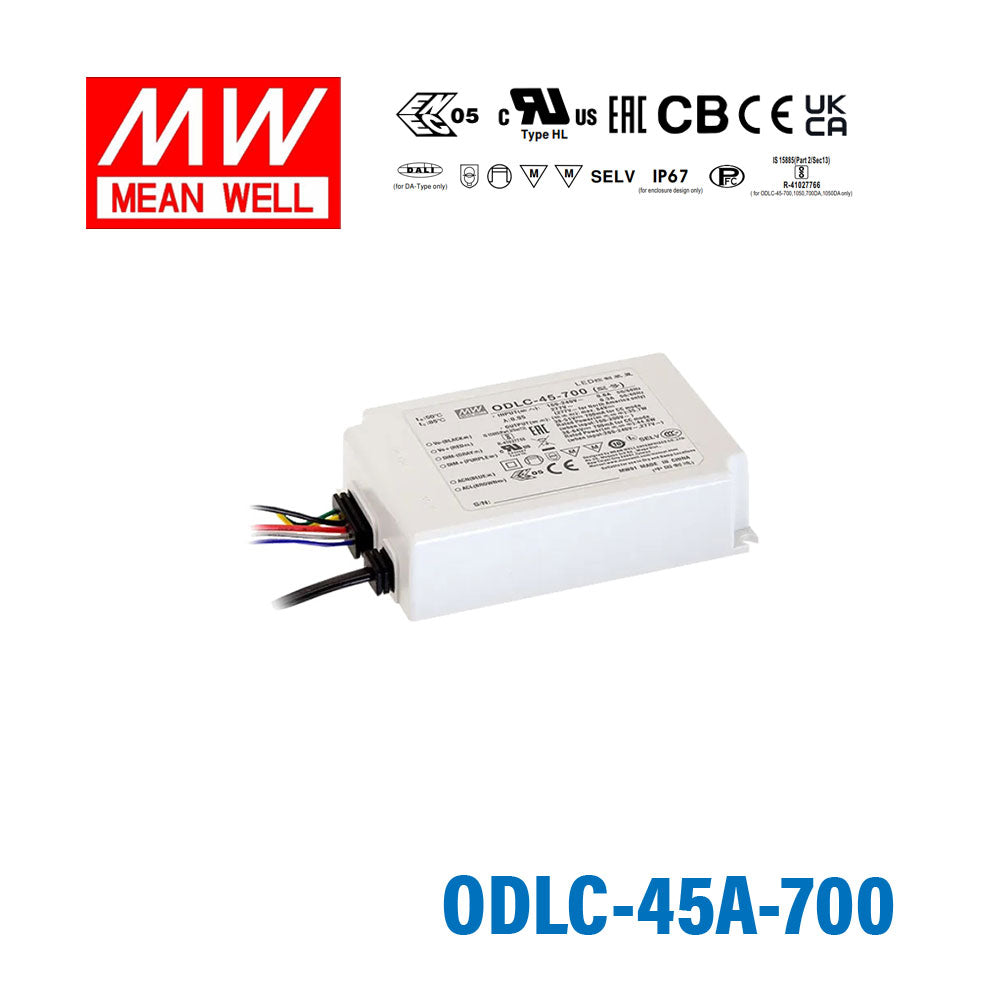

Mean Well ODLC-45A-700 Power Supply 45W 700mA (Auxiliary DC output)
The ODLC-45A is a 44.8W Mean Well AC-DC constant current LED driver (input: 90~295VAC, output: 64V, operating temperature: -20~+85°C).
Key Features
- ✓ Input voltage: 90~295VAC
- ✓ Output voltage (max): 64V
- ✓ Rated output current: 700mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -20~+85°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating44.8 Watt
-
Output Voltage64 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
::specification::
Frequently Asked Questions
Can I use the ODLC-45A-700 for a 700mA LED downlight?
Yes, this model is intended for constant current LED loads at 700mA. It fits downlights whose LED forward voltage falls within 38-64V and whose total power stays within 44.8W.
Is the ODLC-45A-700 suitable for a medium-voltage small LED array?
It is a fit for small LED arrays that require 700mA constant current and operate within 38-64V. That makes it a middle-range option between the lower-voltage 1050mA and 1400mA versions and the higher-voltage 350mA and 500mA versions.
Can this driver be used for constant current signage modules?
Yes, if the signage module or light engine is specified for 700mA constant current operation. It is not intended for constant voltage LED products, since the LED output is regulated as constant current over a 38-64V range.
What should I check before pairing LEDs with the ODLC-45A-700?
The LED assembly must be designed for 700mA constant current and have a combined forward voltage within 38-64V. The number of LEDs depends on each LED forward voltage, so compatibility should be verified from the LED electrical data rather than a fixed LED count.
Is the ODLC-45A-700 suitable for outdoor or exposed locations?
Its IP67 waterproof rating supports use where dust and water resistance are required. The specified operating range of -20°C to +85°C also makes it suitable for demanding ambient conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ODLC-45A Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLC-45A-500 Power Supply 45W 500mA (Auxiliary DC output) | 45W | 90V | 0.5A | IP67 | $24.63 | View |
| Mean Well ODLC-45A-350 Power Supply 45W 350mA (Auxiliary DC output) | 33.2W | 95V | 0.35A | IP67 | $25.71 | View |
| Mean Well ODLC-45A-1400 Power Supply 45W 1400mA (Auxiliary DC output) | 44.8W | 32V | 1.4A | IP67 | $24.63 | View |
| Mean Well ODLC-45A-1050 Power Supply 45W 1050mA (Auxiliary DC output) | 45.15W | 43V | 1.05A | IP67 | $24.63 | View |
