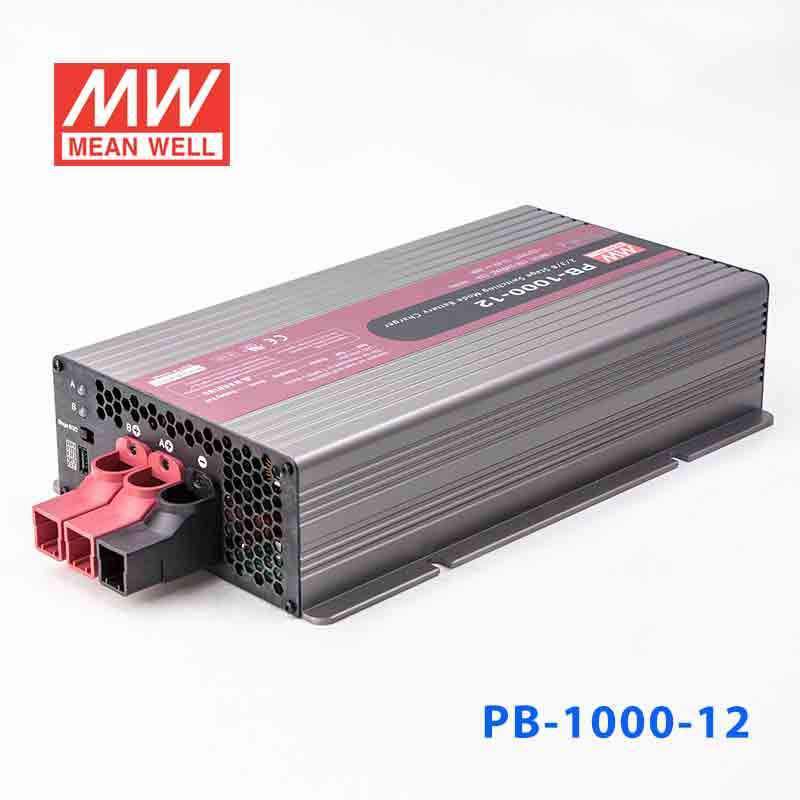

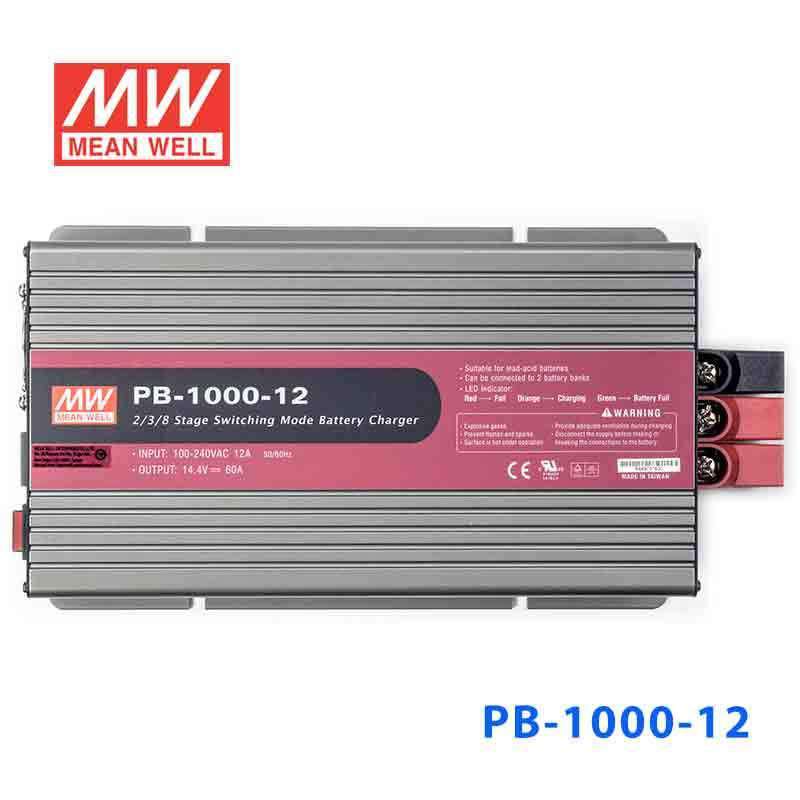

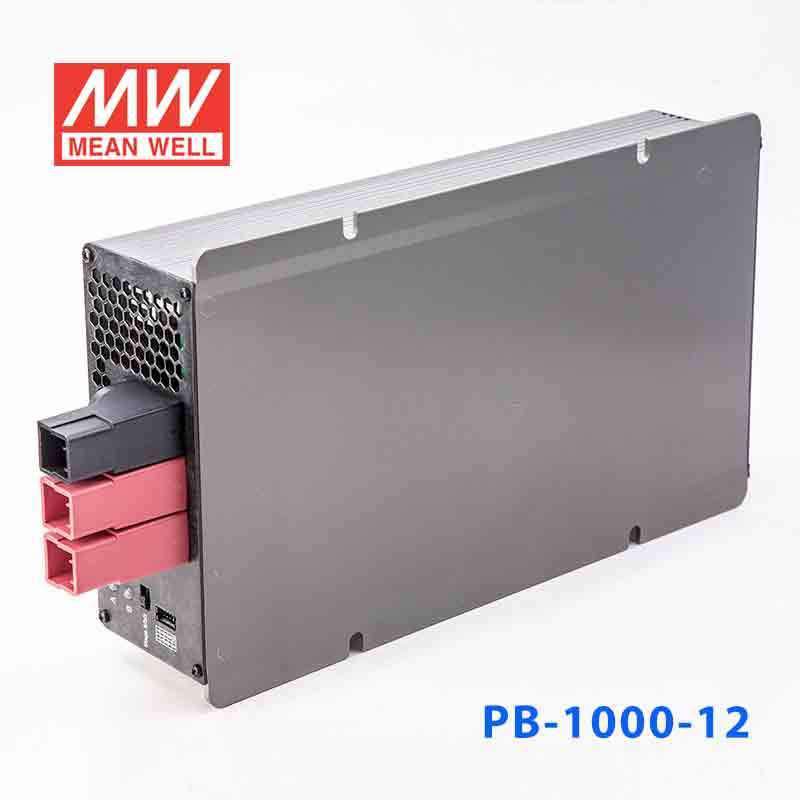

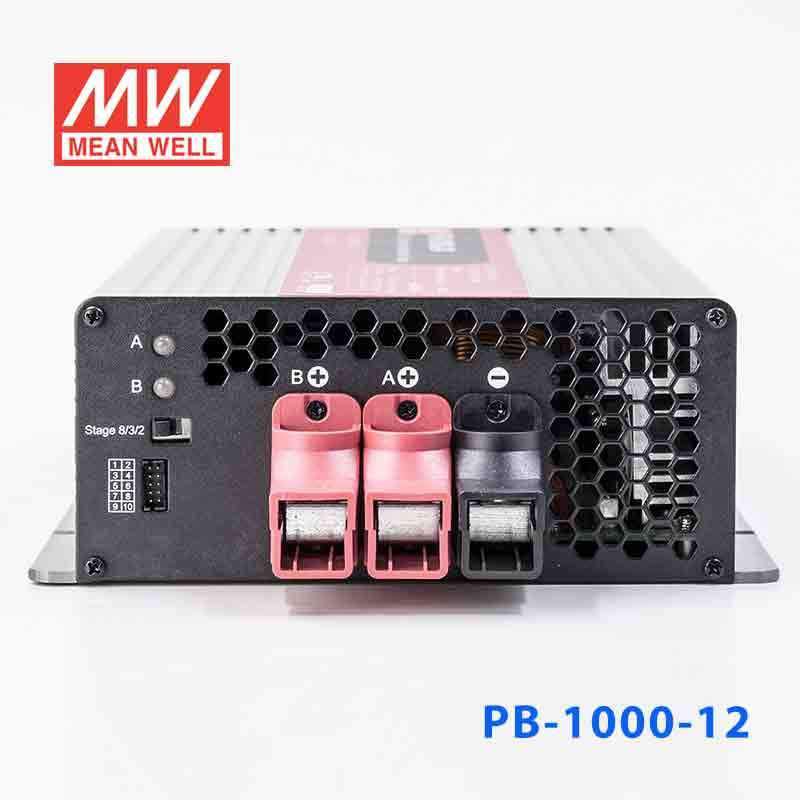

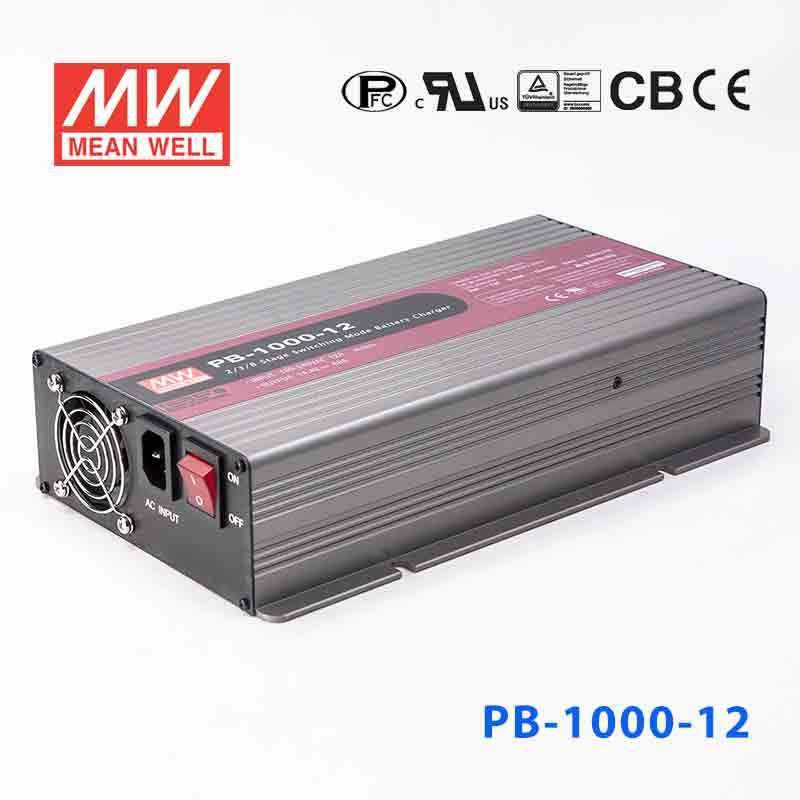

Mean Well PB-1000-12 Battery Chargers 1000W 14.4V 60A - 2/3/8 Stage W/PFC

$331.63 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
2/3/8 stage charging
Built-in battery rescue function
Controlled by micriprocessor
Universal AC input / Full range
Built-in active PFC function PF>0.95
Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
3-color LED loading indicator
Built-in remote ON-OFF control
2-Bank charger
Built-in temperature compensation function
Built-in fan speed control (depends on charging current)
3 years warranty

General Specification

AC input voltage range 90 ~ 264VAC selected by switch; 127 ~ 370VDC
AC inrush current (max.) 25A/115VAC; 50A/230VAC
Over-voltage protection Protection type: Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60ºC(refer to output derating curve)
Safety standards UL1012, TUV BS EN/EN60335-1, BS EN/EN60335-2-29 (except for 48V), BS EN/EN62368-1(48V only), EAC TP TC 004 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024

Dimension (LxWxH) (mm) 300 x 184 x 70mm
Packing 3.5Kg; 4pcs/15Kg/1.83CUFT

Specifications

  • Brand
    Mean Well
  • Series
    PB Series
  • Power Rating
    1000 Watt
  • Output Voltage
    14.4 Volt
  • Rated Current
    60 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    3 Year
  • Length
    11.81 in
  • Width
    7.24 in
  • Height
    2.76 in
  • Weight
    7.72 lb
