Mean Well

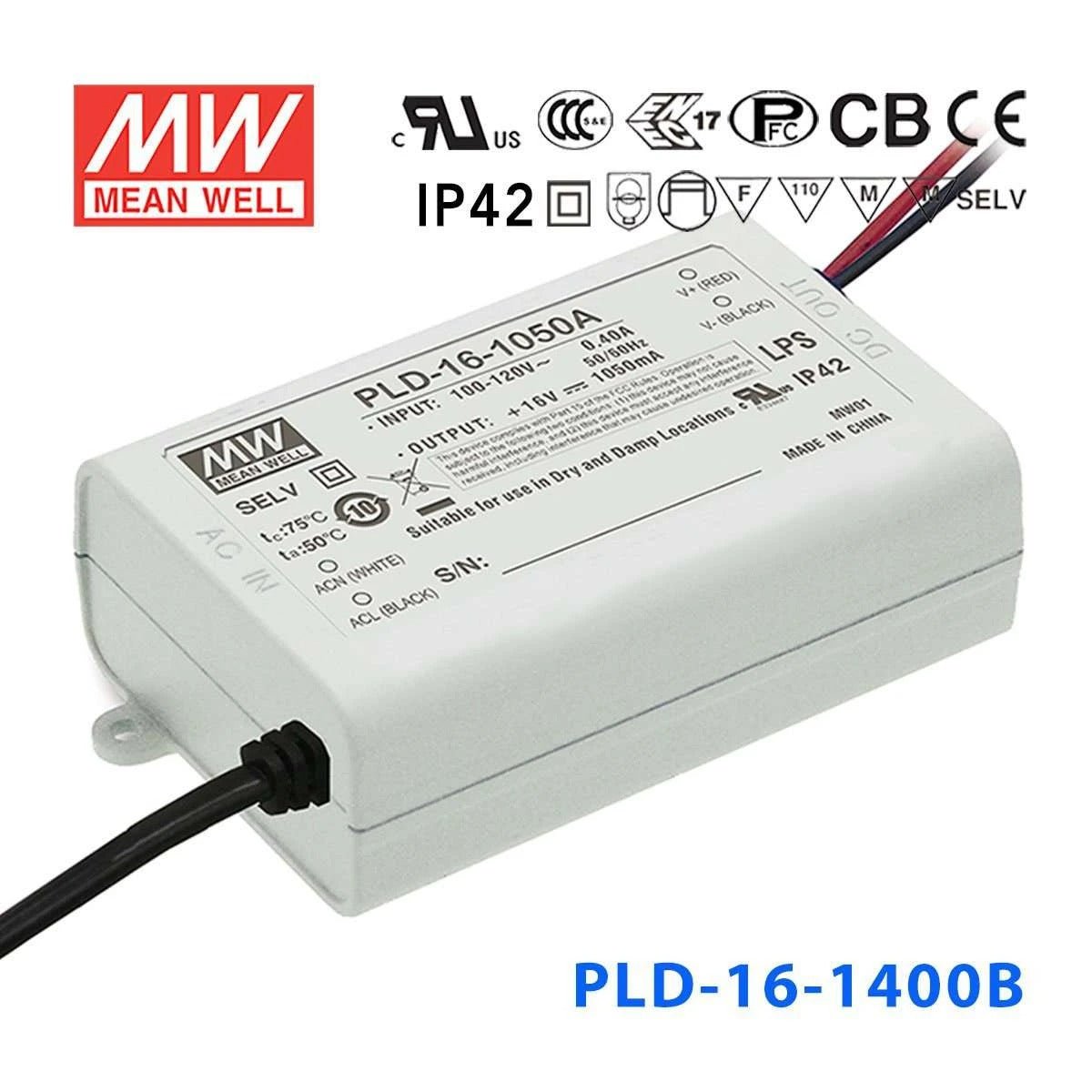

Mean Well PLD-16-1400B Power Supply 16W 1400mA

Name: Mean Well PLD-16-1400B Power Supply 16W 1400mA
Brand: Mean Well
SKU: PLD-16-1400B
Price: 19.09 USD
Availability: InStock

10 units in stock

$19.09 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	115VAC (90~135VAC) or 230VAC (180~295VAC)
AC inrush current (max.)	Cold start, 20A at 230VAC
Withstand voltage	I/P - O/P: 3.75kVAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. protection	95ºC±10ºC (RTH1) shut down o/p voltage, re-power on to recover
Working temperature	-30~+50ºC
Safety standards	UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards	A-Type & PLD-25: FCC part 18 non-consumer equipment; B-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4,5,6,8,11, EN61547
Connection Input	A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH)(mm)	84x 57x 29.5
