Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

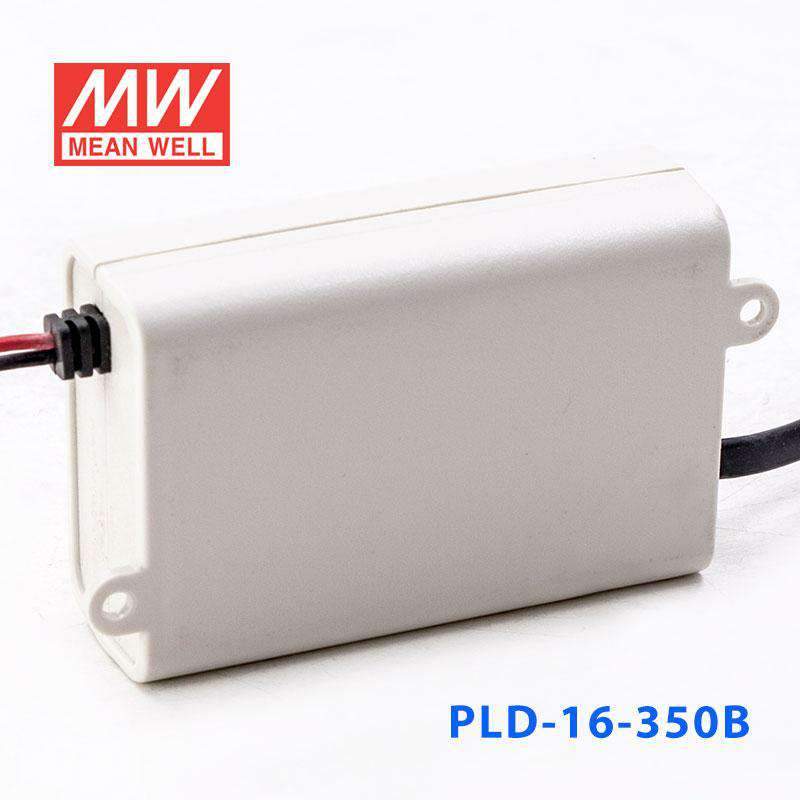

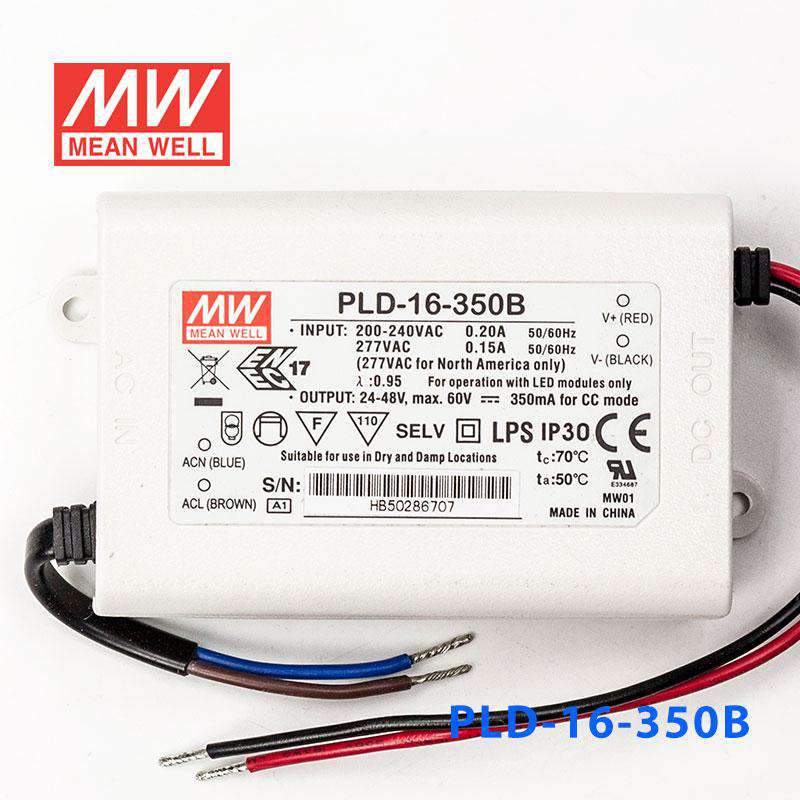

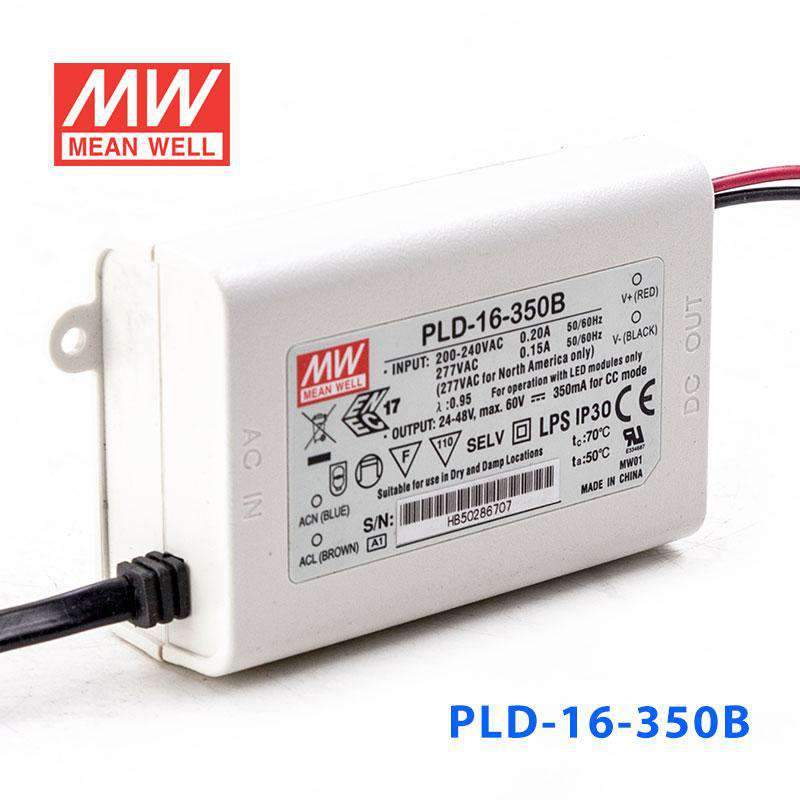

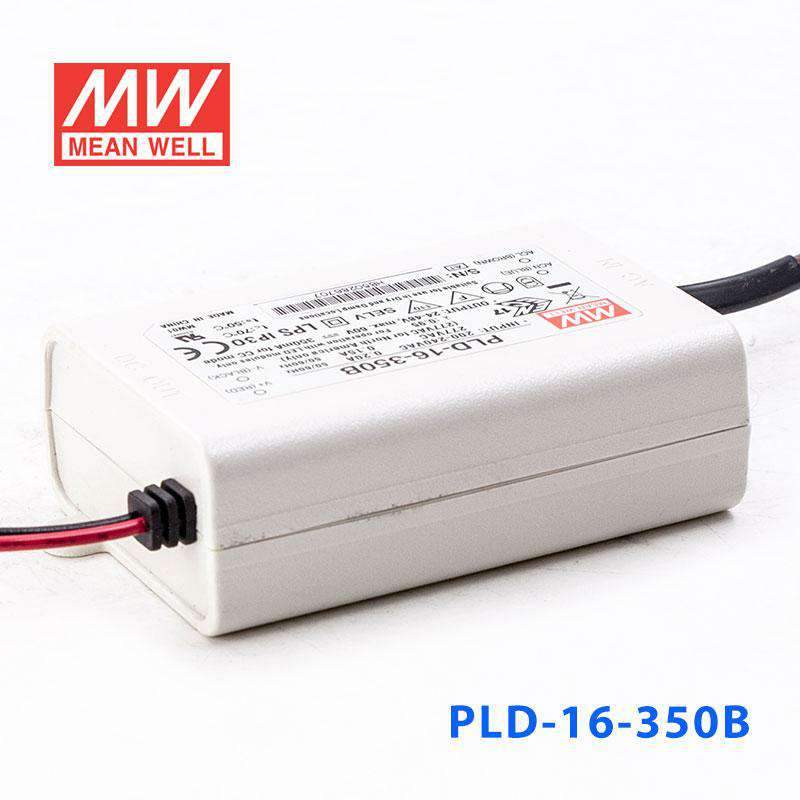

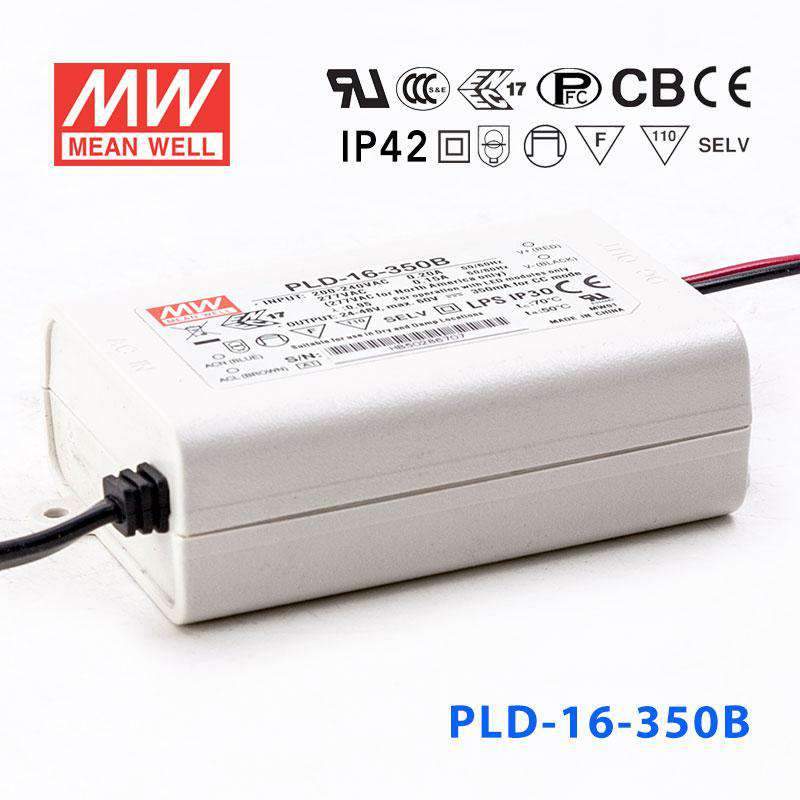

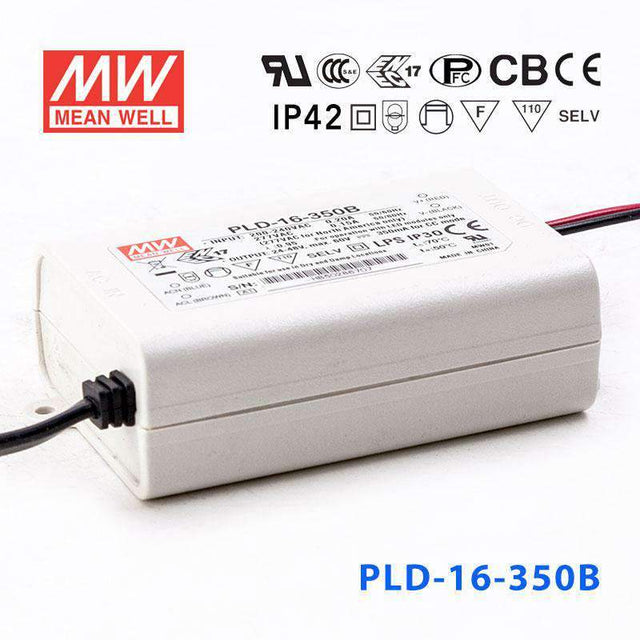

Mean Well PLD-16-350B Power Supply 16W 350mA
plastic case, IP42, Class II design without FG
SKU:
PLD-16-350B
Datasheet:
$17.18 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLD-16-350B Power Supply 16W 350mA
$17.18 USD
Unit price /
Unavailable
Description
Description
Features
| 115VAC or 230VAC input |
| Built-in active PFC function |
| Fully isolated plastic case |
| Constant current design (C.C. mode) |
| IP30 design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over temperature |
| Suitable for indoor LED lighting applications |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 115VAC (90~135VAC) or 230VAC (180~295VAC) |
| AC inrush current (max.) | Cold start, 20A at 230VAC |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Short circuit protection | Hiccup mode, auto-recovery |
| Over Temp. protection | 95ºC±10ºC (RTH1) shut down o/p voltage, re-power on to recover |
| Working temperature | -30~+50ºC |
| Safety standards | UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved |
| EMC standards | A-Type & PLD-25: FCC part 18 non-consumer equipment; B-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4,5,6,8,11, EN61547 |
| Connection Input | A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm) |
| Connection Output | UL1430 18AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 84x 57x 29.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLD Series
-
Power Rating16.8 Watt
-
Output Voltage48 Volt
-
Rated Current0.35 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,cUL,EAC,ENEC,FCC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~50°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
File Downloads
File Downloads
Specification Sheet
Certificates
- ENEC Certificate (PLD-16)(EN)
- CB Certificate (PLD-16)(EN)
- EMC Certificate (PLD-16)(EN)
- UL Certificate (PLD-16)(EN)
- FCC Certificate(PLD-16)(EN)
Test Reports
Catalog
