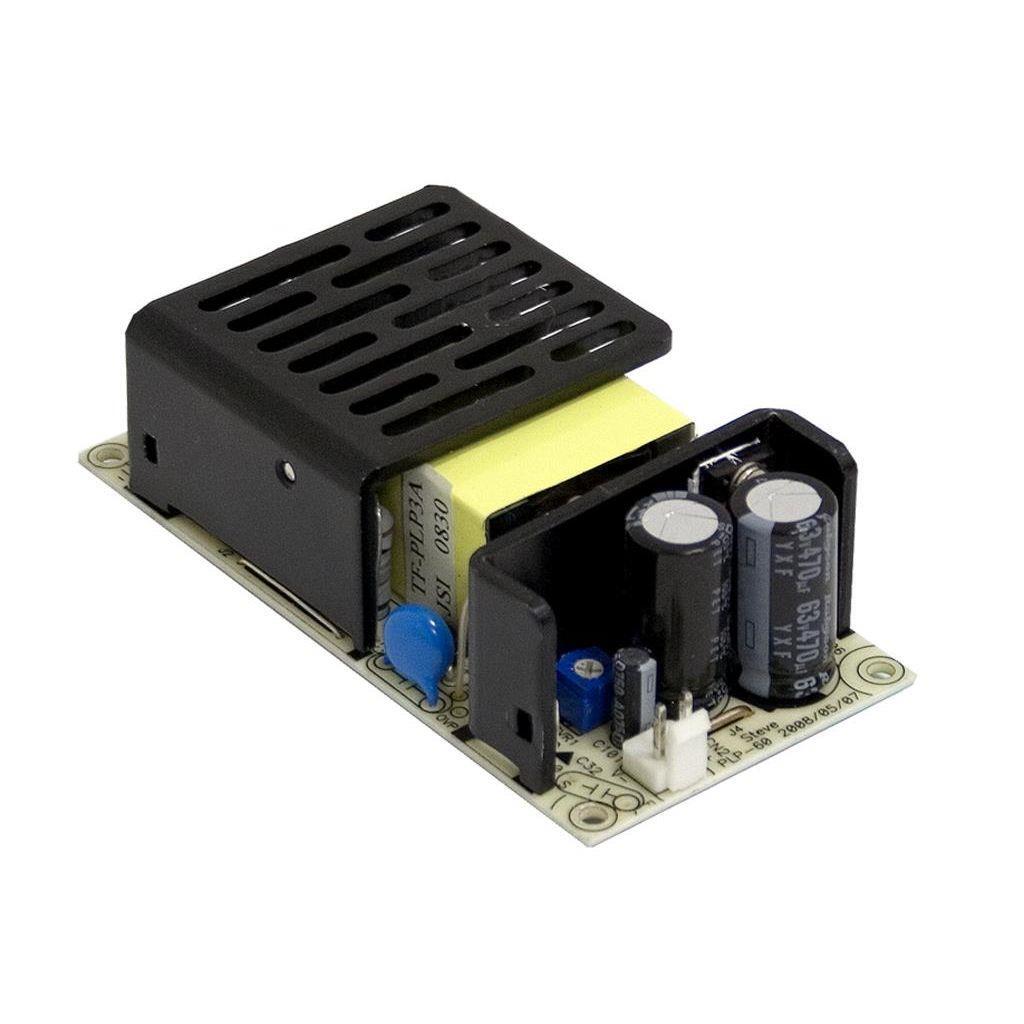

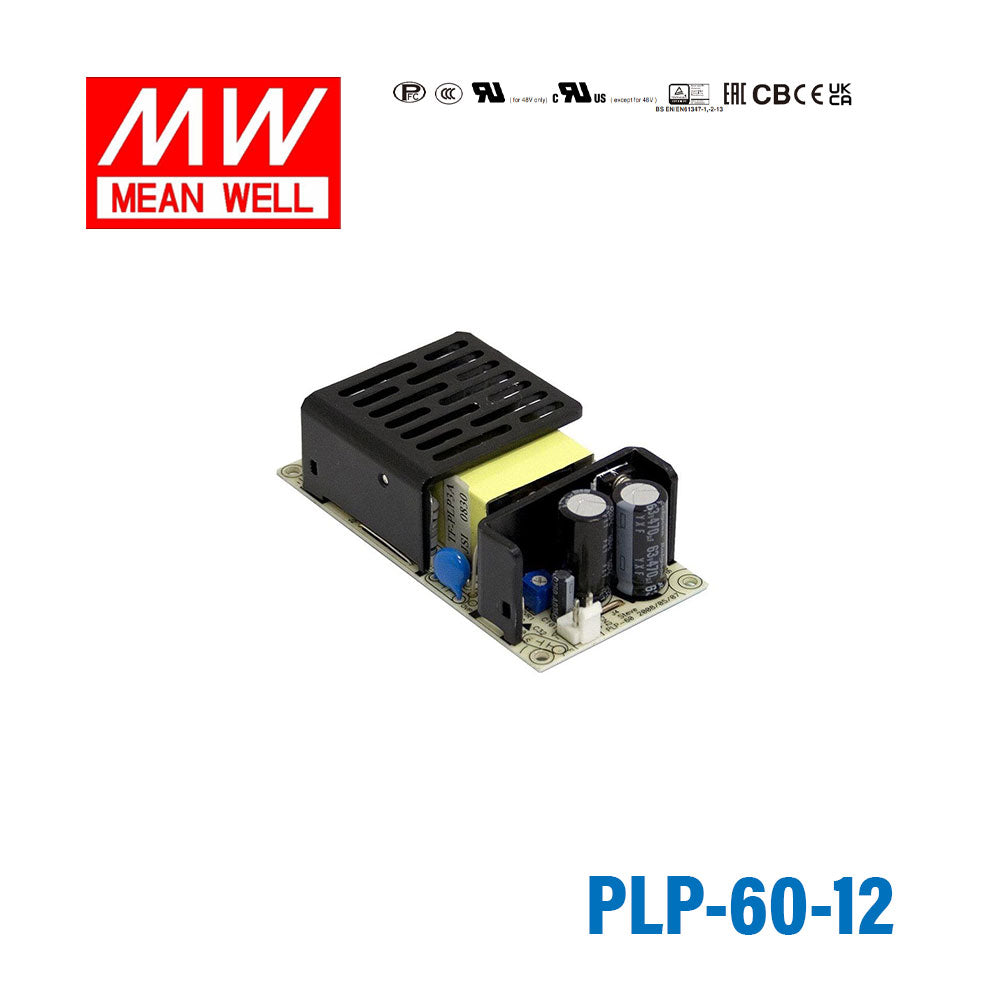

Mean Well PLP-60-12 Single Output LED Driver 60W

PCB type, Class 2 power unit, output current adjustable, suitable for built-in applications

SKU:

PLP-60-12

$32.58 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input/Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

Class 2 power unit

Output current level adjustable

100% full load burn-in test

High reliability

Suitable for built-in applications of LED lighting

2 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 25A at 230VAC
DC adjustment range	75%~100% rated current
Over current protection	100%~110%
Over voltage protection	upto 150% rated voltage
Short circuit protection	Hiccup mode
Withstand voltage	I/P - O/P: 3.75kVAC, I/P - FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C
Safety standards	BS EN/EN61347-1, BS EN/EN61347-2-13
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	JST B3P/B2P
Dimension (LxWxH)	101.6x50.8x26.6
Packing	108pcs/13Kg

Specifications

Brand

Mean Well
Series

PLP Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

Non Dimmable
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

4 in
Width

2 in
Height

1.17 in
Weight

0.35 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the output rating of the Mean Well PLP-60-12?

The PLP-60-12 is rated for 60W with a 12V output and 5A rated current. This makes it suitable for LED lighting applications that require a regulated 12V DC power source within that power range.

Is the Mean Well PLP-60-12 dimmable?

No, this model is specified as non-dimmable. It is intended for applications where a stable fixed-output LED driver is needed rather than integrated dimming control.

What types of applications is the PLP-60-12 designed for?

This model is described as suitable for built-in LED lighting applications. Its plastic case design, Class 2 power unit rating, and free air convection cooling make it appropriate for many enclosed lighting and commercial LED power supply uses.

What input range does the Mean Well PLP-60-12 support?

The PLP-60-12 supports a universal AC input range of 90 to 264VAC, and it can also accept 127 to 370VDC. That wide input range helps it fit projects used across different mains power environments.

Can the PLP-60-12 be used in demanding temperature conditions?

This LED driver is rated for operation from -30°C to 70°C. That range makes it a practical option for environments where lighting power supplies may see both low and elevated ambient temperatures.

What protection and reliability features does the PLP-60-12 include?

The product includes short circuit, overload, and over voltage protection. It also features built-in active PFC, 100% full load burn-in testing, and a 2-year warranty, which supports its positioning as a high-reliability LED driver.
