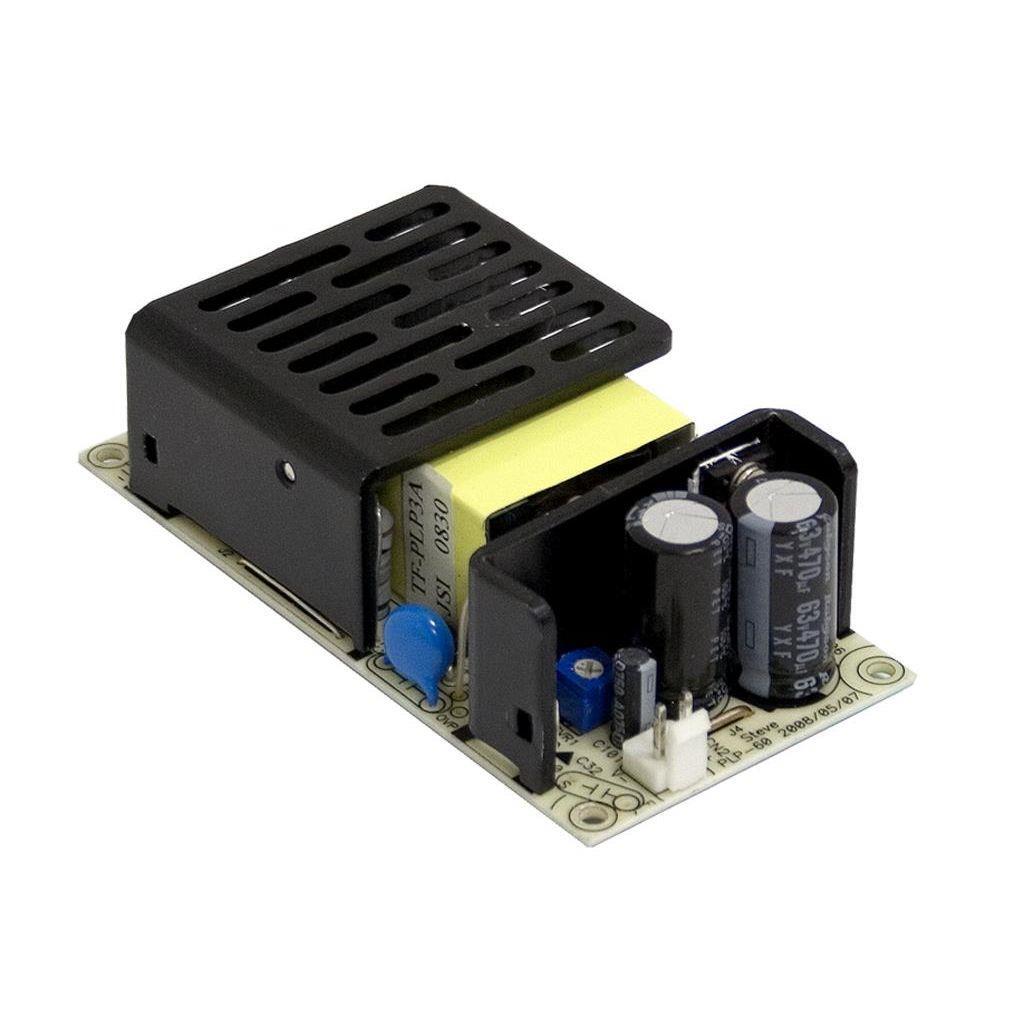

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well PLP-60-24 Single Output LED Driver 60W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PLP-60-24 Single Output LED Driver 60W
The PLP-60 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLP Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.17 in
-
Weight0.35 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well PLP-60-24?
The PLP-60-24 is a 60W single-output LED driver with a 24V output and a rated current of 2.5A. Its input range is 90 to 264VAC or 127 to 370VDC, which supports broad AC input compatibility. This model is listed as non-dimmable.
What types of applications is the PLP-60-24 intended for?
Mean Well positions the PLP-60-24 for built-in LED lighting applications. It is best suited to products that need a 24V supply and stay within the unit's 60W and 2.5A limits. For buyers comparing options, that makes it a fit for enclosed lighting equipment where a compact internal driver is needed.
Is the PLP-60-24 suitable for demanding operating temperatures?
This model has a specified operating temperature range of -30°C to 70°C. It is cooled by free air convection, so it is designed to run without forced-air cooling under appropriate conditions. That range makes it relevant for many indoor and protected equipment environments with wide ambient temperature swings.
What protection and reliability features does the PLP-60-24 include?
The PLP-60-24 includes short circuit, overload, and over voltage protection. Mean Well also specifies built-in active PFC, a 100% full load burn-in test, and a Class 2 power unit design. These details make it a stronger choice for buyers prioritizing established safety and reliability features in a compact 60W driver.
How do I know if the PLP-60-24 is compatible with my 24V LED product?
The key compatibility check is whether your LED product requires 24V and does not exceed 2.5A or 60W. If your load needs more power or a different output voltage, this model is not the correct match. It is also important to note that the PLP-60-24 is non-dimmable, so it is intended for applications that do not require dimming control.
What distinguishes the PLP-60-24 from lower- or higher-power LED drivers?
The PLP-60-24 sits in the mid-range with a 60W output, which can make it a practical choice when smaller drivers do not provide enough capacity but a larger unit would be unnecessary. Its 24V, 2.5A output defines the loads it can support, so comparison should focus on required wattage, voltage, and current. Buyers also may value its lightweight 0.16 kg form factor for built-in lighting designs.
What warranty is offered with the Mean Well PLP-60-24?
The listed warranty period for the PLP-60-24 is 2 years. That matches the product description provided for this model. For procurement and project planning, it gives a clear baseline for warranty coverage on this 60W LED driver.
