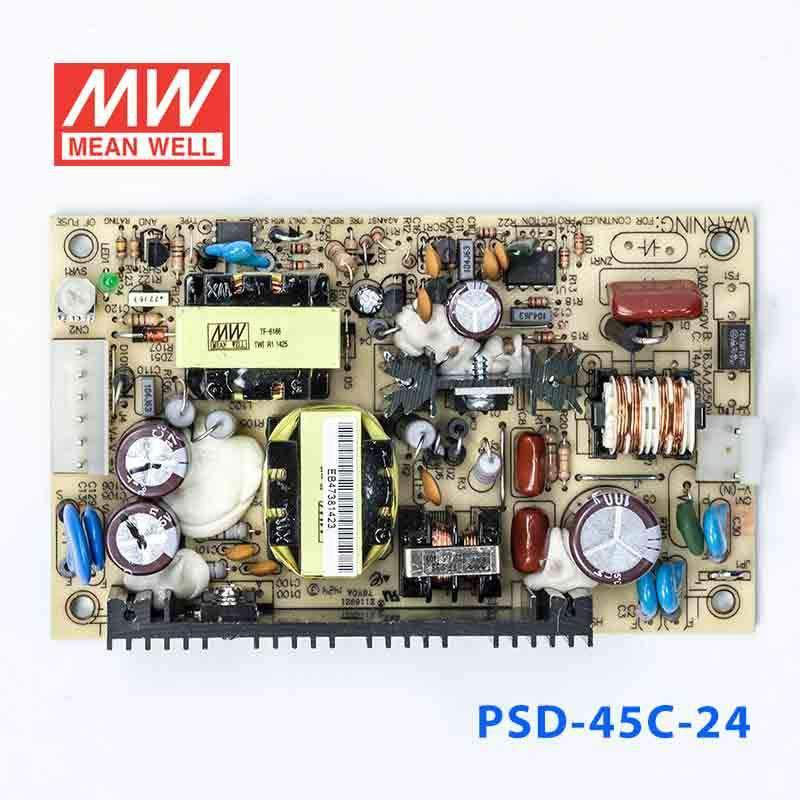

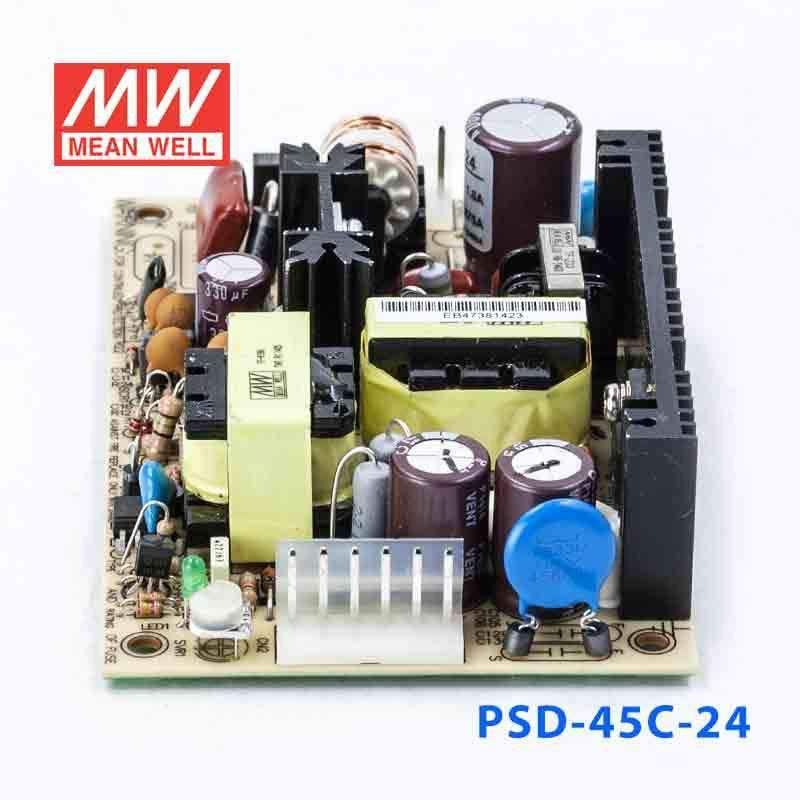

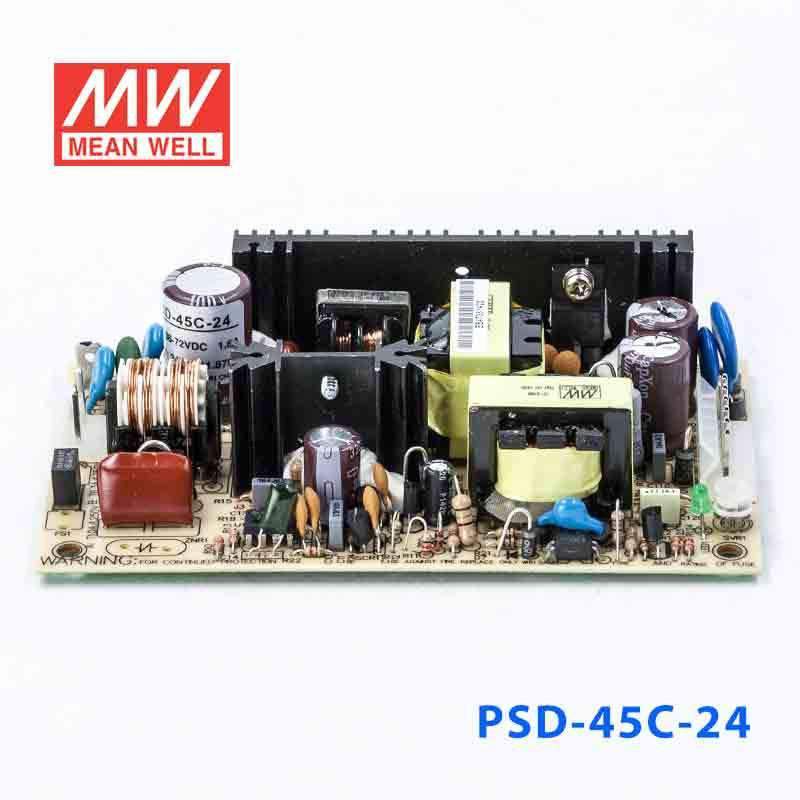

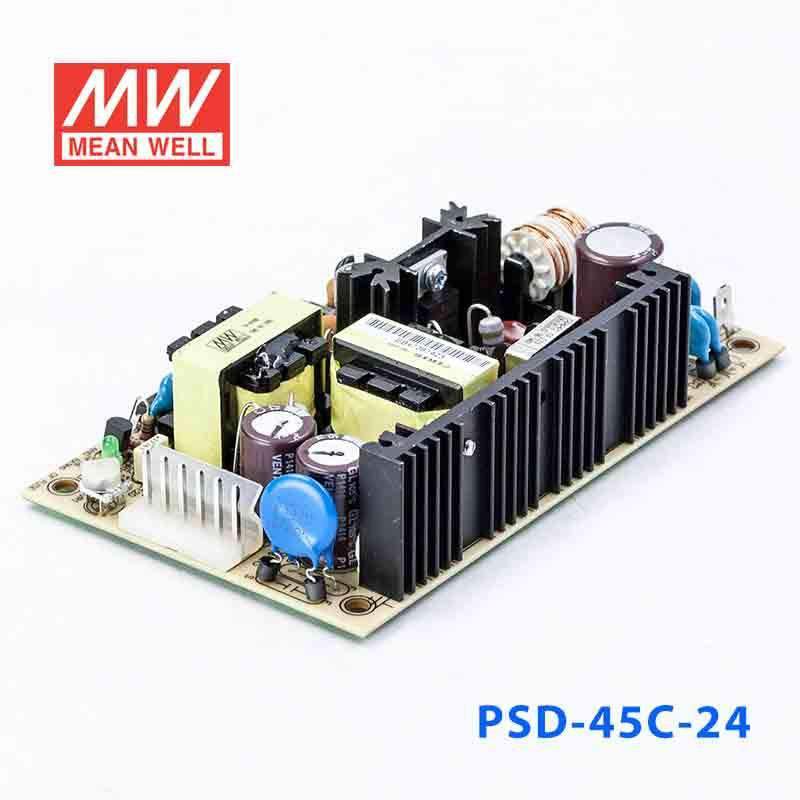

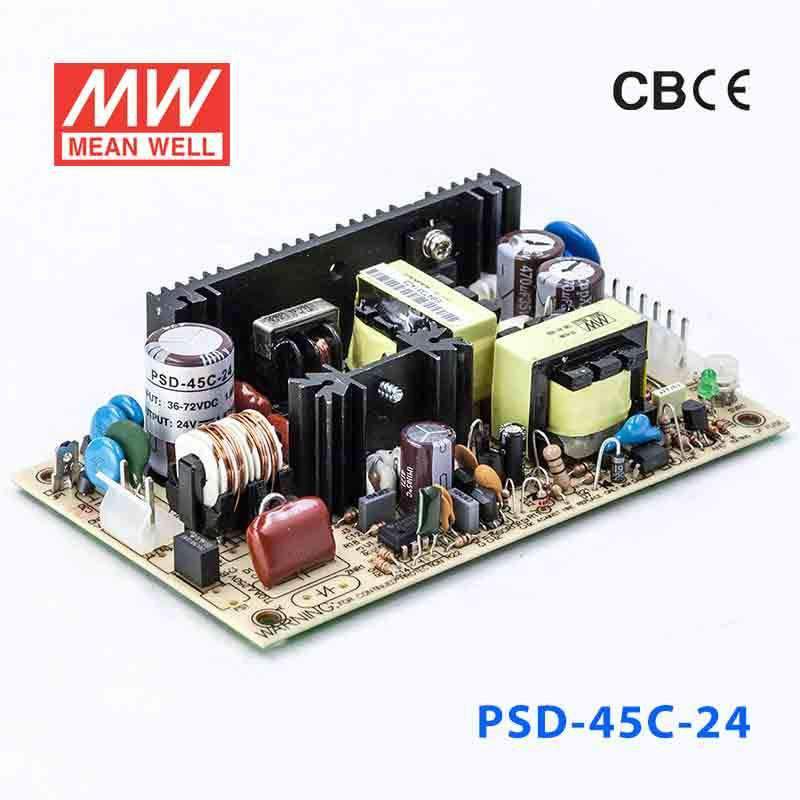

Mean Well PSD-45C-24 DC-DC Converter - 45W - 36~72V in 24V out
The PSD-45C is a 45W Mean Well power converter (input range: 9.2~18VDC).
Key Features
- ✓ Input voltage range: 9.2~18VDC
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating45 Watt
-
Output Voltage24 Volt
-
Rated Current1.87 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5 in
-
Width2.99 in
-
Height1.18 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the PSD-45C-24 for 24V industrial devices powered from a 36-72V DC source?
Yes, this converter accepts 36-72V input and provides a constant 24V output. It is rated for 45W total output with up to 1.88A available.
Is the PSD-45C-24 appropriate for 24V automation modules in higher-voltage control systems?
It fits applications that need regulated 24V from a DC source within the 36-72V range. The output is limited to 1.88A and 45W, so the connected load needs to stay within those values.
Can this model support 24V embedded or communications equipment inside a cabinet?
It can be used for cabinet-mounted 24V electronics when the source voltage is 36-72V and the demand is no more than 1.88A. The converter operates in constant-voltage mode and is part of a 2:1 wide input range series.
Is the PSD-45C-24 rated for outdoor exposure?
The operating temperature is specified as -10°C to +60°C, but the product data provided does not include an IP rating. Without an IP rating in the published specs, the page does not establish outdoor or weatherproof suitability.
What are the main differences between the PSD-45C-24 and related PSD 45-series models?
The listed related models include PSD-45A-5 at 30W, 5V, 6A; PSD-45A-12 at 30W, 12V, 2.5A; and PSD-45A-24 at 30W, 24V, 1.25A. The 45W alternatives are PSD-45B-5 and PSD-45C-5 at 5V and 9A, PSD-45B-12 and PSD-45C-12 at 12V and 3.75A, and PSD-45B-24 at 24V and 1.88A; this unit is the 36-72V input, 24V, 1.88A version.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PSD-45C Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PSD-45C-5 DC-DC Converter - 45W - 36~72V in 5V out | 45W | 5V | 9A | Indoor | $20.00 | View |
| Mean Well PSD-45C-12 DC-DC Converter - 45W - 36~72V in 12V out | 45W | 12V | 3.75A | Indoor | $20.00 | View |
