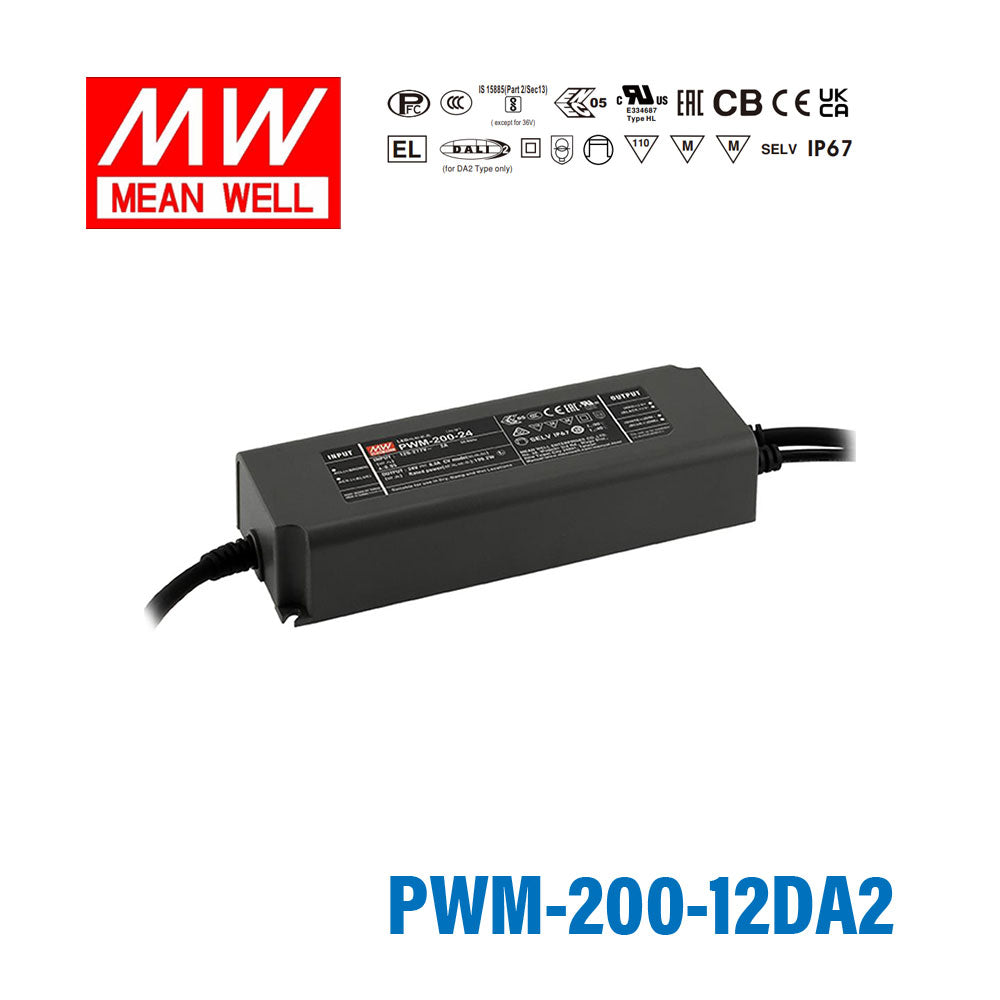

Mean Well PWM-200-12DA2 Power Supply 200W 12V DALI2

PWM style output, fully isolated plastic case, IP67, Class II design without FG, DALI2
$68.28 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015
Plastic housing with class II and PFC design
Emergency lighting application is available according to IEC61347-2-13
Standby power consumption<0.5W
Fully encapsulated with IP67 level
Function options: 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2
Minimum Dimming level 0.2% for DA2 type
Typical lifetime >50000 hours
5 years warranty

General Specification

AC input voltage range 100~305VAC | 142~431VDC
AC inrush current (max.) COLD START 65A(twidth=550 s measured at 50% Ipeak) at 230V μ AC; Per NEMA 410
Overload protection 108%~135% | Hiccup mode or Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection 108%~150% | Shut down o/p voltage, re-power on to recover after fault condition is removed
Over temp. protection Shut down o/p voltage, re-power on to recover after fault condition is removed
Setup, rise, hold up time 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC
Withstand voltage I/P-O/P:3.75kVAC
Working temperature -40~+85ºC (refer to output derating curve)
Safety standards UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm) 195 x 68 x 39.5mm
Packing 1.03Kg; 12pcs/13.4Kg/0.71CUFT

Specifications

  • Brand
    Mean Well
  • Series
    PWM Series
  • Power Rating
    200 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    15 Ampere
  • Input Voltage
    12V~305V
  • No of Output
    1
  • Dimming Control
    DALI,Push Dimming
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    7.68 in
  • Width
    2.68 in
  • Height
    1.56 in
  • Weight
    2.27 lb

File Downloads
