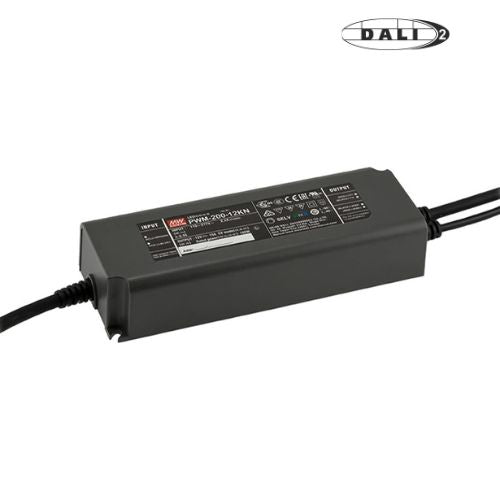

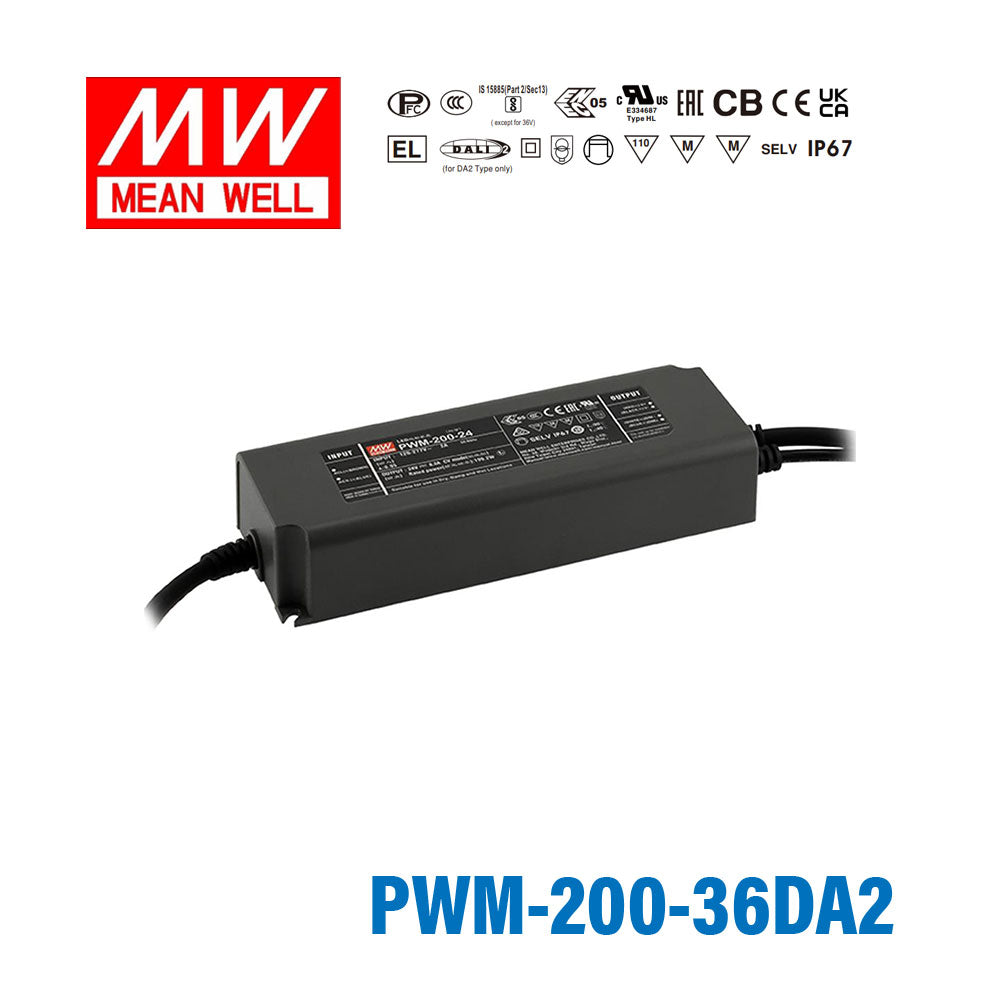

Mean Well PWM-200-36DA2 Power Supply 200W 36V DALI2
$68.28 USD
Unit price /
Unavailable
Description
Description
Features
| Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015 |
| Plastic housing with class II and PFC design |
| Emergency lighting application is available according to IEC61347-2-13 |
| Standby power consumption<0.5W |
| Fully encapsulated with IP67 level |
| Function options: 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2 |
| Minimum Dimming level 0.2% for DA2 type |
| Typical lifetime >50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC | 142~431VDC |
| AC inrush current (max.) | COLD START 65A(twidth=550 s measured at 50% Ipeak) at 230V μ AC; Per NEMA 410 |
| Overload protection | 108%~135% | Hiccup mode or Constant current limiting recovers automatically after the fault condition is removed |
| Over-voltage protection | 108%~150% | Shut down o/p voltage, re-power on to recover after fault condition is removed |
| Over temp. protection | Shut down o/p voltage, re-power on to recover after fault condition is removed |
| Setup, rise, hold up time | 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC |
| Withstand voltage | I/P-O/P:3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm) |
| Dimension (LxWxH) (mm) | 195 x 68 x 39.5mm |
| Packing | 1.03Kg; 12pcs/13.4Kg/0.71CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating200 Watt
-
Output Voltage36 Volt
-
Rated Current5.55 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
