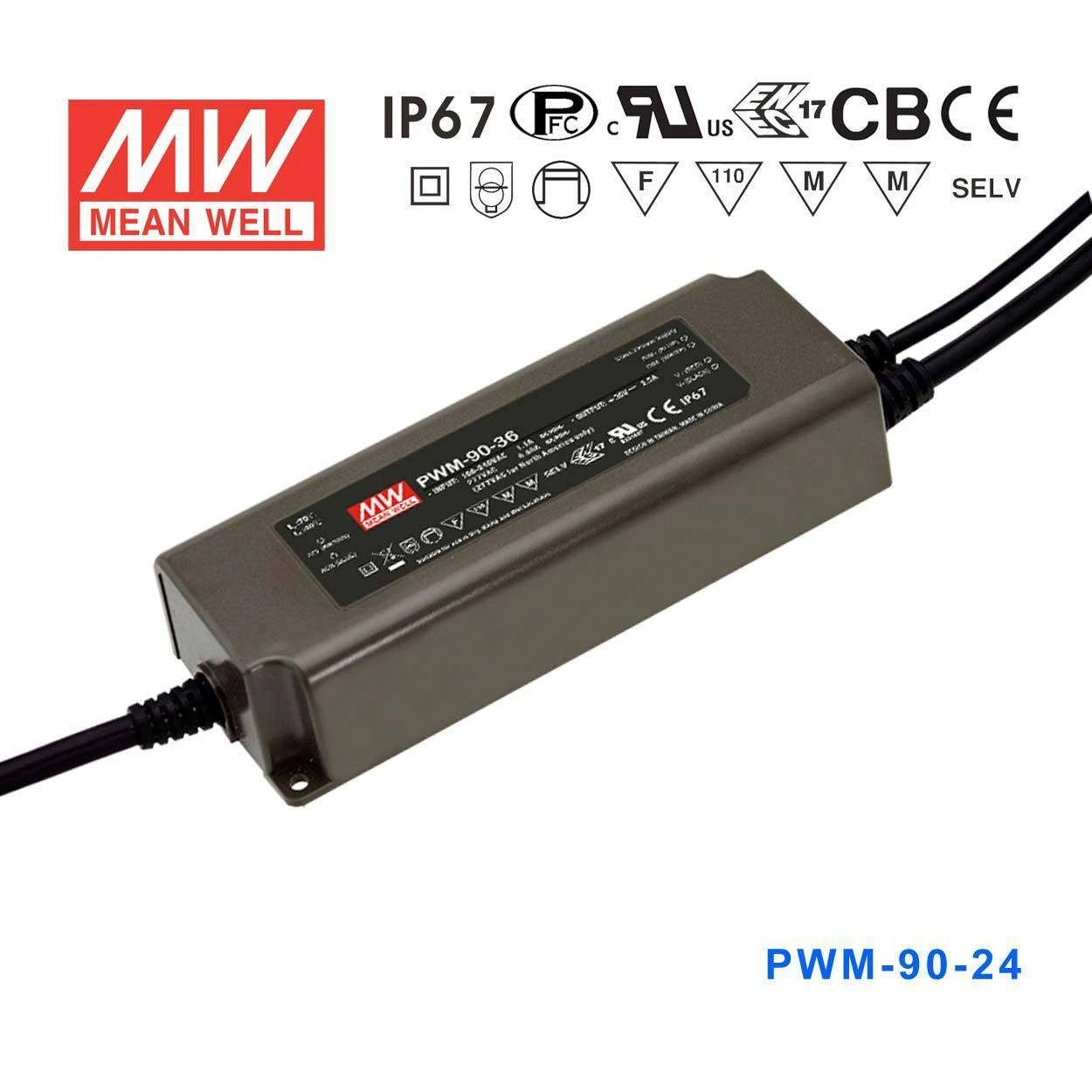

Mean Well PWM-90-24 Power Supply 90W 24V - Dimmable

Yes. The IP67 waterproof rating makes the PWM-90-24 suitable for outdoor landscape lighting where the driver may be exposed to rain or moisture. It outputs 24V at up to 3.75A (90W), enough to run a substantial length of 24V strip lighting.

The PWM-90-24 includes built-in 3-in-1 dimming, which accepts PWM signal, 0–10V analog, and resistance dimming inputs. This allows it to work with a broad range of compatible dimmers and control systems without needing an external dimming interface.

Yes. At 90W and 24V, it provides enough power for medium-scale 24V LED strip signage, and the IP67 rating ensures the driver can be mounted in locations exposed to weather. The wide 90–305VAC input also makes it easy to deploy in varied electrical environments.

The driver delivers up to 90W at 24V. If your 24V strip is rated at 14.4W per meter, you could power approximately 6.25 meters (90W ÷ 14.4W/m ≈ 6.25m). For long-term continuous use, limit load to 80% capacity (72W) — about 5 meters at that strip rating. Always check your strip's rated power per meter.

Yes. The operating temperature range of -40°C to +85°C allows this driver to function reliably in cold-storage and refrigerated environments. The fully sealed IP67 plastic enclosure also protects against condensation that is common in those settings.

Yes. The 3-in-1 dimming feature includes 0–10V analog dimming as one of its supported methods, making the PWM-90-24 directly compatible with 0–10V lighting controllers commonly used in commercial and hospitality settings.
