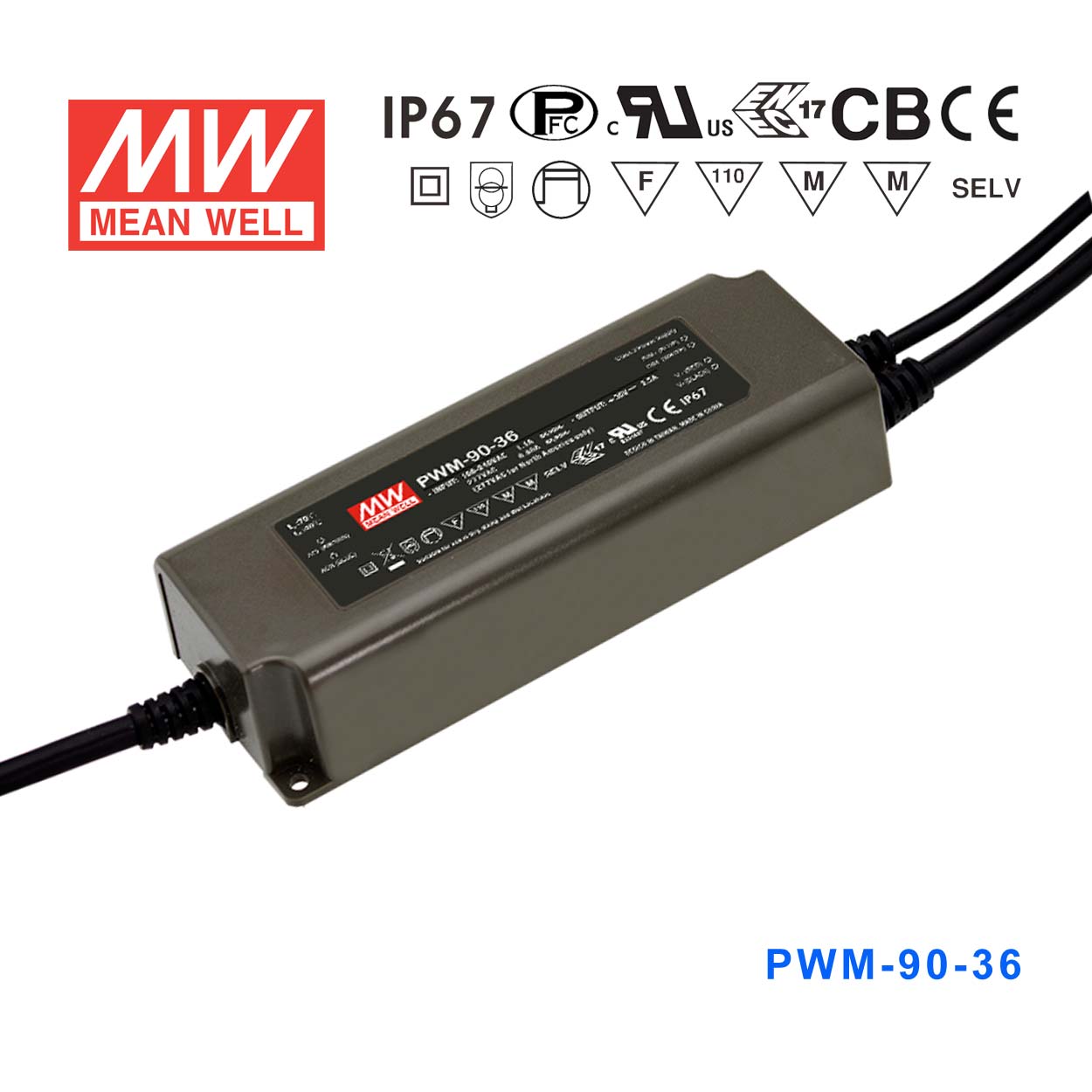

Mean Well PWM-90-36DA Power Supply 90W 36V - DALI
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-90-36DA Power Supply 90W 36V - DALI
Description
Description
The PWM-90 is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750(except for DA-Type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67, BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004,GB19510.1,GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the PWM-90-36DA be used with a DALI lighting controller for zone dimming?
Yes. The PWM-90-36DA has a native DALI interface allowing it to receive broadcast or individually addressed dimming commands from any DALI-compliant controller. It can be grouped with other DALI devices for coordinated zone dimming.
Is the PWM-90-36DA appropriate for outdoor or wet-location LED lighting?
Yes. The IP67 waterproof rating confirms protection against dust and temporary water immersion. This makes it suitable for outdoor architectural lighting, covered exterior signage, and wet-location fixtures where the driver is not permanently submerged.
How much 36V LED strip can the PWM-90-36DA support?
The driver outputs 90W at 36V (2.5A maximum). A 36V strip rated at 9W per meter would allow approximately 10 meters (90W ÷ 9W/m = 10m). For continuous-duty installations, limit load to 80% of rated output (72W) — about 8 meters at that strip rating. Confirm the wattage per meter on your specific strip.
Can the PWM-90-36DA drive 36V LED strips in a DALI-controlled retail environment?
Yes. The DALI interface allows precise, addressable dimming in a retail lighting control system. At 90W and 36V, it is capable of driving display lighting strips or perimeter accent strips within a single DALI zone.
Does the PWM-90-36DA function reliably in high-temperature environments like enclosed sign cabinets?
Yes. The operating temperature range extends up to +85°C, which accommodates the elevated ambient temperatures that can build up inside sealed sign cabinets or equipment enclosures. Ensure adequate airflow around the driver to maintain temperatures within spec.
Can the PWM-90-36DA be used for 36V LED strips in architectural facade lighting?
Yes. The IP67 waterproof rating allows outdoor mounting, and the DALI interface supports integration into facade lighting control systems where multiple zones or scenes are required. The 90W output provides sufficient capacity for a defined facade lighting zone.
Other PWM-90 Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PWM-90-24 Power Supply 90W 24V - Dimmable | 90W | 24V | 3.75A | IP67 | $36.37 | View |
| Mean Well PWM-90-24DA2 Power Supply 90W 24V DALI2 | 90W | 24V | 3.75A | IP67 | $50.82 | View |
| Mean Well PWM-90-12 Power Supply 90W 12V - Dimmable | 90W | 12V | 7.5A | IP67 | $42.44 | View |
| Mean Well PWM-90-48DA2 Power Supply 90W 48V DALI2 | 90W | 48V | 1.88A | IP67 | $50.82 | View |
| Mean Well PWM-90-48DA Power Supply 90W 48V - DALI | 90W | 48V | 1.88A | IP67 | $52.82 | View |
| Mean Well PWM-90-48 Power Supply 90W 48V - Dimmable | 90W | 48V | 1.88A | IP67 | $44.52 | View |
| Mean Well PWM-90-36 Power Supply 90W 36V - Dimmable | 90W | 36V | 2.5A | IP67 | $44.52 | View |
| Mean Well PWM-90-24DA Power Supply 90W 24V - DALI | 90W | 24V | 3.75A | IP67 | $47.55 | View |
| Mean Well PWM-90-12DA2 Power Supply 90W 12V DALI2 | 90W | 12V | 7.5A | IP67 | $50.82 | View |
| Mean Well PWM-90-12DA Power Supply 90W 12V - DALI | 90W | 12V | 7.5A | IP67 | $50.82 | View |
