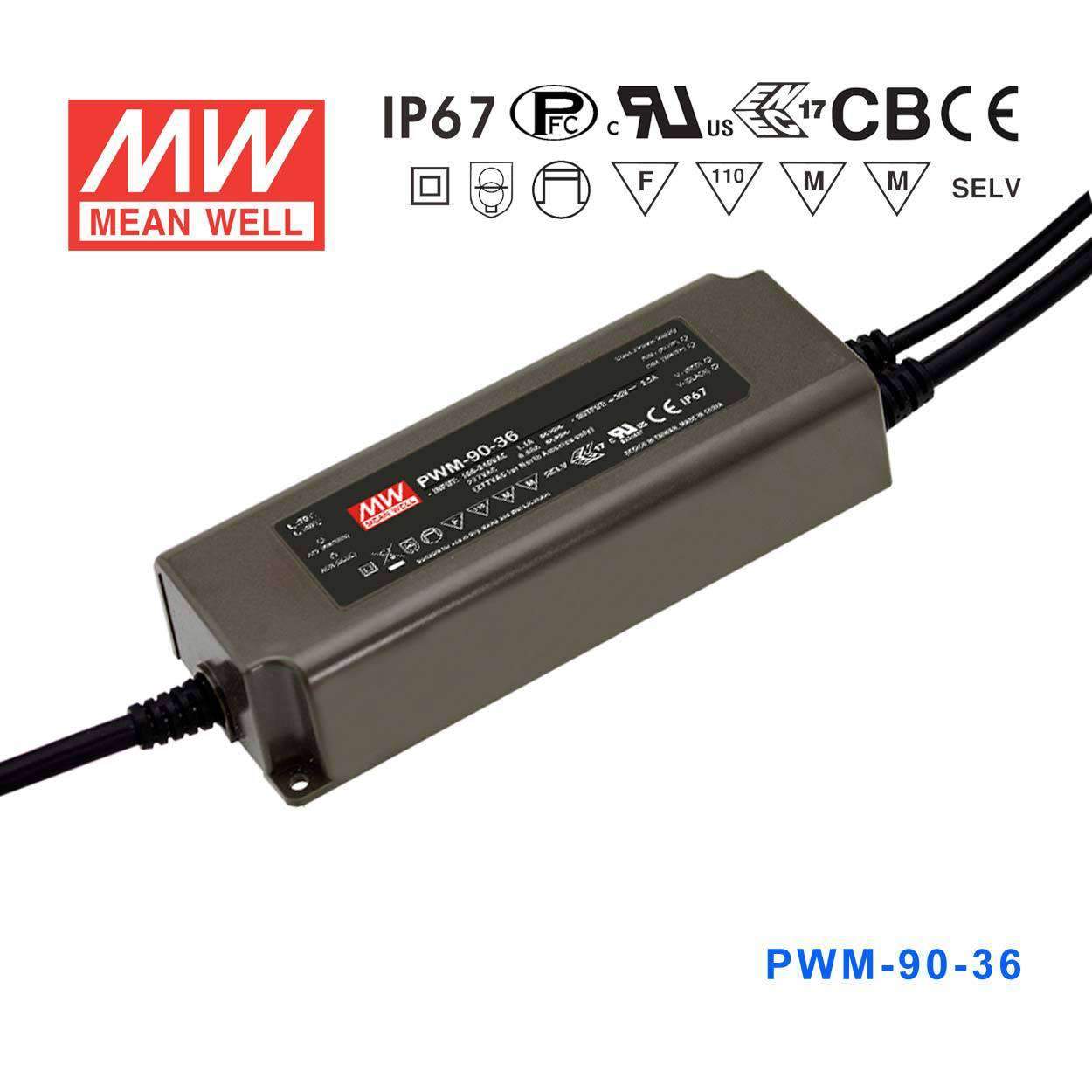

Mean Well PWM-90-36 Power Supply 90W 36V - Dimmable 2.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PWM-90-36 Power Supply 90W 36V - Dimmable 2.5A
The PWM-90 is a 90W Mean Well DIN rail power converter with a 171mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ 171mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 UL8750(except for DA-Type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67, BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004,GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating90 Watt
-
Output Voltage36 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can the PWM-90-36 power 36V LED strips used in commercial signage?
Yes. The PWM-90-36 outputs 36V at up to 2.5A (90W) and supports 36V LED strip loads. At 90W it is suitable for medium-length runs of 36V strip used in illuminated channel letter signage or box signs.
What dimming inputs does the PWM-90-36 accept?
The PWM-90-36 includes built-in 3-in-1 dimming, supporting PWM signal, 0–10V analog, and resistance dimming. This flexibility allows it to work with a wide variety of compatible dimmer controls without requiring an external adapter.
Is the PWM-90-36 suitable for outdoor LED lighting applications?
Yes. With an IP67 waterproof rating, the PWM-90-36 is protected against dust and temporary water immersion, making it appropriate for outdoor LED lighting where the driver may be exposed to rain. The operating range of -40°C to +85°C also supports year-round outdoor installation.
How much 36V LED strip can the PWM-90-36 drive?
The driver provides 90W at 36V. A 36V strip rated at 10W per meter would support approximately 9 meters (90W ÷ 10W/m = 9m). For continuous operation, apply an 80% derating (72W effective), giving about 7.2 meters at that strip density. Always verify the rated power per meter of your specific strip.
Can the PWM-90-36 be used for LED lighting in a cold-climate outdoor installation?
Yes. The specified operating temperature range of -40°C to +85°C ensures reliable operation in extremely cold outdoor environments. The IP67-rated fully enclosed plastic case also guards against moisture and condensation ingress.
Is the PWM-90-36 compatible with a standard PWM dimmer for theatrical or display lighting?
Yes. The 3-in-1 dimming feature includes PWM signal input, which is commonly used in theatrical and display lighting control scenarios. Ensure your dimmer outputs a compatible PWM signal level and frequency for correct operation.
