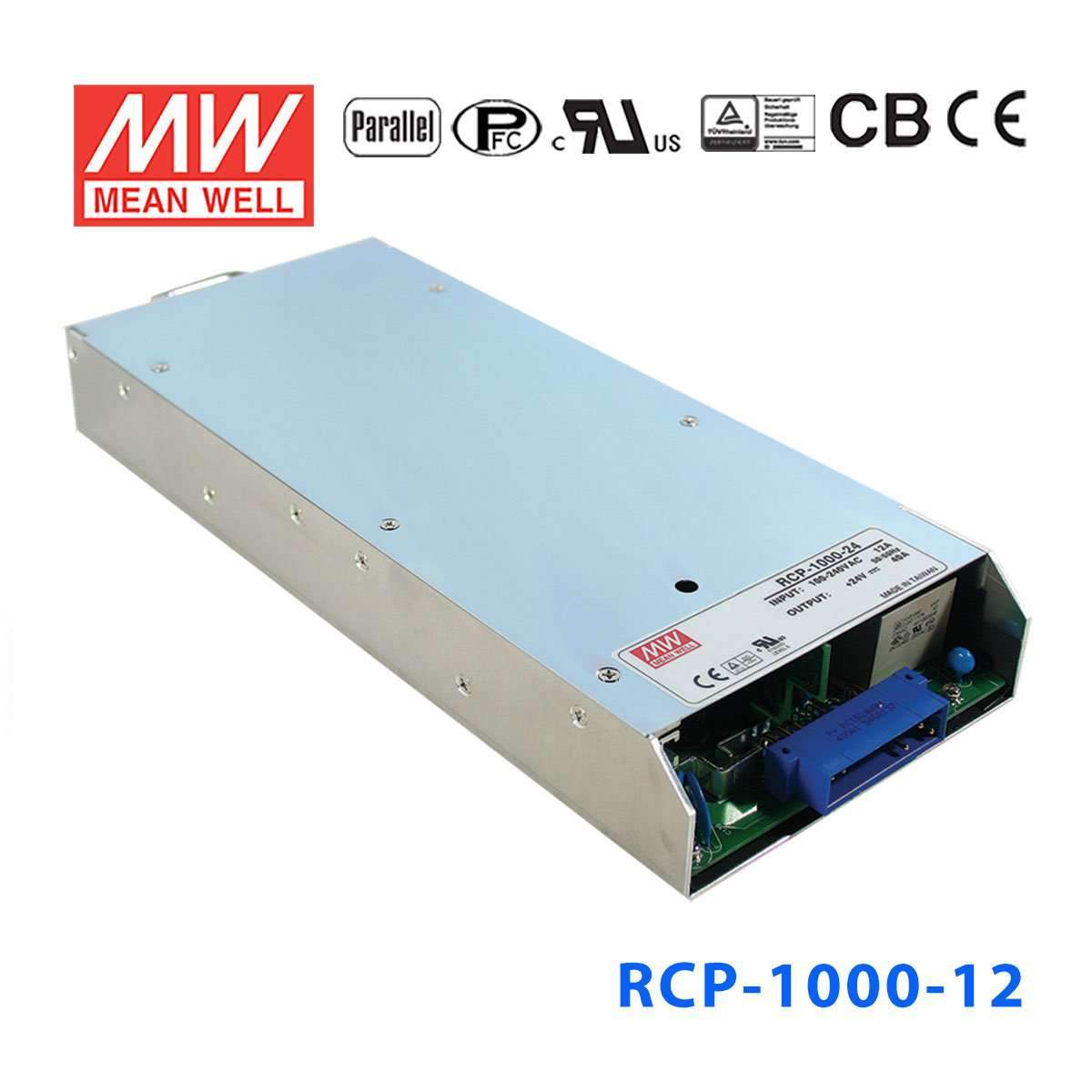

Mean Well RCP-1000-12 power supply 1000W 12V 60A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RCP-1000-12 power supply 1000W 12V 60A
The RCP-1000 is a 720W Mean Well power supply (input: 90~264VAC, operating temperature: -20~+60°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 60A
- ✓ Operating temperature: -20~+60°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesRCP Series
-
Power Rating720 Watt
-
Output Voltage12 Volt
-
Rated Current60 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.25 lb
::specification::
Frequently Asked Questions
Can I use the RCP-1000-12 for a 12V industrial control or automation system?
Yes, it is suited to 12V automation and control loads that need a fixed DC output, because this model is rated for 12V constant voltage output at 60A. The provided power rating is 720W, so it is intended for higher-current 12V systems rather than light control loads.
Is this a good fit for 12V rack-mounted IT or telecom power shelves?
It can fit rack power environments where a compact AC-DC module is needed, since the chassis is 295.0 × 127.0 × 41.0 mm and the unit supports hot swap. Its 12V, 60A output also aligns with high-current DC distribution needs in centralized equipment.
Can the RCP-1000-12 be used in redundant power systems?
Yes, this model is designed for parallel-capable systems because it supports active current sharing up to 3000W. That makes it relevant for industrial or IT equipment where higher system power or redundancy is required from multiple supplies.
Would this model work for 12V battery-backed DC bus equipment?
It can be used in 12V DC bus applications that require a programmable output stage, because the specs list output voltage programmable and constant voltage operation. The 60A rating gives it headroom for heavier 12V equipment loads within the stated 720W output rating.
What are the main differences between the RCP-1000-12 and its RCP siblings?
In the listed RCP range, comparable models include RCP-1000-12-C at 1000W 12V 60A, RCP-1000-24 at 960W 24V 40A, and RCP-1000-48 at 1008W 48V 21A. Higher-output siblings include RCP-1600-12 at 1500W 12V 125A, RCP-1600-24 at 1608W 24V 67A, RCP-1600-48 at 1608W 48V 33.5A, RCP-1UT at 3000W 12V 60A, RCP-2000-12 at 1200W 12V 100A, RCP-2000-24 at 1920W 24V 80A, and RCP-2000-48 at 2016W 48V 42A; other listed siblings are RCP-1U, RCP-1UI, and RCP-MU. This model is the 12V, 60A constant-voltage option in that set with a provided power rating of 720W.
Is the RCP-1000-12 suitable for outdoor enclosures or only indoor equipment?
The operating temperature range is -20°C to +60°C, which supports use in a wide range of equipment environments. No IP rating is provided here, so the specs do not establish exposed outdoor or weatherproof suitability.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RCP-1000 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RCP-1000-48 power supply 1000W 48V 21A | 1008W | 48V | 21A | Indoor | $323.70 | View |
| Mean Well RCP-1000-24 power supply 1000W 24V 40A | 960W | 24V | 40A | Indoor | $290.82 | View |
| Mean Well RCP-1000-12-C AC-DC 19 inch rack power supply with PFC 1000W 60A | 1000W | 12V | 60A | Indoor | $332.72 | View |
