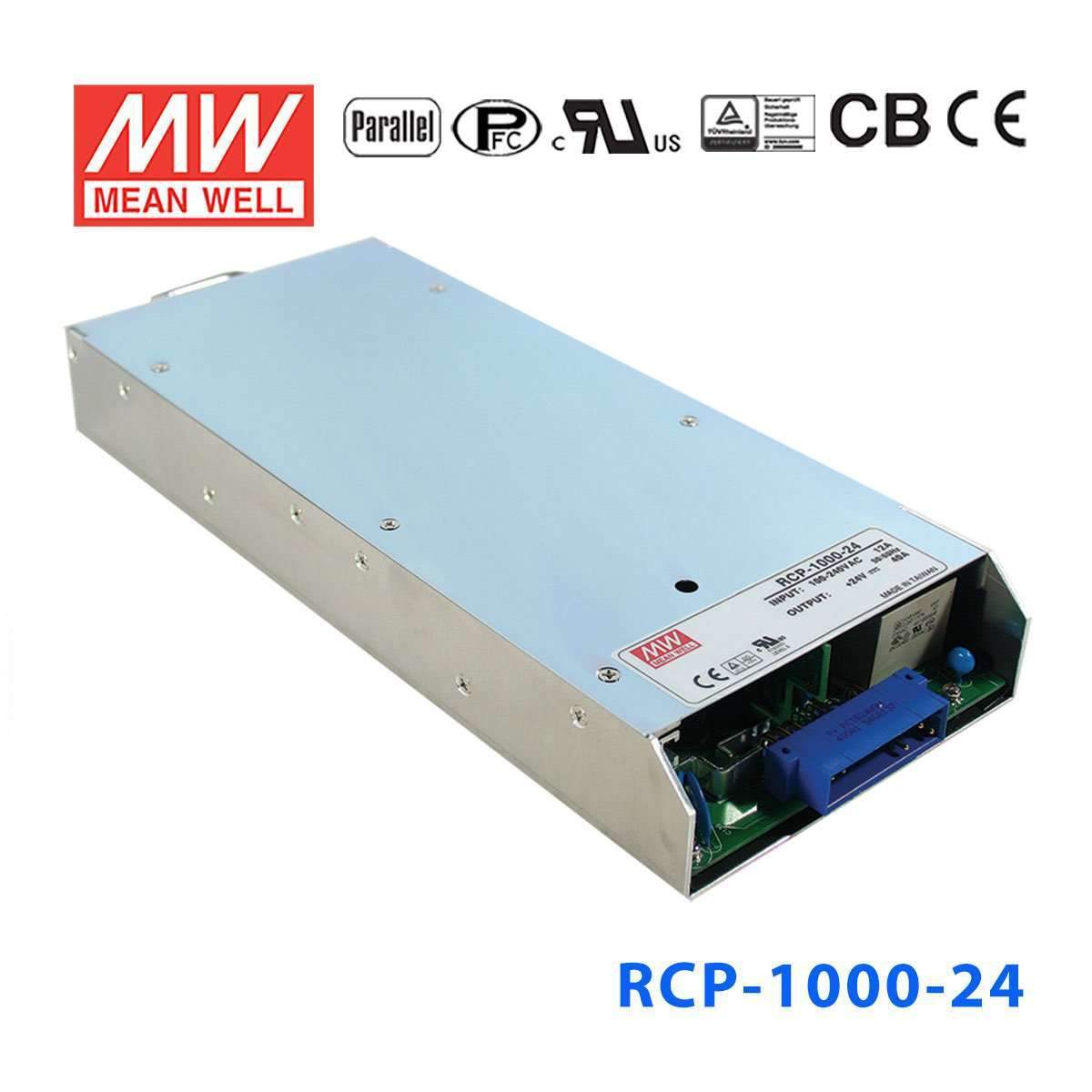

Mean Well RCP-1000-24 power supply 1000W 24V 40A
high efficiency up to 89%, output voltage programmable, active currecnt sharing up to 3000W, support hot swap
8% off
$290.56 USD
$317.31
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well RCP-1000-24 power supply 1000W 24V 40A
$290.56 USD
$317.31
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in 5V/0.3A standby power |
| Built-in active PFC function |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| High power density 10.7W/inch2 |
| 1U low profile: 44mm |
| Output voltage can be trimmed between 90% ~ 110% of the rated output voltage |
| Active current sharing up to 3000W (3 units) in one 19"" rack, 3 racks max. can be operated in parallel (up to 8 units) |
| Remote control for single unit |
| Built-in remote sense function |
| Hot-swap operation |
| Internal OR-ing diode |
| AC OK and DC OK signal output |
| Optional I2C serial data bus |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC |
| DC adjustment range | ±3% rated output voltage |
| Overload protection | 105%~125% constant current limiting, auto-recovery |
| Over voltage protection | 110%~135% rated output voltage |
| Setup, rise, hold up time | 1000ms, 60ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1 minute |
| Working temperature | -20~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61204-3, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level |
| Dimension (LxWxH) (mm) | 295x 127x 41 mm |
| Packing | 1.91kg (single unit of RCP-1000); 12.3kg (empty rack) |
| CASE: | 952A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRCP Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.25 lb
