Mean Well RPD-65C Power Supply 65W 5V 12V 4.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPD-65C Power Supply 65W 5V 12V 4.5A
Overview
RPD-65C is the CH1: 12V / CH2: 5V output model of this series: rated current CH1: 4.5A / CH2: 1.2A, rated power 60W, typical efficiency 79%.
Features
- Universal AC input/Full range
- 12V or 24V high peak output current capability
- Low leakage current<1mA
- Protections: Short circuit / Overload / Over voltage
- 60W free air convection, 77.1W with 18CFM forced air
- 100% full load burn-in test
- Fixed switching frequency at 65KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- CH1: 12V / CH2: 5V
- RATED CURRENT
- CH1: 4.5A / CH2: 1.2A
- CURRENT RANGE
- CH1: 0 ~ 5.8A / CH2: 0 ~ 1.5A
- PEAK LOADNote.4
- CH1: 7.5A / CH2: Rated load
- RATED POWER
- 60W
- OUTPUT POWER (max.)
- Rated output power for convection; 77.1W with 18CFM min. forced air
- RIPPLE & NOISE (max.)Note.2
- CH1: 120mVp-p / CH2: 50mVp-p
- VOLTAGE ADJ. RANGE
- CH1:11.4 ~ 12.8V
- VOLTAGE TOLERANCENote.3
- CH1: ±2.0% / CH2: ±5.0%
- LINE REGULATION
- CH1: ±1.0% / CH2: ±1.0%
- LOAD REGULATION
- CH1: ±2.0% / CH2: ±5.0%
- SETUP, RISE TIME
- 800ms, 20ms at full load
- HOLD UP TIME (Typ.)
- 20ms at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~370VDC
- FREQUENCY RANGE
- 47 ~ 440Hz
- EFFICIENCY (Typ.)
- 79%
- AC CURRENT (Typ.)
- 1.5A/115VAC 0.9A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 25A/115VAC 50A/230VAC
- LEAKAGE CURRENT
- <1mA
PROTECTION
- OVERLOAD
- 90 ~ 125W output power Protection type : Hiccup mode, recovers automatically after fault condition is removed.
- OVER VOLTAGE
- CH1:13.8 ~ 16.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT
- WORKING TEMP.

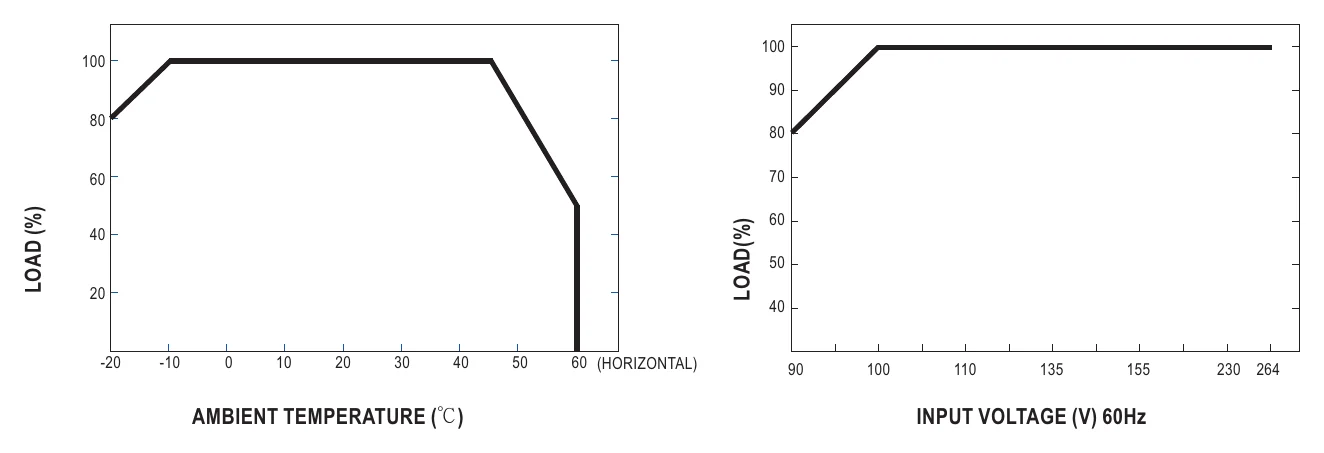

- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.04%/℃ (0 ~ 50℃) on CH1 output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2701.1K hrs min. Telcordia SR-332 (Bellcore) ; 523.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION

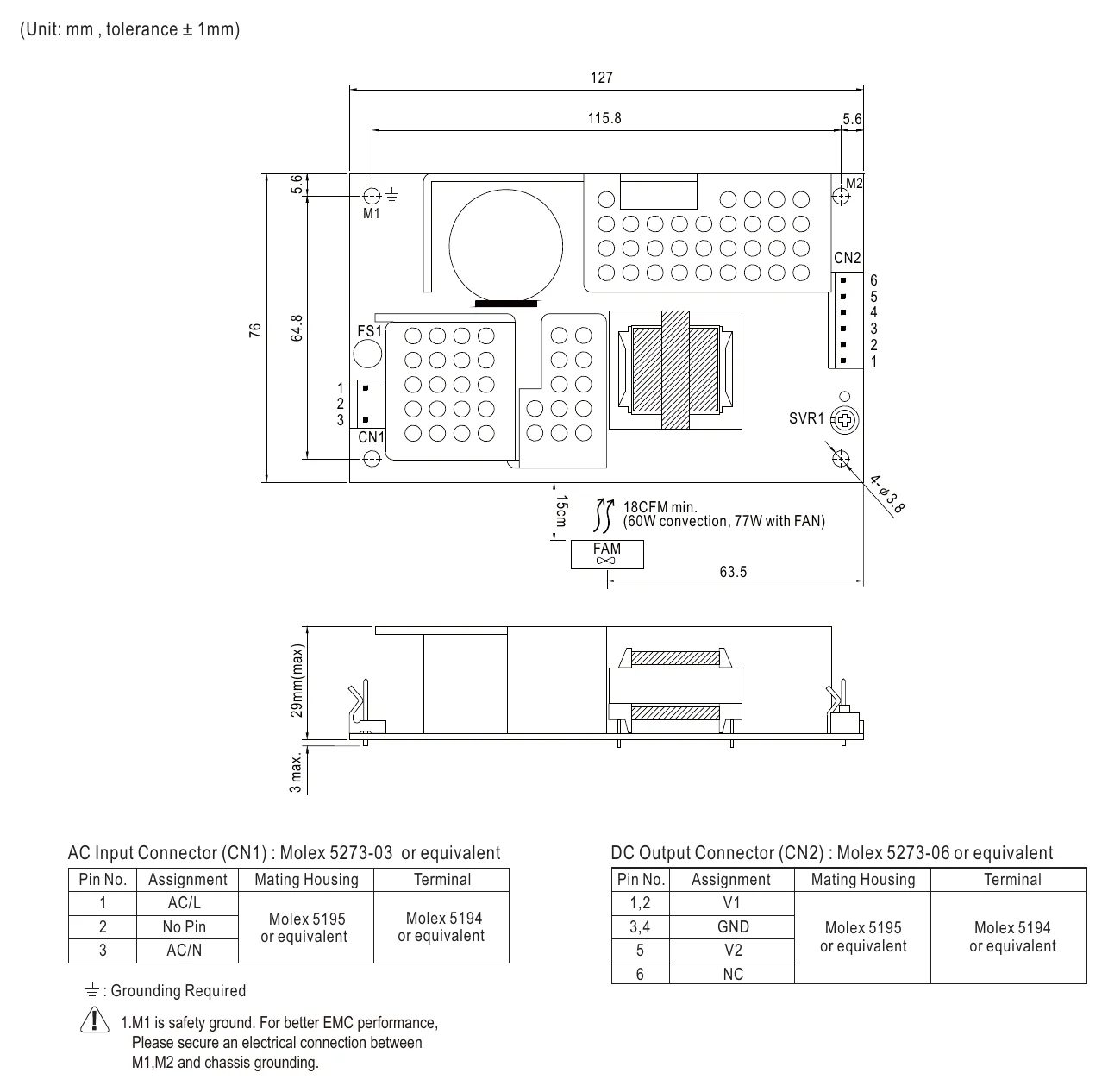

- 127*76*29mm (L*W*H)
- PACKING
- 0.24Kg; 63pcs/16Kg/1.28CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. 10% duty cycle maximum within every second. Average output power should not exceed the rated power, output voltage above 90% DC voltage.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

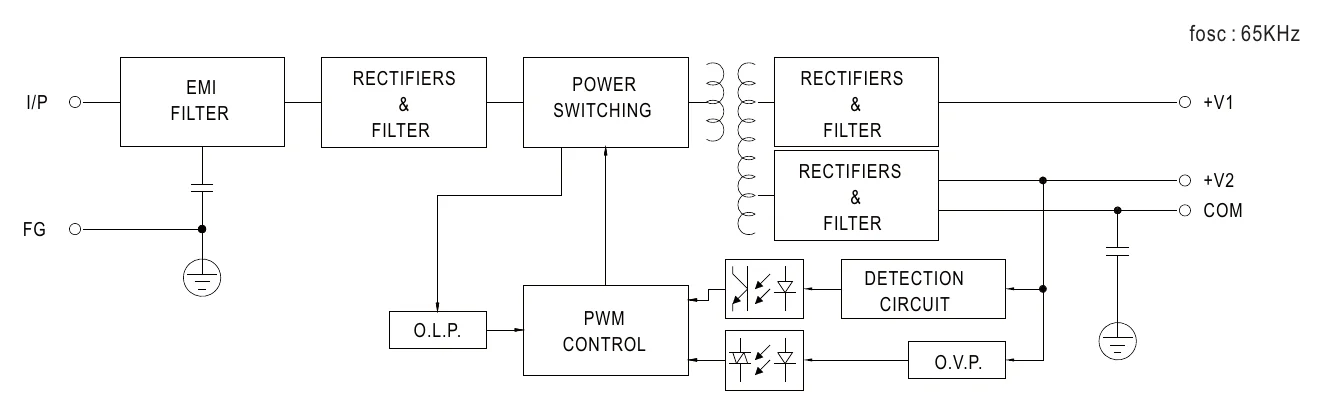

Technical drawings
Downloads
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the RPD-65C for 12V automation or industrial control electronics?
Yes, it can fit 12V automation and control electronics that need a constant voltage supply and stay within its 60W rating and 4.5A output current. The unit accepts 90-264VAC input and is built in a compact dual-output format.
Is the RPD-65C suitable for embedded systems that combine 5V logic and 12V loads?
It is named as a 5V 12V dual-output model, so it can fit embedded systems that need both voltage rails in one compact power section. The mechanical size is 127.0 × 76.0 × 29.0 mm with a listed weight of 0.24 kg.
Can the RPD-65C be used in medical or instrumentation equipment?
It is not certified for medical use. The listed safety standards are UL62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004, which are for IT/AV equipment, not medical devices. Its operating temperature range is -20°C to +60°C, and it features low leakage current (<1mA).
Is the RPD-65C designed for outdoor installation?
The listed environmental data covers operation from -20°C to +60°C, but no IP rating is provided. Based on the supplied specs alone, direct exposed outdoor use is not defined.
How does the RPD-65C compare with nearby RPD family models?
The RPD-65C is a 60W dual-output model (12V/5V). The RPD-65D is also 60W but provides 24V/5V outputs. Other models in the RPD series vary in wattage and voltage configurations, such as the RPD-75A (71W, 5V) and RPD-160B.
