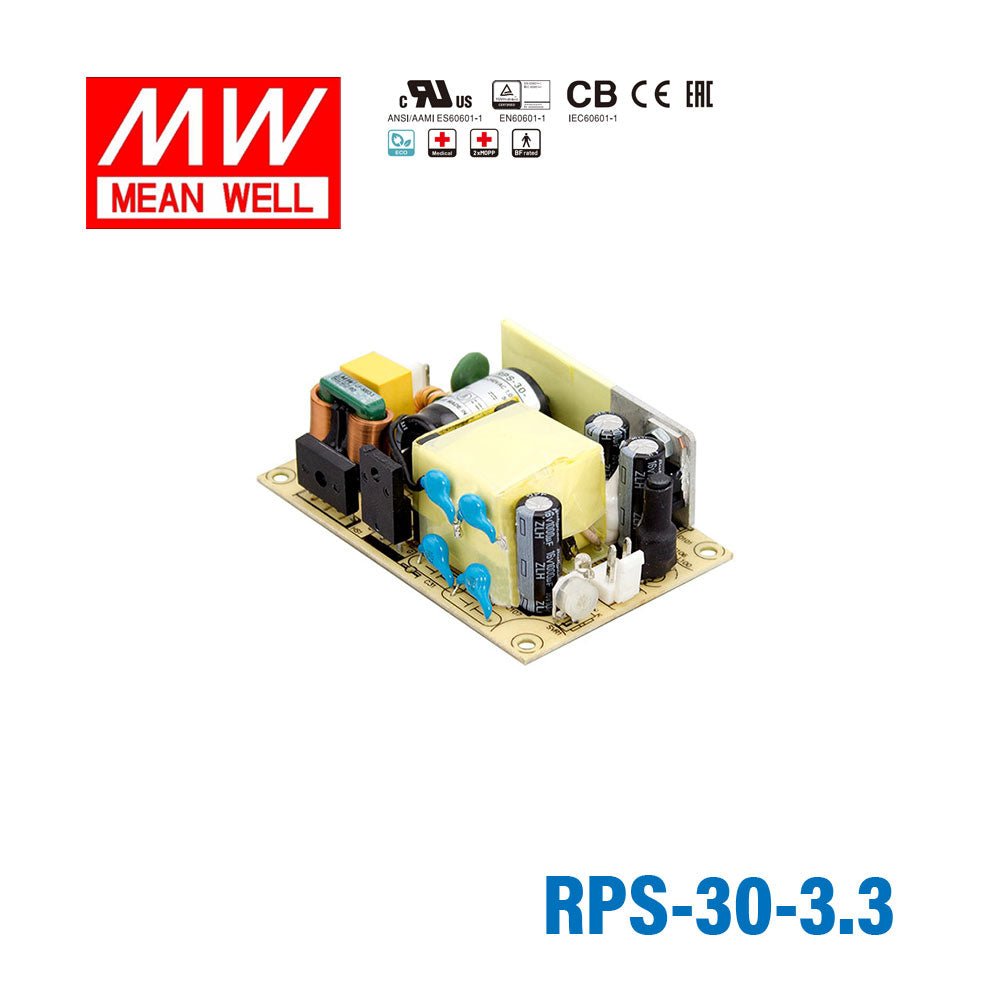

Mean Well RPS-30-3.3 Green Power Supply W 3.3V 6A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-30-3.3 Green Power Supply W 3.3V 6A - Medical Power S...
The RPS-30 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating19.8 Watt
-
Output Voltage3.3 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the RPS-30-3.3 for a 3.3V embedded controller or SBC?
Yes, this model is a constant-voltage 3.3V supply rated for up to 6A and 19.8W. It fits embedded boards, logic controllers, or industrial computing devices that require a regulated 3.3V rail and stay within that current and power limit.
Is the RPS-30-3.3 suitable for powering 3.3V sensors and control electronics in automation equipment?
It can be used for 3.3V automation electronics when the total load does not exceed 6A or 19.8W. That makes it better suited to low-voltage control sections, sensor groups, and embedded monitoring circuits than to higher-power field devices.
Can this power supply be used in medical or laboratory electronics that need a low-voltage DC rail?
Yes, the unit is described as a medical power supply and is medical safety approved. For lab or medical electronics that need 3.3V constant voltage, it provides up to 6A in a compact 76.2 × 50.8 × 24.0 mm package.
Is the RPS-30-3.3 meant for outdoor or washdown environments?
The operating temperature range is -30°C to +70°C, but no IP rating is listed in the provided specs. That means temperature capability is stated, while enclosure sealing against water or dust is not, so outdoor or washdown suitability is not defined by these specs.
How does the RPS-30-3.3 compare with the other RPS-30 models?
Within the RPS-30 group, the sibling outputs are RPS-30-5 at 30W, 5V, 6A; RPS-30-7.5 at 30W, 7.5V, 4A; RPS-30-12 at 30W, 12V, 2.5A; RPS-30-15 at 30W, 15V, 2A; RPS-30-24 at 30W, 24V, 1.25A; and RPS-30-48 at 30W, 48V, 0.62A. The RPS-30-3.3 is the lowest-voltage version and is rated at 19.8W with 3.3V output and 6A current.
