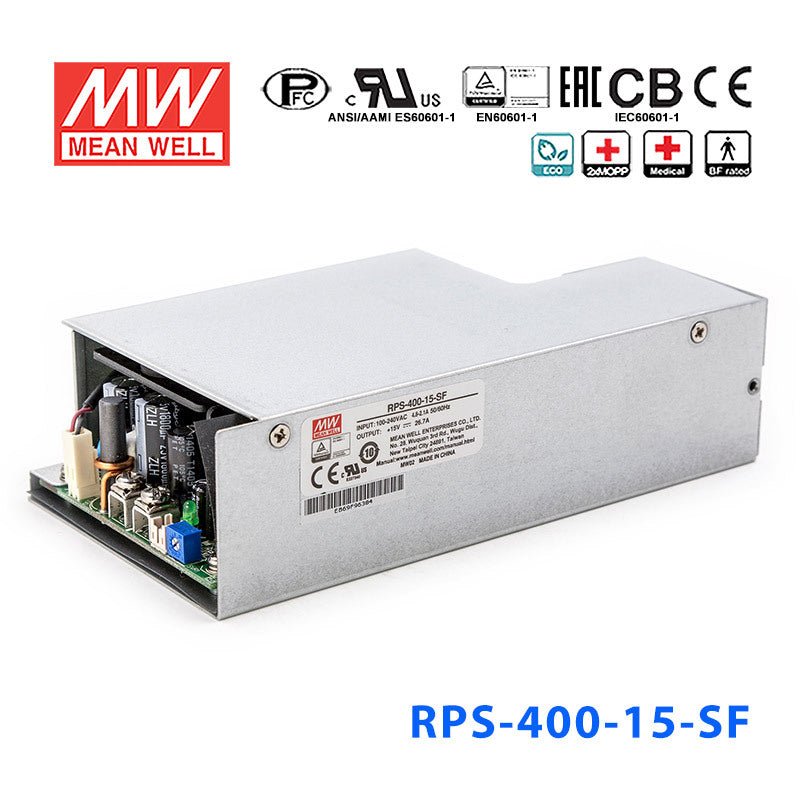

Mean Well RPS-400-15-SF Green Power Supply 400.5W 15V 16.7A - Medical Power Supply

Name: Mean Well RPS-400-15-SF Green Power Supply 400.5W 15V 16.7A - Medical Power Supply
Brand: Mean Well
SKU: RPS-400-15-SF
Price: 105.68 USD
Availability: InStock

5" x 3" compact sizemedical safety approvedextreme low leakage current

SKU RPS-400-15-SF

$105.68 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

RPS-400-15-SF is the 15V output model of this series: typical efficiency 92%.

RPS-400 is a 400W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. RPS-400 (blank type only) is able to be used for both ClassⅠ(with FG) or ClassⅡ(no FG) system design. The extremely low leakage current is less than 160μ A. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated "patient contact" medical system equipment. RPS-400 series also offers the enclosed style models( -C / TF /SF )

Features

5"×3" compact size
ANSI/AAMI ES60601-1, IEC/BS EN/EN 60601-1 (2 x MOPP) and IEC/EN/UL 62368-1 approved
Suitable for BF application with appropriate system configuration
250W convection,400W force air
EMI Class B for ClassⅠ& Class A for Class Ⅱ configuration
No load power consumption<0.5W by PS-ON control
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
Protections: Short circuit / Overload / Over voltage / Over temperature
Operating altitude up to 4000 meters
3 years warranty

Specifications

RPS-400-15-SFSpecifications from the official datasheet (2026-06-05 edition)

OUTPUT

DC VOLTAGE: 15V
CURRENT 25CFM: 26.7A
CURRENT Convection: 16.7A
RATED POWER 25CFM: 400.5W
RATED POWER Convection: 250.5W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE(main output ): 14.3~15.8V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 4.2A/115VAC 2.1A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT (max.)^Note.5: Earth leakage current <200μA/264VAC 50Hz , Touch current < 70μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 16.5 ~ 19.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5Vsb : 5V@0.6A without fan, 1A with fan 25CFM ; Tolerance ±2%, ripple : 120mVp-p(max.)
FAN SUPPLY: 12V@0.5A for driving fan ; Tolerance -15% ~+10% at main output 35% rated current (25CFM)
FAN CONTROL: Fan on by 20% load min. (For RPS-400-xxTF/SF)
PS-ON INPUT SIGNAL: Power on: PS-ON = "Hi" or " > 2 ~ 5V" ; Power off: PS-ON = "Low" or " < 0 ~ 0.5V"
POWER GOOD / POWER FAIL: 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal goes low at least 1ms before Vo below 90% of rated value

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 4000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, IEC 62368-1 only for RPS-400(Blank), TUV BS EN/ EN 60601-1:2006+A1+A12+A2,BS EN/EN 62368-1 only for RPS-400(Blank), ANSI/AAMI ES60601-1:2005+A2,CAN/CSA C22.2 No. 60601-1:2014+A2, UL 62368-1 only for RPS-400(Blank), EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32) only for RPS-400(Blank) Class B(Please see last page note1)
Radiated emission BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32) only for RPS-400(Blank) Class B(Please see last page note1)
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32) only for RPS-400(Blank)	Class B(Please see last page note1)
Radiated emission	BS EN/EN55011 (CISPR11), BS EN/EN55032(CISPR32) only for RPS-400(Blank)	Class B(Please see last page note1)
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 1393.3K hrs min. Telcordia SR-332 (Bellcore) ; 194.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION Type: RPS-400 RPS-400-C RPS-400-TF RPS-400-SF
DIMENSION L*W*H: 127*76.2*35mm 130*86*43mm 130*86*58.5mm 160*86*43mm 5″*3″*1.37″inch 5.11″*3.39″*1.69″inch 5.11″*3.39″*2.30″inch 6.3″*3.39″*1.69″inch
PACKING P.W.: 0.39Kg 0.51Kg 0.58Kg 0.64Kg
PACKING Q'TY: 36pcs 24pcs 24pcs 24pcs
PACKING G.W.: 15Kg 13.2Kg 14.9Kg 16.4Kg
PACKING M'MENT: 0.96CUFT 0.77CUFT 0.86CUFT 0.91CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. All the ClassⅠ(with FG) EMC tests are executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The ClassⅡ (without FG) EMC tests are executed by mounting the unit on a 130mm*86.6mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-400-15-SF R P S - 4 0 0 series — R P S - 4 0 0 series

RPS-400-15-SF R P S - 4 0 0 series (2) — R P S - 4 0 0 series (2)

RPS-400-15-SF Output Derating vs Input Voltage — Output Derating vs Input Voltage

RPS-400-15-SF With 25CFM fan — With 25CFM fan

RPS-400-15-SF RPS-400-C (Enclosed type) — RPS-400-C (Enclosed type)

RPS-400-15-SF Illustration (page 7) — Illustration (page 7)

RPS-400-15-SF Illustration (page 8) — Illustration (page 8)

Typical applications

Downloads

Certificates7

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well RPS-400-500-TUV Certificate PDF Download

Mean Well RPS-400-500-CB Certificate PDF Download

Mean Well RPS-400-EMC Certificate PDF Download

Mean Well RPS-400-UK-dec Certificate PDF Download

Mean Well RPS-400-CE-dec Certificate PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-400-15-SF for a 15V medical or lab device?

Yes, this is a 15V constant-voltage medical power supply rated for 26.7A and 400.5W with its built-in fan. It is suited to medical or laboratory equipment that requires a regulated 15V source and stays within that current and power range.

Is this power supply suitable for 15V industrial control equipment?

It can be a fit for industrial control electronics, automation subsystems, or test equipment that need 15V DC at up to 26.7A. The wide 80-264VAC input also helps when the equipment may be deployed across different AC mains environments.

Can the RPS-400-15-SF support a 15V embedded computing or instrumentation platform?

This model is designed for constant-voltage 15V output and provides up to 400.5W with its built-in fan, so it can support higher-draw embedded platforms or instrumentation racks. Buyers typically use this class when the combined 15V load approaches 26.7A.

Would this work for a 15V automation or monitoring cabinet with multiple loads?

It can, provided the cabinet uses 15V DC and the total demand remains within 26.7A and 400.5W. Its compact 160.0 x 86.0 x 43.0 mm size is useful when fitting higher-power 15V capacity into a dense enclosure.

Is the RPS-400-15-SF appropriate for outdoor or harsh exposed environments?

This model has an operating temperature range of -30C to +70C, but no IP rating is listed in the provided specs. That usually makes it a better match for protected indoor equipment or enclosed systems rather than exposed outdoor locations.

How does the RPS-400-15-SF compare with other 15V models in the RPS series?

This sheet lists four 15V versions: RPS-400-15 (PCB type), RPS-400-15-C (enclosed), RPS-400-15-TF (fan on top) and RPS-400-15-SF (fan on side). The RPS-400-15 and -C deliver 250.5W at 16.7A by convection or 400.5W at 26.7A with 25CFM forced air, while the TF and SF are rated 400.5W at 26.7A with their built-in fan. The SF version measures 160 x 86 x 43 mm.
