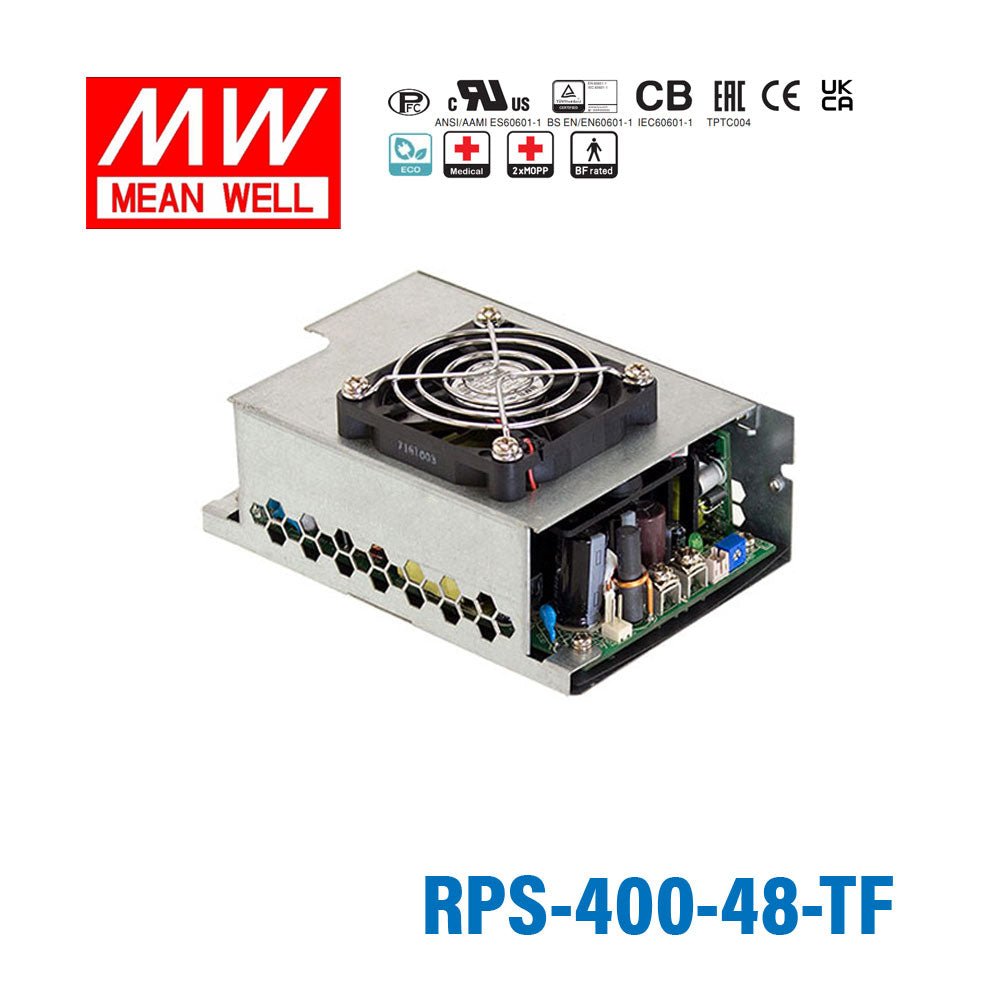

Mean Well RPS-400-48-TF Green Power Supply W 48V 5.3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-400-48-TF Green Power Supply W 48V 5.3A - Medical Pow...
The RPS-400-48 is a 400W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, EAC TP TC 004 , UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating254.4 Watt
-
Output Voltage48 Volt
-
Rated Current5.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can I use the RPS-400-48-TF for a 48V factory automation or process control load?
Yes, it is a constant voltage 48V model rated for 5.3A and 254.4W. It is appropriate for 48V automation or control equipment when the total draw does not exceed 5.3A or 254.4W.
Is the RPS-400-48-TF suitable for 48V embedded systems or communications hardware?
It can suit embedded or communications equipment that requires a constant 48V source. The output capacity is 48V at up to 5.3A, with a total available power of 254.4W.
Can this unit power a 48V medical electronics platform?
This product is identified as a medical power supply and includes medical safety approval plus extreme low leakage current. The connected platform must still be designed for 48V constant voltage and remain within the 5.3A, 254.4W output rating.
Is the RPS-400-48-TF appropriate when I need more 48V capacity than 120W, 144W, or 200.2W models provide?
Yes, this version is rated at 254.4W and 5.3A at 48V, so it offers more 48V output capacity than the 120W, 144W, and 200.2W members of the same family. It is a better fit when the load exceeds those lower 48V power levels but still needs a constant voltage output.
Is the RPS-400-48-TF for indoor only, or can it be used outdoors?
The temperature specification is -30°C to +70°C, which supports operation across a broad thermal range. However, no IP rating is provided in the listed specs, so the product information does not confirm outdoor exposure suitability.
What are the main output differences between the RPS-400-48-TF and other RPS-400 versions?
The RPS-400 family includes 12V 20.8A 249.6W, 15V 16.7A 250.5W, 18V 13.9A 250.2W, 24V 10.5A 252W, 27V 9.3A 251.1W, 36V 7A 252W, and 48V 5.3A 254.4W options. The RPS-400-48-TF is the 48V, 5.3A, 254.4W member of that group.
